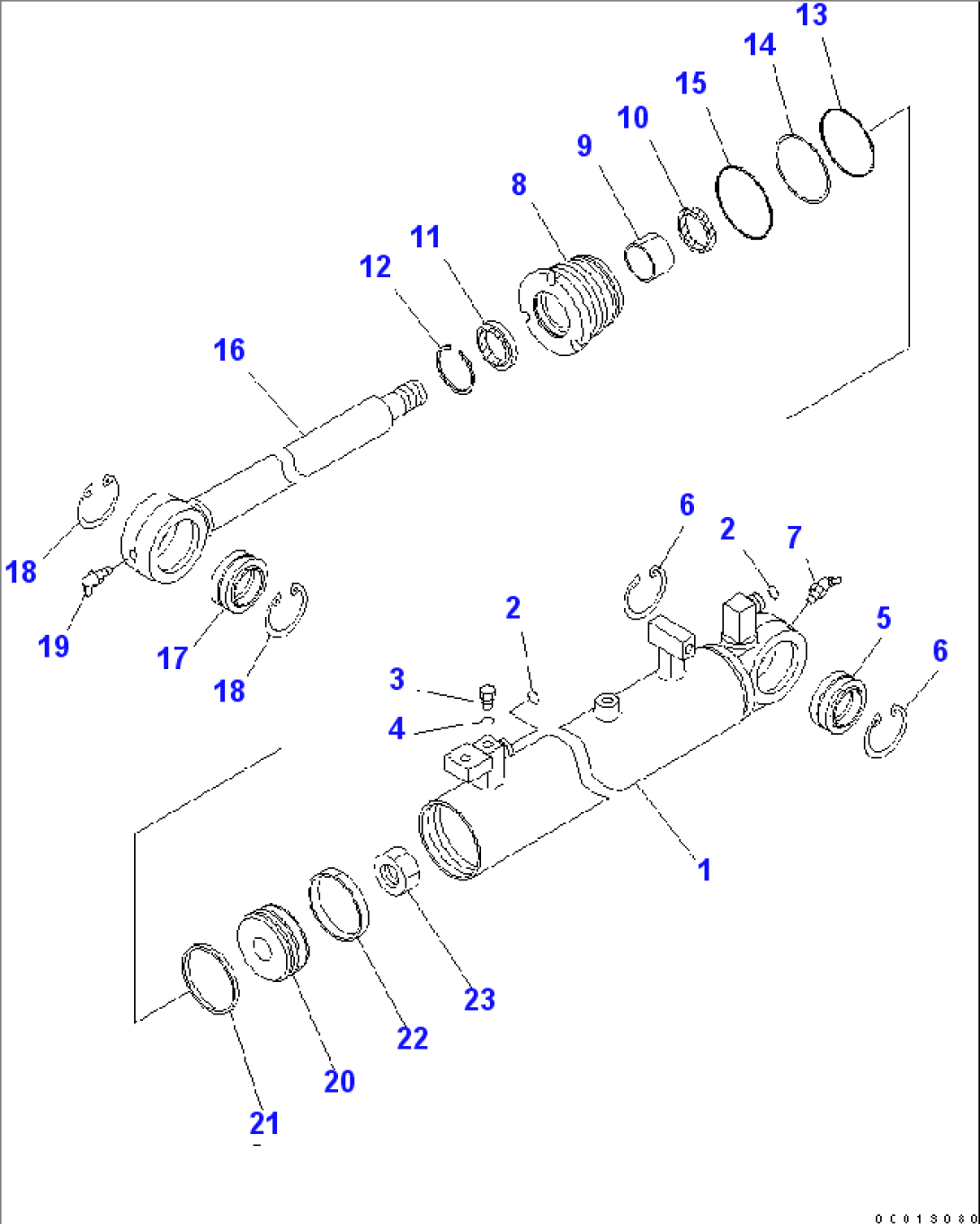

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-0E920 | CYLINDER ASS'Y,ANGLE | 90001- | ||
| 1 | 721-11-70860 | CYLINDER | 90001- | |
| 2 | 02896-11009 | O-RING (KIT) | 90001- | |
| 3 | 07040-11007 | PLUG | 90001- | |
| 4 | 07002-11023 | O-RING (KIT) | 90001- | |
| 5 | 707-76-35010 | BUSHING | 90001- | |
| 6 | 04065-05520 | RING,SNAP | 90001- | |
| 7 | 07020-00675 | FITTING,GREASE | 90001- | |
| 8 | 707-29-70821 | HEAD,CYLINDER | 90001- | |
| 9 | 07177-03525 | BUSHING | 90001- | |
| 10 | 707-51-35210 | PACKING,ROD (KIT) | 90001- | |
| 11 | 175-63-75190 | SEAL,DUST (KIT) | 90001- | |
| 12 | 07179-12047 | RING,SNAP | 90001- | |
| 13 | 07000-12065 | O-RING (KIT) | 90001- | |
| 14 | 07146-02066 | RING,BACK-UP (KIT) | 90001- | |
| 15 | 07000-12070 | O-RING (KIT) | 90001- | |
| 16 | 721-58-35420 | ROD,PISTON | 90001- | |
| 17 | 707-76-35010 | BUSHING | 90001- | |
| 18 | 04065-05520 | RING,SNAP | 90001- | |
| 19 | 07020-00900 | FITTING,GREASE | 90001- | |
| 20 | 707-36-70930 | PISTON | 90001- | |
| 21 | 707-44-70070 | RING,PISTON (KIT) | 90001- | |
| 22 | 07156-00710 | RING,WEAR (KIT) | 90001- | |
| 23 | 707-67-24010 | NUT | 90001- | |
| SERVICE KIT | ||||
| K | 707-98-12750 | SERVICE KIT | 90001- |
