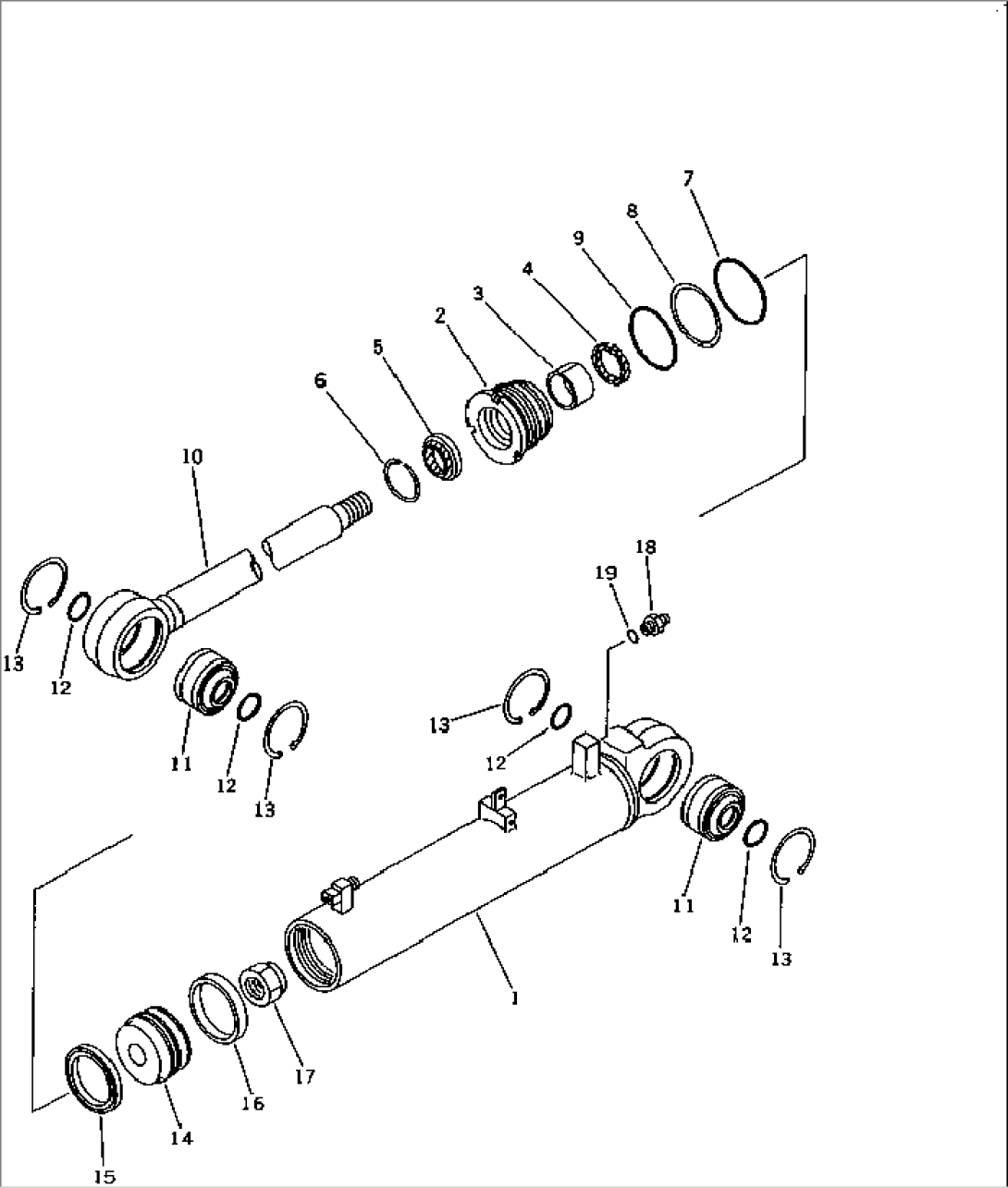

| Item | Part No. | Part Name | Qty | Serial No. |
| 13F-63-02110 | CYLINDER ASS'Y,BLADE ANGLE | 81285- | ||
| 1 | 13F-63-55240 | CYLINDER | 81285- | |
| 2 | 707-29-12930 | HEAD,CYLINDER | 81285- | |
| 3 | 07177-06030 | BUSHING | 81285- | |
| 4 | 707-51-60210 | PACKING,ROD | 81285- | |
| 5 | 07016-20608 | SEAL,DUST | 81285- | |
| 6 | 07179-12074 | RING,SNAP | 81285- | |
| 7 | 07000-12115 | O-RING | 81285- | |
| 8 | 707-35-91200 | RING,BACK-UP | 81285- | |
| 9 | 07000-02120 | O-RING | 81285- | |
| 10 | 13F-63-55220 | ROD,PISTON | 81285- | |
| 11 | 07137-04507 | BUSHING | 81285- | |
| 11 | 07137-00050 | SEAL,DUST | 81285- | |
| 12 | 07000-03045 | O-RING | 81285- | |
| 13 | 04065-01030 | RING,SNAP | 81285- | |
| 14 | 707-36-12930 | PISTON | 81285- | |
| 15 | 07161-10120 | RING,PISTON | 81285- | |
| 16 | 07156-01215 | RING,WEAR | 81285- | |
| 17 | 07165-13941 | NUT | 81285- | |
| 18 | 07230-20422 | UNION | 81285- | |
| 19 | 07002-12034 | O-RING | 81285- |
