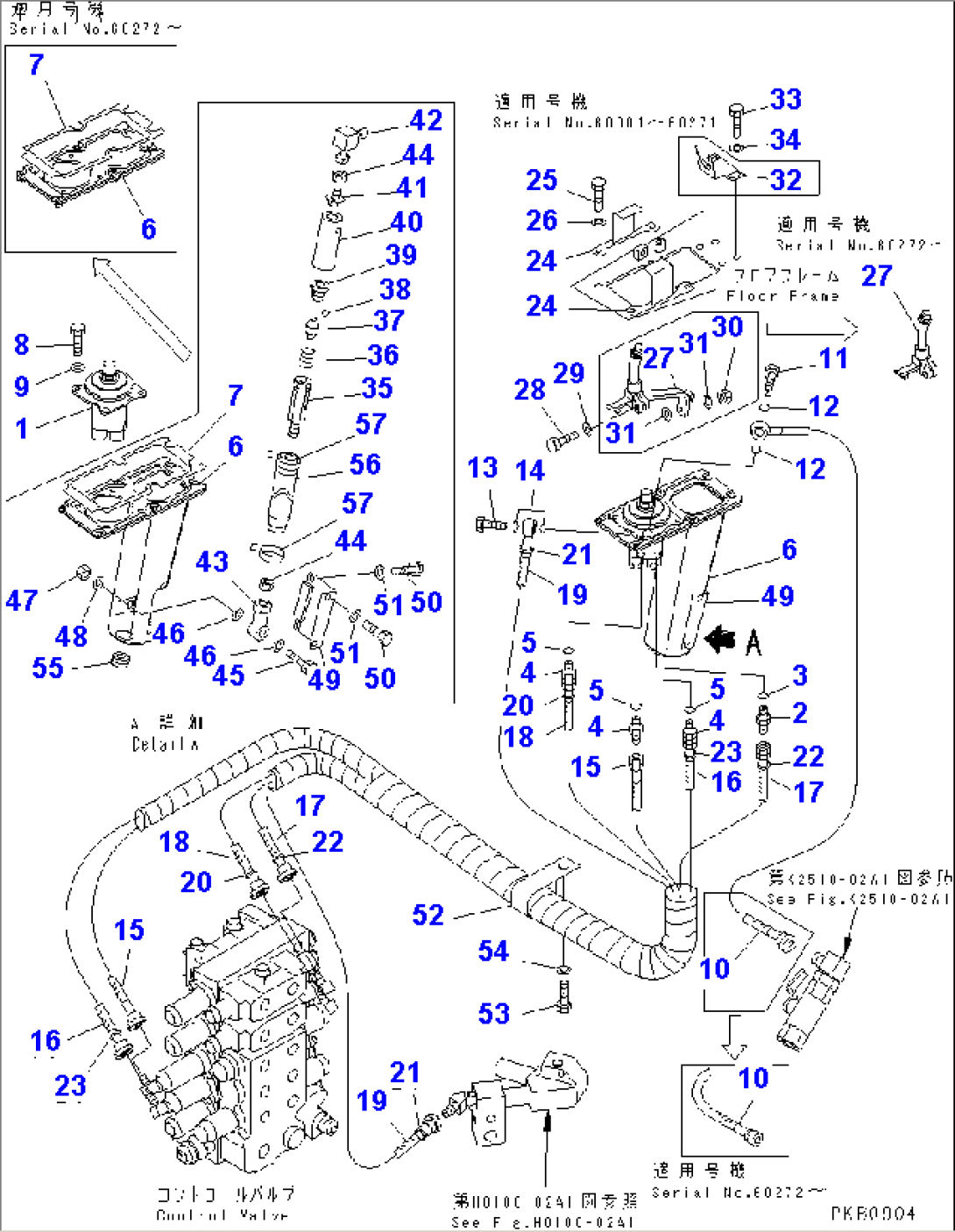

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 702-16-01450 | PILOT VALVE | 60272-@ | |
| 1 | 702-16-01200 | PILOT VALVE | 60001-60271 | |
| 2 | 205-62-74630 | NIPPLE | 60001-@ | |
| 3 | 07002-11423 | O-RING | 60001-@ | |
| 4 | 205-62-55270 | NIPPLE | 60001-@ | |
| 5 | 07002-11423 | O-RING | 60001-@ | |
| 6 | 17A-43-15132 | BRACKET | 60272-60478 | |
| 6 | 17A-43-15131 | BRACKET | 60001-60271 | |
| 7 | 14X-43-14320 | SHEET (BONDED) | 60001-60478 | |
| 8 | 01010-80825 | BOLT | 60004-@ | |
| 8 | 01010-80830 | BOLT | 60001-60003 | |
| 9 | 01643-30823 | WASHER | 60001-@ | |
| 10 | 17A-61-16230 | HOSE | 60272-@ | |
| 10 | 17A-61-16221 | HOSE | 60001-60271 | |
| 11 | 702-16-53240 | PLUG | 60001-@ | |
| 12 | 07000-12018 | O-RING | 60001-@ | |
| 13 | 203-62-57730 | BOLT | 60001-@ | |
| 14 | 07000-12018 | O-RING | 60001-@ | |
| 17A-61-16241 | HOSE ASS'Y | 60001-@ | ||
| 15 | 17A-61-17130 | HOSE | 60001-@ | |
| 16 | 17A-61-17140 | HOSE | 60001-@ | |
| 17 | 17A-61-17170 | HOSE | 60001-@ | |
| 18 | 17A-61-17190 | HOSE | 60001-@ | |
| 19 | 17A-61-16261 | HOSE | 60001-@ | |
| 20 | 20Y-62-22810 | BAND, YELLOW | 60001-@ | |
| 21 | 20Y-62-22820 | BAND, BLUE | 60001-@ | |
| 22 | 20Y-62-22840 | BAND, BLACK | 60001-@ | |
| 23 | 20Y-62-22850 | BAND, GREEN | 60001-@ | |
| 24 | 17A-43-15221 | PLATE | 60001-@ | |
| 25 | 01010-80830 | BOLT | 60001-60478 | |
| 26 | 01643-30823 | WASHER | 60001-60478 | |
| 27 | 195-43-48210 | LEVER | 60272-@ | |
| 27 | 17A-43-15181 | LEVER,R.H. | 60001-60271 | |
| 28 | 01010-81030 | BOLT | 60001-@ | |
| 29 | 01643-31032 | WASHER | 60001-@ | |
| 30 | 01580-10806 | NUT | 60001-60271 | |
| 31 | 01643-30823 | WASHER | 60001-60271 | |
| 32 | 17A-43-15171 | PLATE | 60001-60271 | |
| 33 | 01010-81025 | BOLT | 60001-60478 | |
| 34 | 01643-31032 | WASHER | 60001-60478 | |
| 35 | 17A-43-15241 | ROD | 60001-60271 | |
| 36 | 700-20-51350 | SPRING | 60001-60271 | |
| 37 | 17A-43-15261 | GUIDE | 60001-60271 | |
| 38 | 04260-00635 | BALL | 60001-60271 | |
| 39 | 709-32-12760 | PLUG | 60001-60271 | |
| 40 | 17A-43-15231 | DETENT | 60001-60271 | |
| 41 | 14X-43-14231 | PLUG | 60001-60271 | |
| 42 | 04256-00820 | JOINT | 60001-60271 | |
| 43 | 04250-80847 | END,ROD | 60001-60271 | |
| 44 | 01580-10806 | NUT | 60001-60271 | |
| 45 | 01010-80835 | BOLT | 60001-60271 | |
| 46 | 04254-10823 | SPACER | 60001-60271 | |
| 47 | 01580-10806 | NUT | 60001-60271 | |
| 48 | 01643-30823 | WASHER | 60001-60271 | |
| 49 | 17A-43-15141 | COVER | 60001-60271 | |
| 50 | 01010-80820 | BOLT | 60001-60271 | |
| 51 | 01643-30823 | WASHER | 60001-60271 | |
| 52 | 04434-53212 | CLIP | 60001-@ | |
| 53 | 01010-81225 | BOLT | 60001-@ | |
| 54 | 01643-31232 | WASHER | 60001-@ | |
| 55 | 09415-02512 | CAP | 60001-60271 | |
| 56 | 14X-43-14270 | COVER | 60001-60271 | |
| 57 | 08034-00414 | BAND | 60001-60271 |
