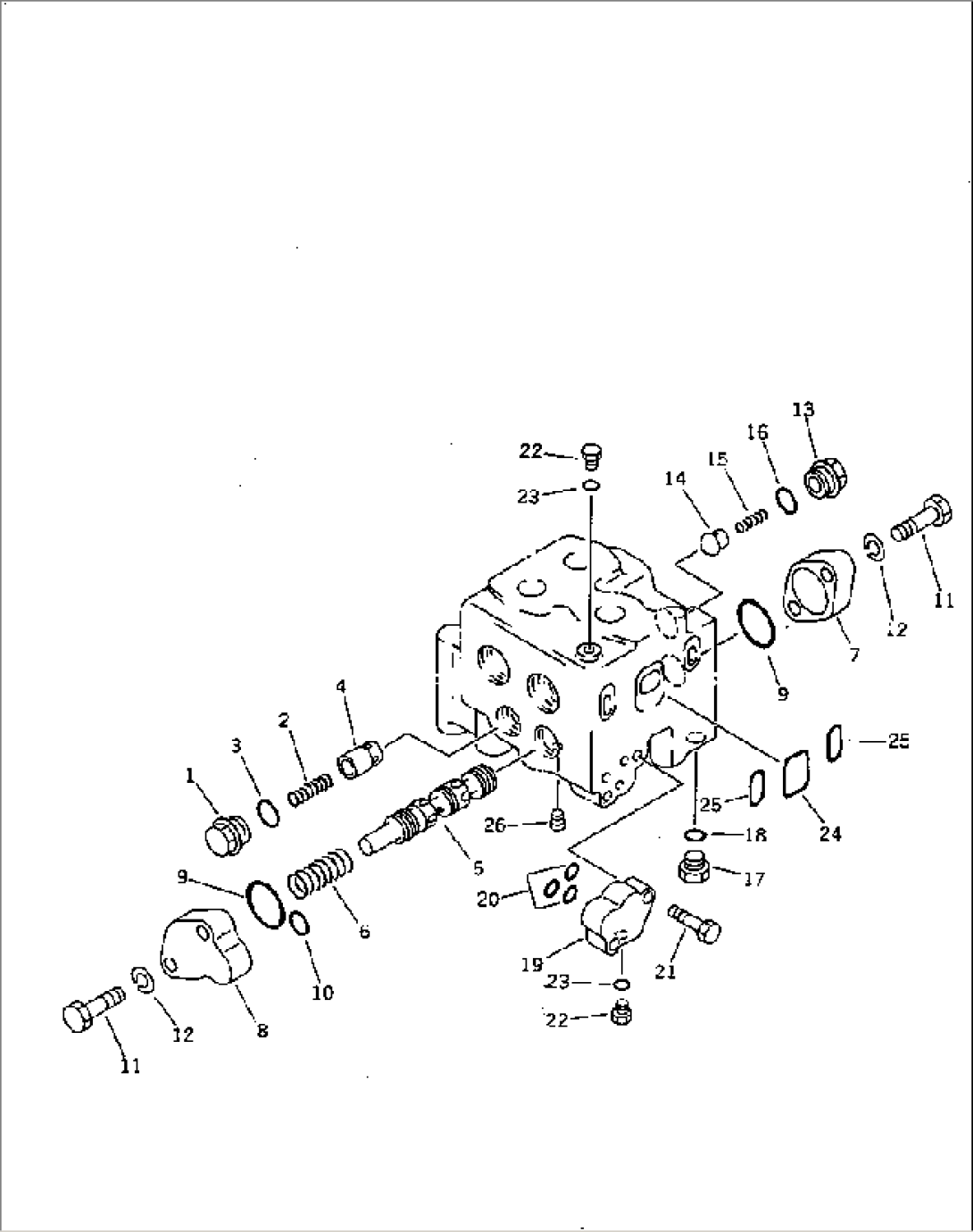

| Item | Part No. | Part Name | Qty | Serial No. |
| (709-62-31103) | VALVE ASS'Y | 35001- | ||
| (\2\709-62-31102) | VALVE ASS'Y | (36019-36344) | ||
| (\2\709-62-31101) | VALVE ASS'Y | (35001-36018) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201 TO 6205. | ||||
| (709-62-00031) | VALVE SUB ASS'Y | 35001- | ||
| (\2\709-62-00030) | VALVE SUB ASS'Y | (35001-36344) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6202 AND 6203. | ||||
| 1 | 700-22-11370 | PLUG | 35001- | |
| 2 | 701-13-31130 | SPRING | 35001- | |
| 3 | 07002-12434 | O-RING | 35001- | |
| 4 | 701-13-31120 | VALVE | 35001- | |
| 5 | \6\ | SPOOL | 35001- | |
| 6 | 709-62-31260 | SPRING | 35001- | |
| 7 | 709-62-31310 | PLATE | 35001- | |
| 8 | 709-62-31320 | PLATE | 35001- | |
| 9 | 07000-13038 | O-RING | 35001- | |
| 10 | 07000-02021 | O-RING | 35001- | |
| 11 | 01010-51245 | BOLT | 35001- | |
| 12 | 01602-21236 | WASHER | 35001- | |
| 13 | 709-62-31240 | PLUG | 35001- | |
| 14 | 700-22-11340 | VALVE,CHECK | 35001- | |
| 15 | 709-20-51270 | SPRING | 35001- | |
| 16 | 07002-12434 | O-RING | 35001- | |
| 17 | 07040-11612 | PLUG | 36345- | |
| 17 | 07040-11812 | PLUG | 35001-36344 | |
| 18 | 07002-11623 | O-RING | 36345- | |
| 18 | 07002-11823 | O-RING | 35001-36344 | |
| 19 | 709-62-31271 | PLATE | 35001- | |
| 20 | 07000-12015 | O-RING | 35001- | |
| 21 | 01010-51040 | BOLT | 35001- | |
| 22 | 07040-11007 | PLUG | 35001- | |
| 23 | 07002-11023 | O-RING | 35001- | |
| 24 | 07000-13040 | O-RING | 35001- | |
| 25 | 709-62-31280 | O-RING | 35001- | |
| 26 | \6\ | PLUG | 35001- |
