| Item | Part No. | Part Name | Qty | Serial No. |
| (709-62-31301) | VALVE ASS'Y | 3651- | ||
| (\0\709-62-31300) | VALVE ASS'Y | 3513-3650 | ||
| (709-62-31103) | VALVE ASS'Y | 3001-3512 | ||
| (\2\709-62-31101) | VALVE ASS'Y | (3001-3512) | ||

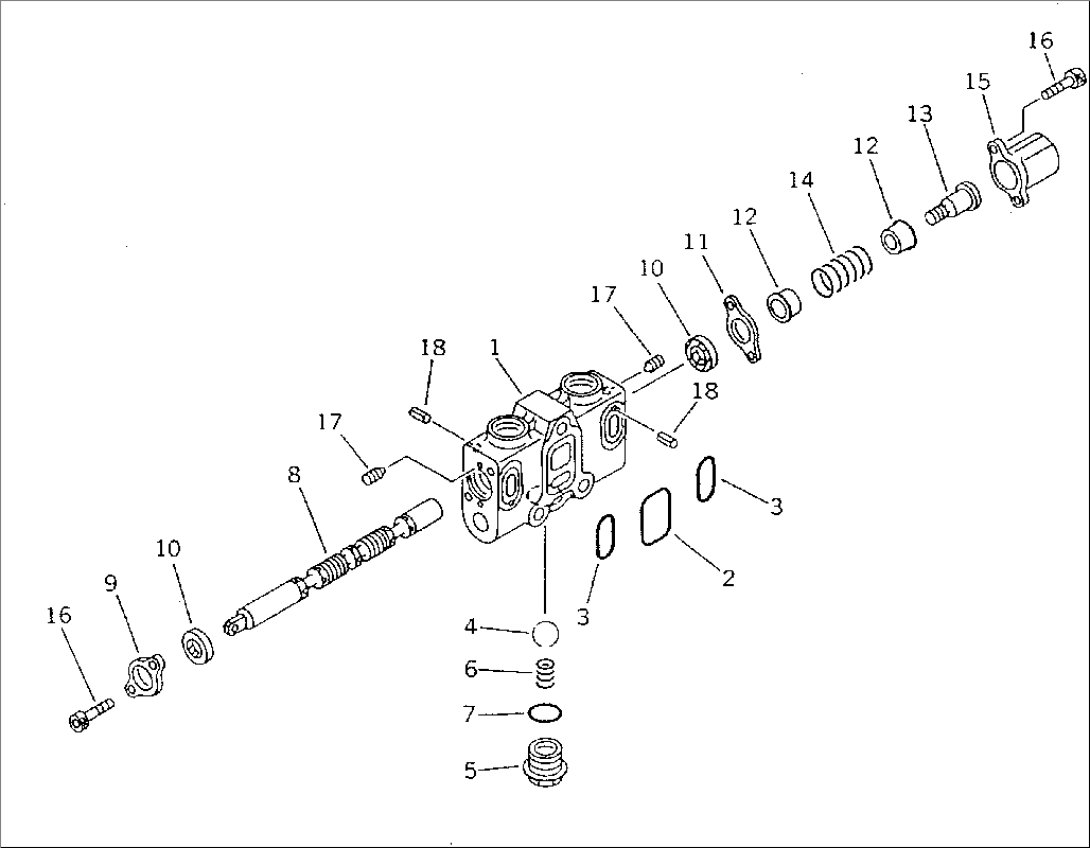

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6211 TO 6215. | ||||
| 709-62-00020 | BODY SUB ASS'Y | 3001- | ||
| 1 | \6\ | BLOCK,VALVE | 3001- | |
| 2 | 07000-13040 | O-RING | 3001- | |
| 3 | 709-62-31280 | O-RING | 3001- | |
| 4 | 700-22-12340 | BALL | 3001- | |
| 5 | 700-22-11351 | PLUG | 3001- | |
| 6 | 700-22-12350 | SPRING | 3001- | |
| 7 | 07002-12434 | O-RING | 3001- | |
| 8 | \6\ | SPOOL | 3001- | |
| 9 | 709-25-11320 | PLATE | 3001- | |
| 10 | 709-25-11290 | SEAL | 3001- | |
| 11 | 709-25-11310 | PLATE | 3001- | |
| 12 | 700-22-11291 | RETAINER | 3001- | |
| 13 | 700-22-11321 | PLUG | 3001- | |
| 14 | 700-23-13130 | SPRING | 3001- | |
| 15 | 700-22-11332 | COVER | 3001- | |
| (\2\700-22-11331) | COVER | (3001-3512) | ||
| 16 | 01252-30616 | BOLT | 3001- | |
| 17 | 706-86-51170 | PLUG | 3001- | |
| 18 | 04025-00308 | PIN,SPRING | 3001- |
