| Item | Part No. | Part Name | Qty | Serial No. |

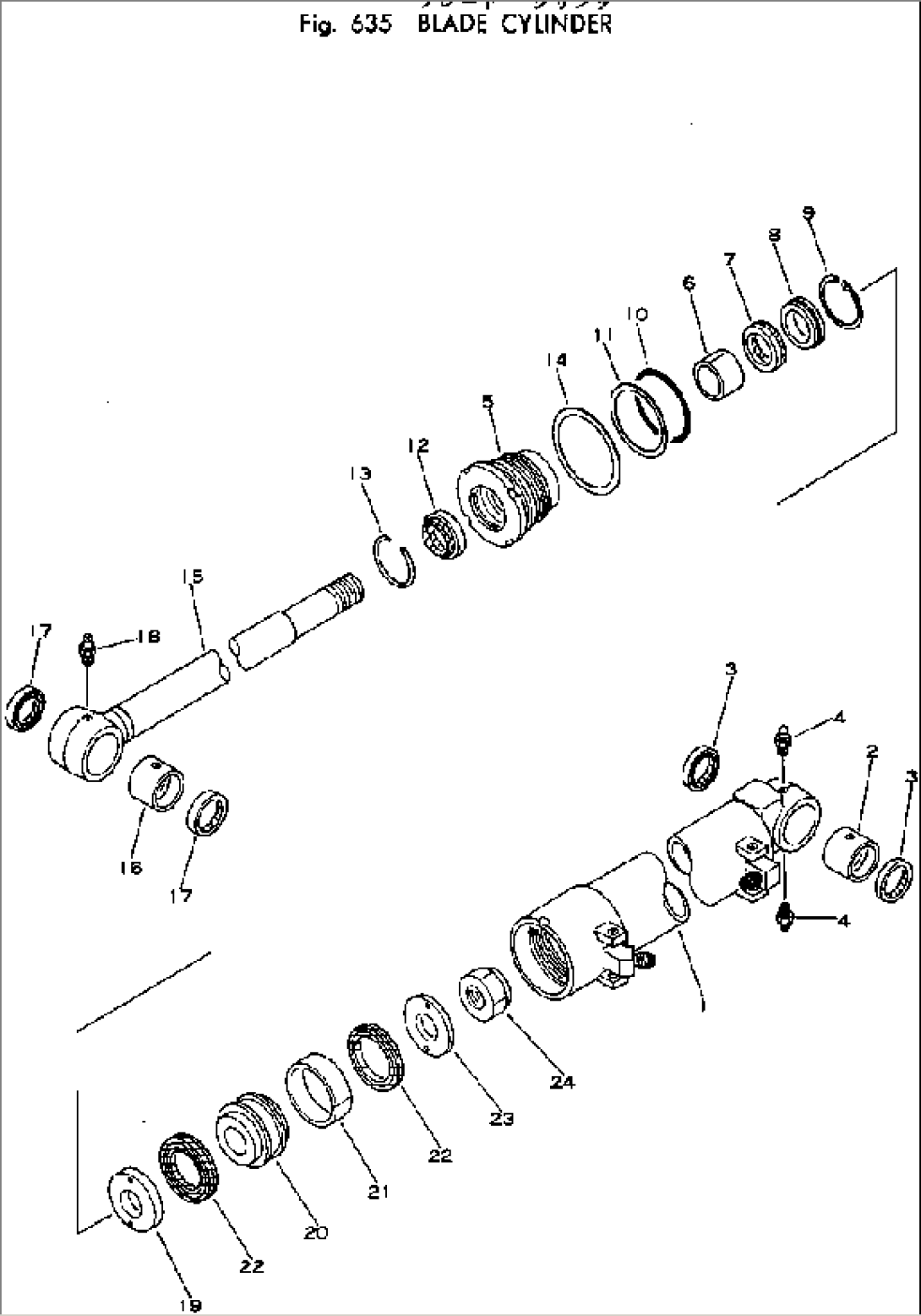

| 20R-63-96101 | CYLINDER ASS'Y | 3501- | ||
| 1 | 20R-63-96140 | CYLINDER | 3501- | |
| 2 | 07144-10304 | BUSHING | 3501- | |
| 3 | 07145-00035 | SEAL,DUST | 3501- | |
| 4 | 07020-00000 | FITTING,GREASE | 3501- | |
| 5 | 707-29-70010 | HEAD,CYLINDER | 3501- | |
| 6 | 07177-03525 | BUSHING | 3501- | |
| 7 | 707-51-35110 | PACKING,ROD | 3501- | |
| 8 | 707-57-35010 | RETAINER | 3501- | |
| 9 | 04065-05520 | RING,SNAP | 3501- | |
| 10 | 07000-12075 | O-RING | 3501- | |
| 11 | 07001-02075 | RING,BACK-UP | 3501- | |
| 12 | 175-63-75190 | SEAL,DUST | 3501- | |
| 13 | 07179-00054 | RING,SNAP | 3501- | |
| 14 | 707-45-70010 | WASHER | 3501- | |
| 15 | 20R-63-96120 | ROD,PISTON | 3501- | |
| 16 | 07144-10304 | BUSHING | 3501- | |
| 17 | 07145-00035 | SEAL,DUST | 3501- | |
| 18 | 07020-00000 | FITTING | 3501- | |
| 19 | 10E-63-66270 | RETAINER | 3501- | |
| 20 | 10E-63-66170 | PISTON | 3501- | |
| 21 | 07155-00720 | RING | 3501- | |
| 22 | 112-63-12462 | PACKING | 3501- | |
| 23 | 10E-63-66280 | RETAINER | 3501- | |
| 24 | 07165-12729 | NUT | 3501- |
