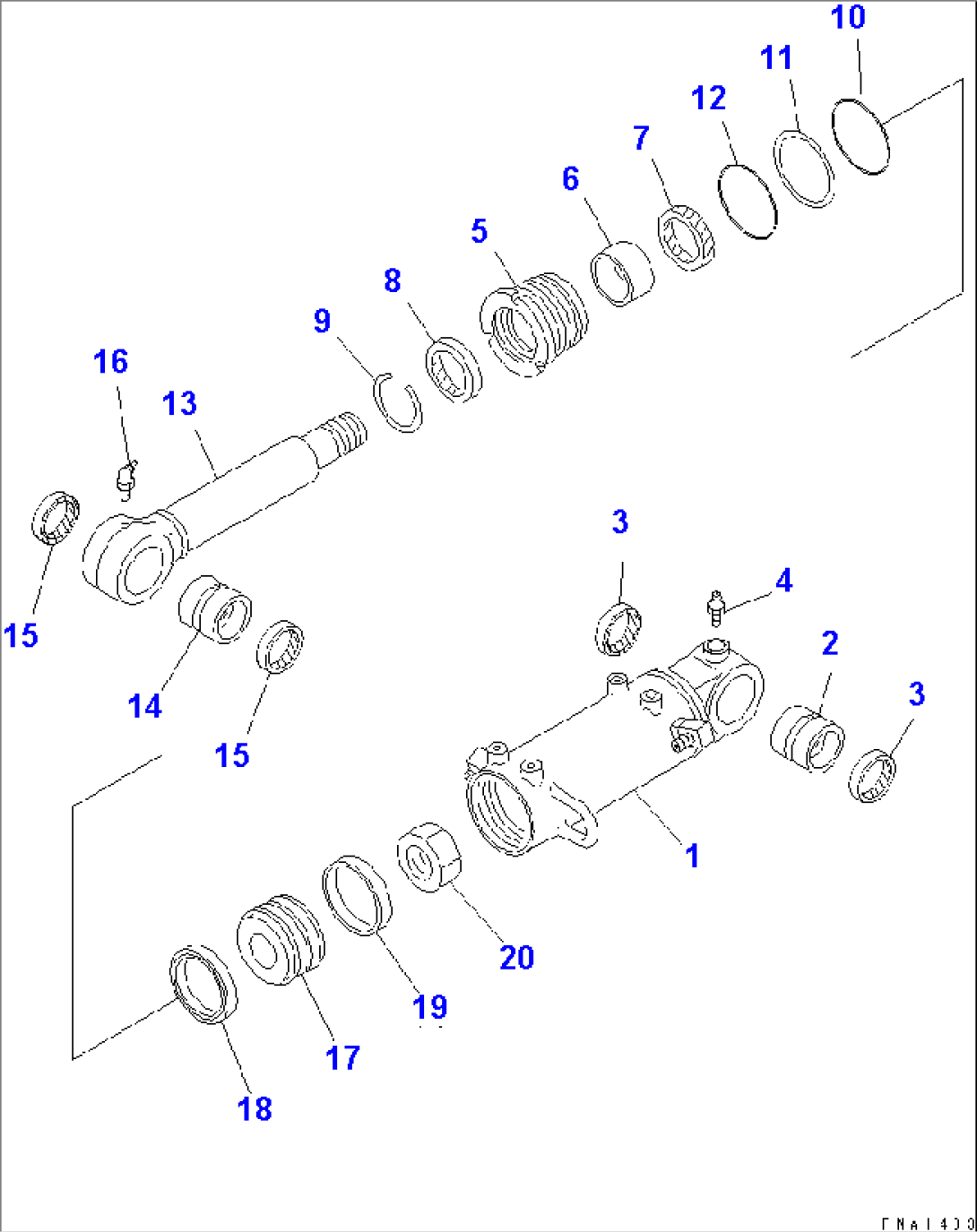

| Item | Part No. | Part Name | Qty | Serial No. |
| 20U-63-02271 | BLADE CYLINDER ASS'Y | 12800- | ||
| 20U-63-02270 | BLADE CYLINDER ASS'Y | 10835-12799 | ||
| 1 | 20U-63-97140 | CYLINDER,BLADE | 10835- | |
| 2 | 707-76-55450 | BUSHING | 12800- | |
| 2 | 707-56-55160 | BUSHING | 10835-12799 | |
| 3 | 07145-00055 | SEAL,DUST (KIT) | 10835- | |
| 4 | 07020-00000 | FITTING,GREASE | 10835- | |
| 5 | 707-29-10420 | HEAD,CYLINDER | 10835- | |
| 6 | 07177-05030 | BUSHING | 10835- | |
| 7 | 707-51-50211 | PACKING,ROD (KIT) | 10835- | |
| 8 | 176-63-92240 | SEAL,DUST (KIT) | 10835- | |
| 9 | 07179-12062 | RING,SNAP | 10835- | |
| 10 | 07000-12100 | O-RING (KIT) | 10835- | |
| 11 | 707-35-52360 | RING,BACK-UP (KIT) | 10835- | |
| 12 | 07000-02105 | O-RING (KIT) | 10835- | |
| 13 | 20T-63-97121 | ROD,PISTON | 10835- | |
| 14 | 707-76-55430 | BUSHING | 12800- | |
| 14 | 07144-10506 | BUSHING | 10835-12799 | |
| 15 | 07145-00055 | SEAL,DUST (KIT) | 10835- | |
| 16 | 07020-00675 | FITTING,GREASE | 10835- | |
| 17 | 707-36-10630 | PISTON | 10835- | |
| 18 | 707-44-10280 | RING,PISTON (KIT) | 10835- | |
| 19 | 707-39-10510 | RING,WEAR (KIT) | 10835- | |
| 20 | 01580-03629 | NUT | 10835- |
