| Item | Part No. | Part Name | Qty | Serial No. |

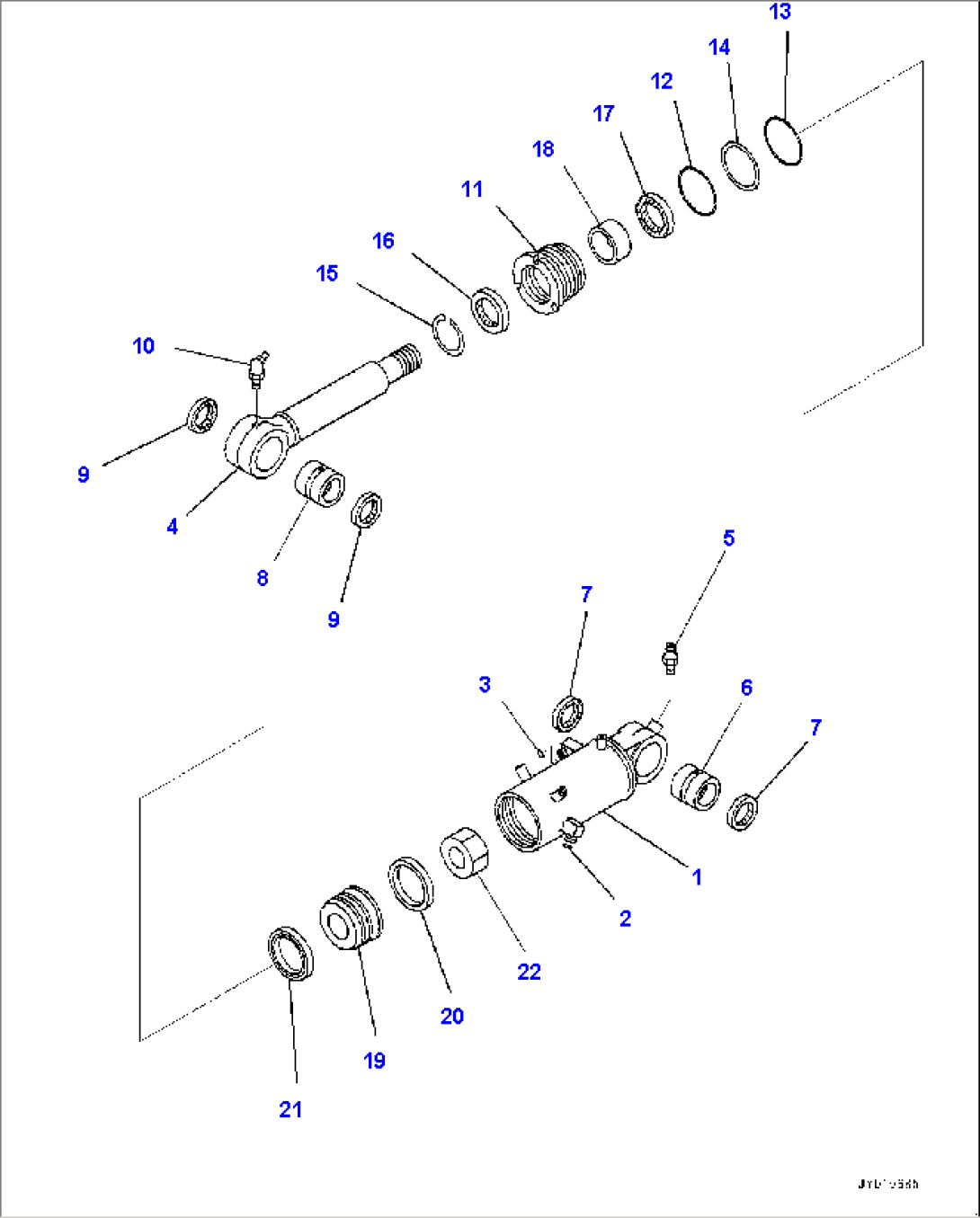

| 707-00-0H780 | Cylinder Assembly | | 5001- |
| 1 | 707-11-13820 | Cylinder | | 5001- |
| 2 | 02896-11009 | O-ring, (Kit : K09) | | 5001- |
| 3 | 02896-11012 | O-ring, (Kit : K09) | | 5001- |
| 4 | 707-58-65700 | Rod, Piston | | 5001- |
| 5 | 07020-00000 | Fitting, Grease | | 5001- |
| 6 | 707-76-70671 | Bushing | | 5001- |
| 7 | 07145-00070 | Seal, Dust, (Kit : K09) | | 5001- |
| 8 | 707-76-70671 | Bushing | | 5001- |
| 9 | 07145-00070 | Seal, Dust, (Kit : K09) | | 5001- |
| 10 | 07020-00675 | Fitting, Grease | | 5001- |
| 11 | 707-29-13240 | Head, Cylinder | | 5001- |
| 12 | 07000-12130 | O-ring, (Kit : K09) | | 5001- |
| 13 | 07000-12125 | O-ring, (Kit : K09) | | 5001- |
| 14 | 07146-02126 | Ring, Back-up, (Kit : K09) | | 5001- |
| 15 | 07179-12079 | Ring, Snap | | 5001- |
| 16 | 707-56-65740 | Seal, Dust, (Kit : K09) | | 5001- |
| 17 | 707-51-65211 | Packing, Rod, (Kit : K09) | | 5001- |
| 18 | 707-52-10661 | Bushing | | 5001- |
| 19 | 707-36-13740 | Piston | | 5001- |
| 20 | 07156-01315 | Ring, Wear, (Kit : K09) | | 5001- |
| 21 | 707-44-13180 | Ring, Piston, (Kit : K09) | | 5001- |
| 22 | 707-67-48020 | Nut | | 5001- |
