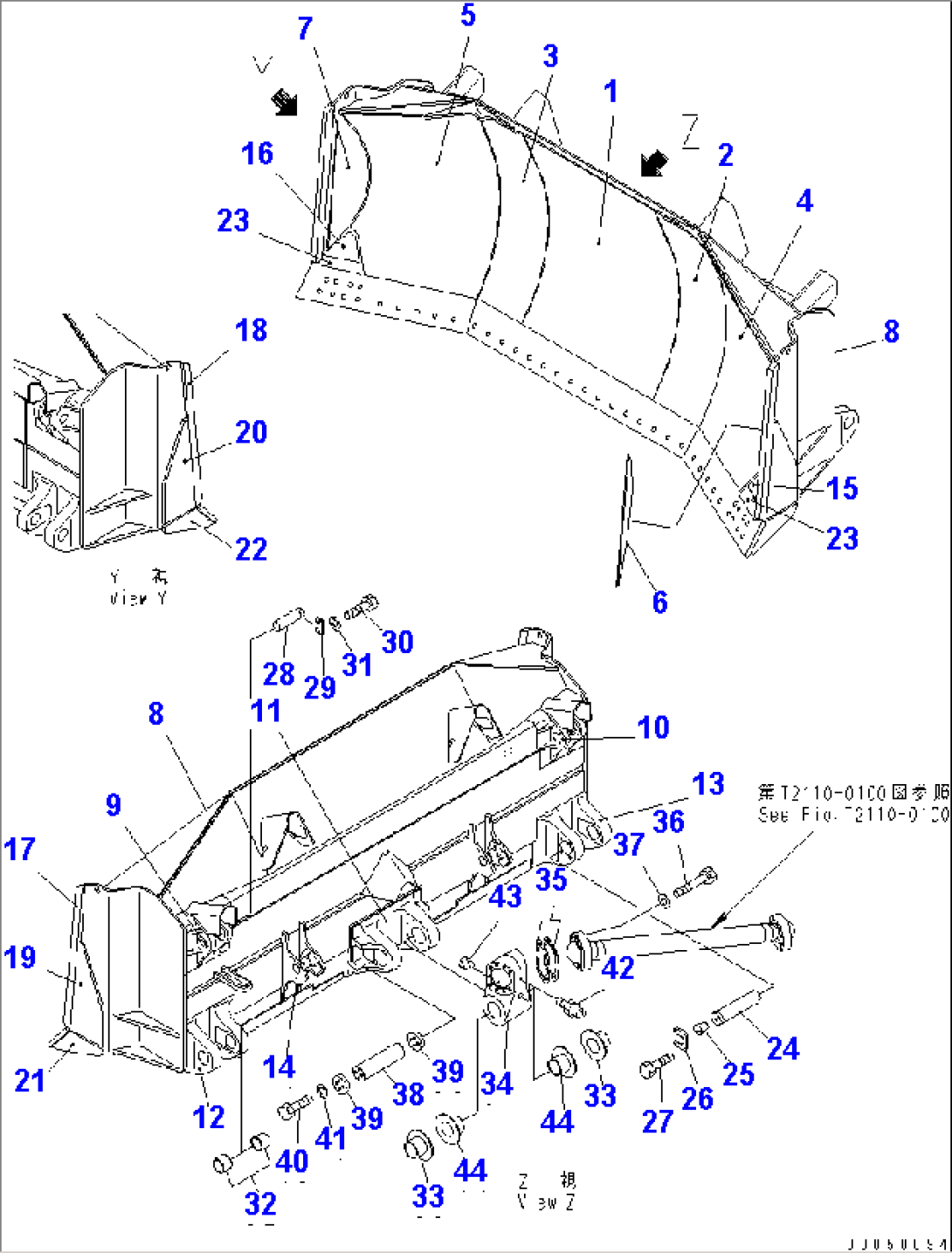

BLADE (FULL-U) (BLADE AND ARM) (REINFORCED TYPE)

BLADE (FULL-U) (BLADE AND ARM) (REINFORCED TYPE)
ItemPart No.Part NameQtySerial No.
195-72-74311BLADE55001-
1195-72-74510PLATE (WELDED)55001-
2195-72-74520PLATE (WELDED)55001-
3195-72-74530PLATE (WELDED)55001-
4195-72-74540PLATE (WELDED)55001-
5195-72-74550PLATE (WELDED)55001-
6195-72-74380PLATE (WELDED)55001-
7195-72-74390PLATE (WELDED)55001-
8\6\BLADE (WELDED)55001-
9195-71-74711BRACKET (WELDED)55001-
10195-71-74721BRACKET (WELDED)55001-
11195-71-75120BRACKET (WELDED)55001-
12195-71-75140BRACKET (WELDED)55001-
13195-71-75150BRACKET (WELDED)55001-
14195-72-74420BRACKET (WELDED)55001-
15195-72-61190PLATE (WELDED)55001-
16195-72-61210PLATE (WELDED)55001-
17195-72-74220PLATE (WELDED)55001-
18195-72-74230PLATE (WELDED)55001-
19195-72-74240PLATE (WELDED)55001-
20195-72-74250PLATE (WELDED)55001-
21195-72-74260PLATE (WELDED)55001-
22195-72-74270PLATE (WELDED)55001-
23198-72-11151STOPPER (WELDED)55001-
24195-71-71220PIN55001-
2507049-02025PLUG55001-
26195-71-74290LOCK55001-
2701010-62045BOLT55001-
28195-71-61590PIN55001-
29195-71-51450LOCK55001-
3001010-62050BOLT55001-
3101643-32060WASHER55001-
32195-71-74270BUSHING55001-
33195-71-74160BUSHING55001-
34195-71-74281BRACKET55001-
35195-71-00560SHIM ASS'Y55001-
35\6\SHIM, 2.0MM55001-
35\6\SHIM, 1.0MM55001-
35\6\SHIM, 0.5MM55001-
3601011-62720BOLT55001-
3701643-32780WASHER55001-
38195-71-71641PIN55001-
39195-71-71630PLATE55001-
4001010-82470BOLT55001-
4101643-32460WASHER55001-
4207020-00000FITTING55001-
4307049-01620PLUG55001-
44195-71-74160BUSHING55001-
