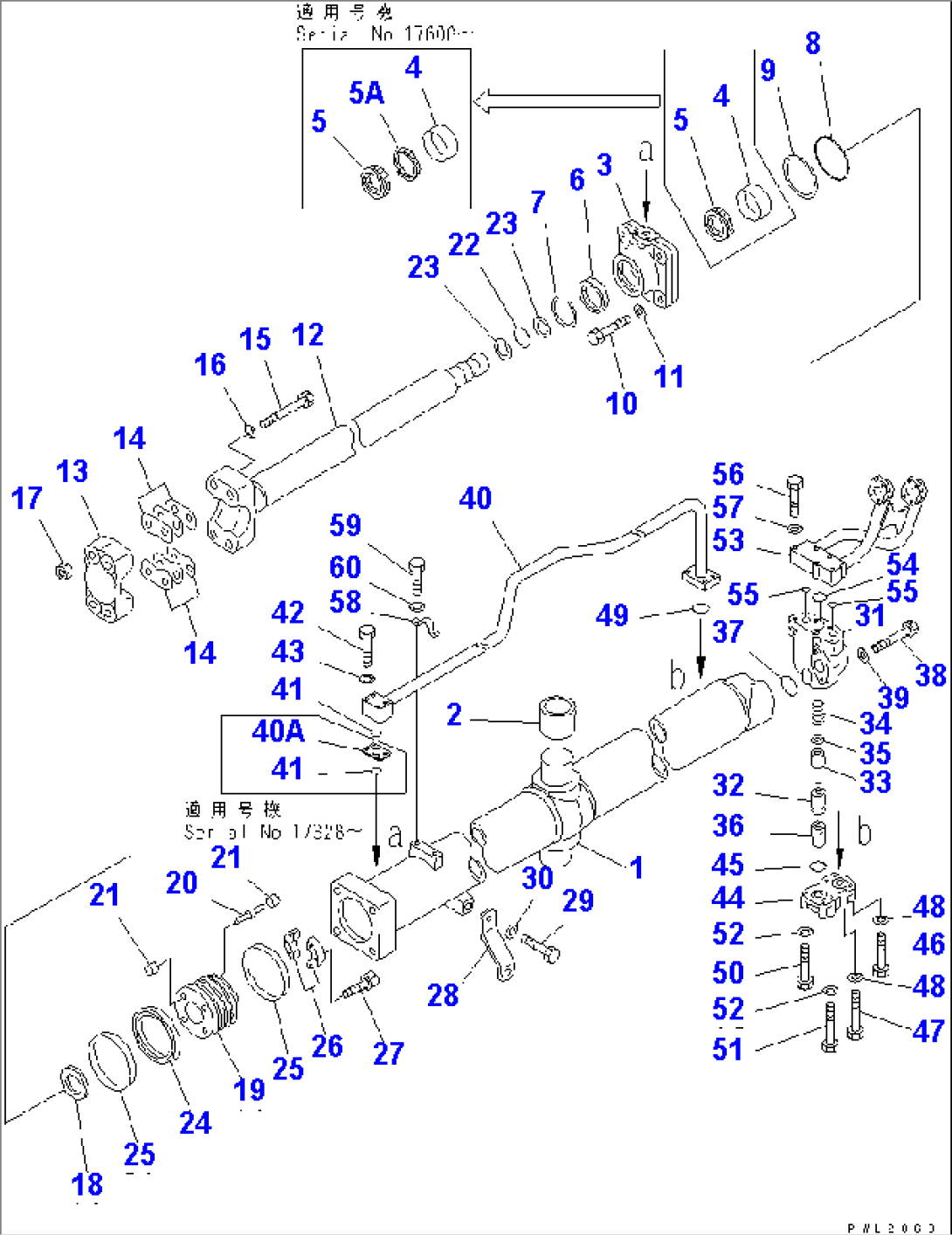

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\707-03-X7170) | CYLINDER GROUP,L.H. (FINAL COATING) | 17692- | |
| G-1 | (\8\195-63-X1413) | CYLINDER GROUP,L.H. | 17608-17691 | |
| G-1 | (\8\195-63-X1412) | CYLINDER GROUP,L.H. | 17328-17607 | |
| G-1 | (\8\195-63-X1411) | CYLINDER GROUP,L.H. | 17001-17327 | |
| G-2 | (\8\707-03-X7180) | CYLINDER GROUP,R.H. (FINAL COATING) | 17692- | |
| G-2 | (\8\195-63-X1423) | CYLINDER GROUP,R.H. | 17608-17691 | |
| G-2 | (\8\195-63-X1422) | CYLINDER GROUP,R.H. | 17328-17607 | |
| G-2 | (\8\195-63-X1421) | CYLINDER GROUP,R.H. | 17001-17327 | |
| ==================== | ||||
| 195-63-01413 | CYLINDER ASS'Y | 17608- | ||
| 195-63-01410 | CYLINDER ASS'Y | 17001-17607 | ||
| 1 | 195-63-22141 | CYLINDER | 17001- | |
| 2 | 195-63-13390 | BUSHING | 17001- | |
| 3 | 707-27-15150 | HEAD,CYLINDER | 17608- | |
| 3 | 707-27-15020 | HEAD,CYLINDER | 17001-17607 | |
| 4 | 707-52-90650 | BUSHING | 17608- | |
| 4 | 07177-09035 | BUSHING | 17001-17607 | |
| 5 | 707-51-90030 | PACKING,ROD (KIT) | 17608- | |
| 5 | 707-51-90211 | PACKING,ROD (KIT) | 17001-17607 | |
| 5A | 707-51-90640 | RING,BUFFER (KIT) | 17608- | |
| 6 | 195-63-94170 | SEAL,DUST (KIT) | 17001- | |
| 7 | 07179-13104 | RING,SNAP | 17001- | |
| 8 | 07000-12145 | O-RING (KIT) | 17001- | |
| 9 | 07146-02146 | RING,BACK-UP (KIT) | 17001- | |
| 10 | 01010-82785 | BOLT | 17001- | |
| 11 | 01602-22783 | WASHER,SPRING | 17001- | |
| 12 | 195-63-22122 | ROD,PISTON | 17001- | |
| 13 | 195-63-22171 | CAP | 17001- | |
| 14 | 195-63-22272 | SHIM, 1.0MM | 17001- | |
| 15 | 01011-82475 | BOLT | 17001- | |
| 16 | 01643-32460 | WASHER | 17001- | |
| 17 | 01580-12419 | NUT | 17001- | |
| 18 | 707-40-15050 | RETAINER | 17001- | |
| 195-63-22480 | PISTON ASS'Y | 17001- | ||
| 19 | \6\ | PISTON | 17001- | |
| 20 | \6\ | VALVE | 17001- | |
| 20 | \6\ | VALVE | 17001- | |
| 21 | \6\ | SEAT | 17001- | |
| 22 | 07000-B2055 | O-RING (KIT) | 17608- | |
| 22 | 07000-12055 | O-RING (KIT) | 17001-17607 | |
| 23 | 07001-02055 | RING,BACK-UP (KIT) | 17001- | |
| 24 | 707-44-15190 | RING,PISTON (KIT) | 17608- | |
| 24 | 707-44-15180 | RING,PISTON (KIT) | 17001-17607 | |
| 25 | 707-39-15820 | RING,WEAR (KIT) | 17001- | |
| 26 | 707-40-15060 | SPACER | 17001- | |
| 27 | 01252-61035 | BOLT | 17001- | |
| 28 | 195-63-13491 | HOOK | 17001- | |
| 29 | 01010-81670 | BOLT | 17001- | |
| 30 | 01643-31645 | WASHER | 17001- | |
| 195-63-14300 | VALVE ASS'Y,QUICK DROP | 17001- | ||
| 31 | \6\ | BODY | 17001- | |
| 32 | \6\ | VALVE | 17001- | |
| 33 | \6\ | VALVE | 17001- | |
| 34 | 195-63-14180 | SPRING | 17001- | |
| 35 | 01642-21216 | WASHER | 17001- | |
| 36 | 195-63-14163 | COLLAR | 17001- | |
| 37 | 07000-12055 | O-RING (KIT) | 17001- | |
| 38 | 01011-81615 | BOLT | 17001- | |
| 39 | 01643-31645 | WASHER | 17001- | |
| 40 | 195-63-22570 | TUBE,L.H. | 17328- | |
| 40 | 195-61-43750 | TUBE,L.H. | 17001-17327 | |
| 40 | 195-63-22670 | TUBE,R.H. | 17328- | |
| 40 | 195-61-43740 | TUBE,R.H. | 17001-17327 | |
| 40A | 195-61-51410 | PLATE | 17328- | |
| 41 | 07000-13035 | O-RING (KIT) | 17328- | |
| 41 | 07000-13035 | O-RING (KIT) | 17001-17327 | |
| 42 | 01010-81075 | BOLT | 17328- | |
| 42 | 01010-51070 | BOLT | 17001-17327 | |
| 43 | 01643-31032 | WASHER | 17001- | |
| 44 | 195-63-14130 | ELBOW | 17001- | |
| 45 | 07000-13048 | O-RING (KIT) | 17001- | |
| 46 | 01010-81270 | BOLT | 17001- | |
| 47 | 01010-81280 | BOLT | 17001- | |
| 48 | 01643-31232 | WASHER | 17001- | |
| 49 | 07000-13045 | O-RING (KIT) | 17001- | |
| 50 | 01010-81065 | BOLT | 17001- | |
| 51 | 01010-81075 | BOLT | 17001- | |
| 52 | 01643-31032 | WASHER | 17001- | |
| 53 | 195-61-51181 | TUBE,L.H. | 17001- | |
| 53 | 195-63-51191 | TUBE,R.H. | 17001- | |
| 54 | 07000-13045 | O-RING (KIT) | 17001- | |
| 55 | 07000-13038 | O-RING (KIT) | 17001- | |
| 56 | 01010-81270 | BOLT | 17001- | |
| 57 | 01643-31232 | WASHER | 17001- | |
| 58 | 07282-03411 | CLAMP | 17001- | |
| 59 | 01010-81020 | BOLT | 17001- | |
| 60 | 01643-31032 | WASHER | 17001- | |
| ==================== | ||||
| 707-99-56510 | SERVICE KIT | 17608- | ||
| 707-98-56620 | SERVICE KIT | 17001-17607 |
