| Item | Part No. | Part Name | Qty | Serial No. |

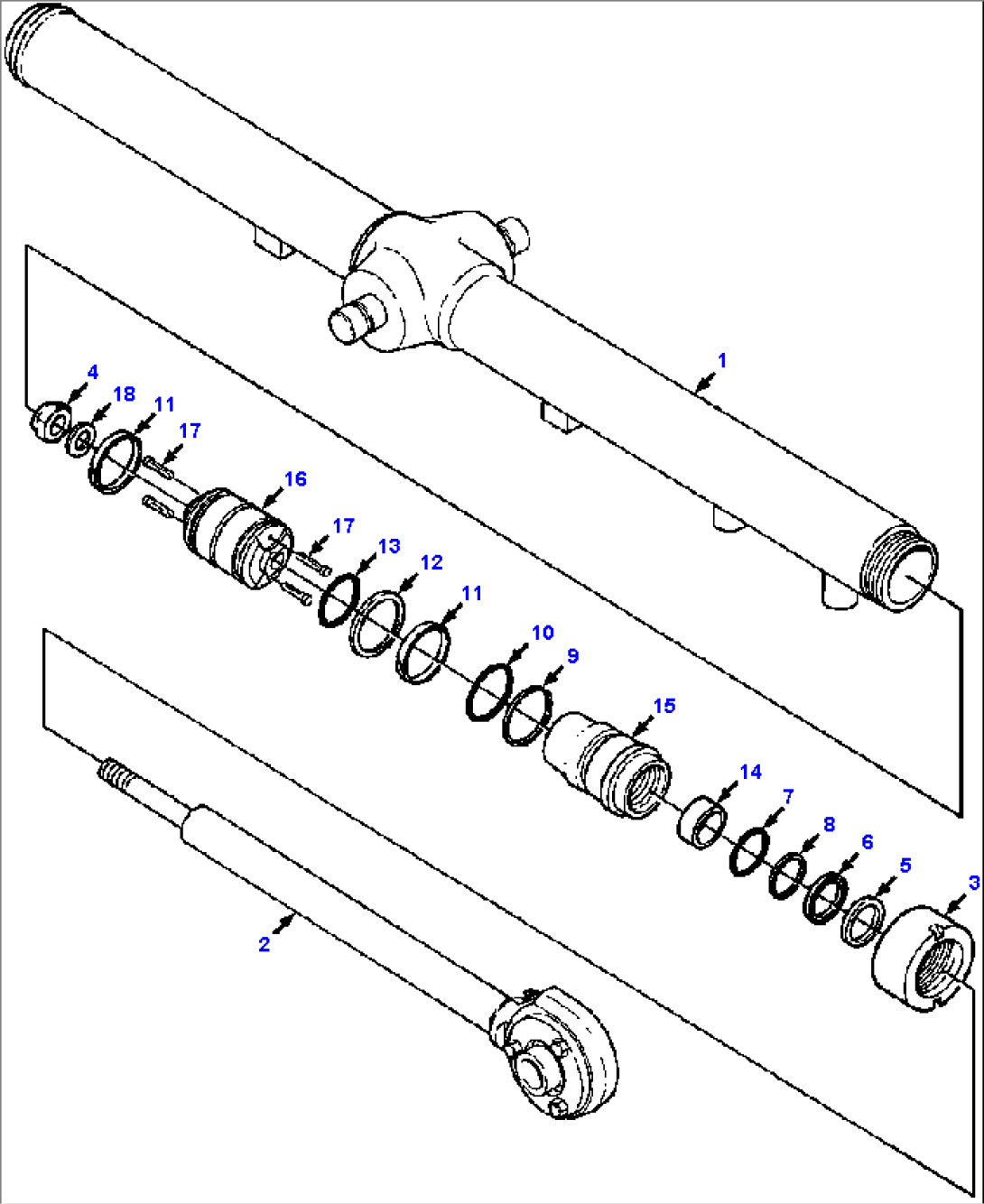

| 1236 416 H92 | CYLINDER ASSY, BLADE LIFT - LONG TRACKS OR LGP | |||
| 1 | 1236 415 H91 | HOUSING, CYLINDER | ||
| 2 | ROD W/BUSHING, PISTON (SEE PG 10-106) | |||
| 3 | 944 817 C2 | CAP, RETAINING | ||
| 4 | 25 126 R1 | NUT, LOCK - 1-1/8NF | ||
| 626 232 C5 | KIT, CYLINDER SEAL | |||
| 5 | (NSS) | WIPER, ROD | ||
| 6 | (NSS) | SEAL, ROD | ||
| 7 | (NSS) | O-RING | ||
| 8 | (NSS) | RING, BUFFER | ||
| 9 | (NSS) | RING, BACKUP | ||
| 10 | (NSS) | O-RING | ||
| 11 | (NSS) | RING, WEAR | ||
| 12 | (NSS) | SEAL, PISTON | ||
| 13 | (NSS) | O-RING | ||
| 14 | (NSS) | RING, WEAR | ||
| 15 | 1261 119 H1 | GLAND, CYLINDER | ||
| 16 | 715 033 C1 | PISTON, CYLINDER | ||
| 17 | 656 307 C1 | POPPET, PISTON | ||
| 18 | 25 862 R1 | WASHER, FLAT - 1-1/8 |
