| Item | Part No. | Part Name | Qty | Serial No. |

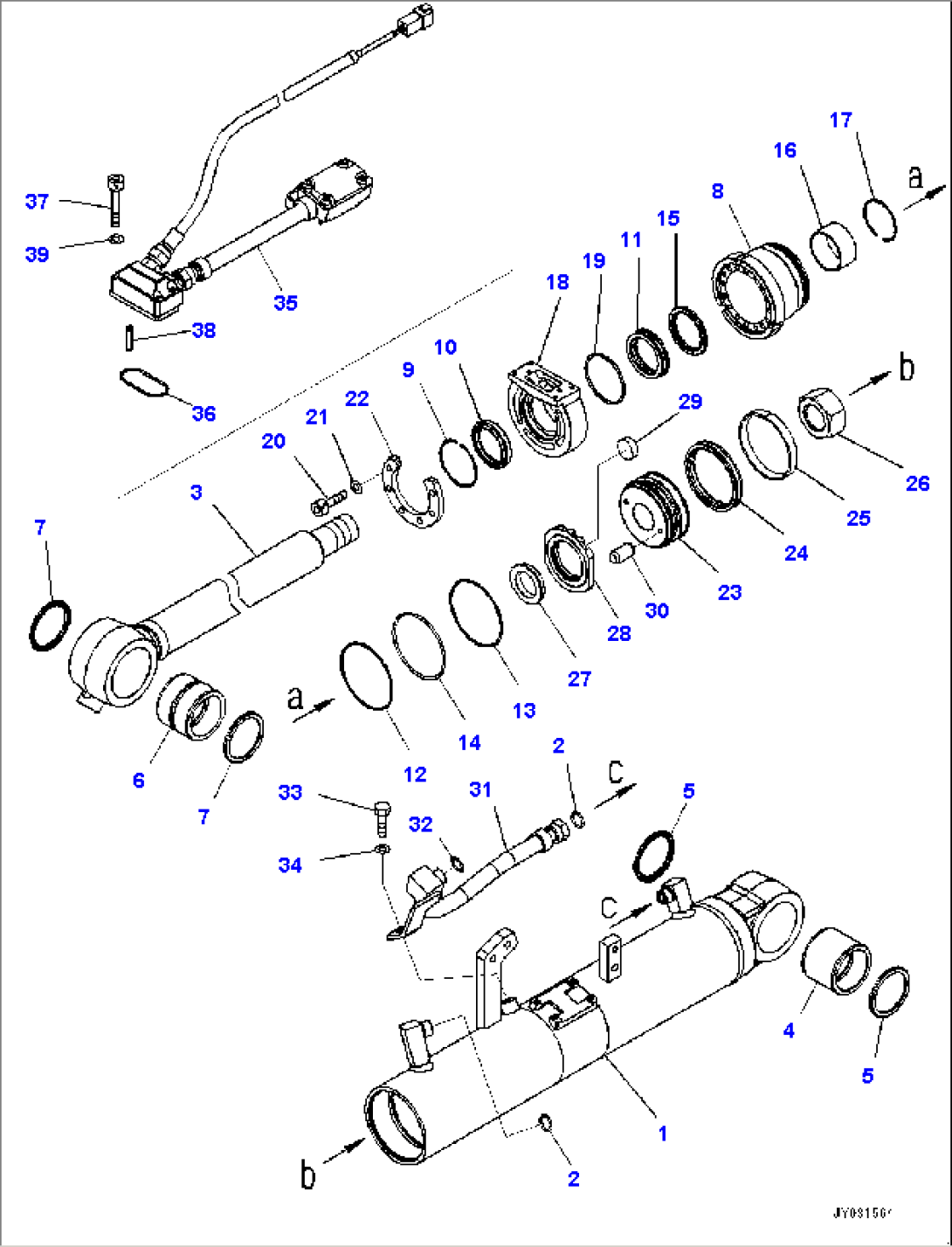

| 707-E7-00010 | Cylinder Assembly | | 30001- |
| 1 | 707-11-10J40 | Cylinder | | 30001- |
| 2 | 02896-61012 | O-ring, (Kit : K04) | | 30001- |
| 3 | 721-58-55730 | Rod, Piston | | 30001- |
| 4 | 07143-10606 | Bushing | | 30001- |
| 5 | 07145-00060 | Seal, Dust, (Kit : K04) | | 30001- |
| 6 | 07144-10606 | Bushing | | 30001- |
| 7 | 07145-00060 | Seal, Dust, (Kit : K04) | | 30001- |
| 8 | 707-97-07500 | Head, Cylinder | | 30001- |
| 9 | 07179-12069 | Ring, Snap | | 30001- |
| 10 | 707-56-55740 | Seal, Dust, (Kit : K04) | | 30001- |
| 11 | 707-51-55860 | Packing, Rod, (Kit : K04) | | 30001- |
| 12 | 07000-12100 | O-ring, (Kit : K04) | | 30001- |
| 13 | 07000-B2095 | O-ring, (Kit : K04) | | 30001- |
| 14 | 707-35-10960 | Ring, Back-up, (Kit : K04) | | 30001- |
| 15 | 707-51-55650 | Ring, Buffer, (Kit : K04) | | 30001- |
| 16 | 707-52-90301 | Bushing | | 30001- |
| 17 | 707-75-55110 | Ring, Snap | | 30001- |
| 18 | 707-97-07201 | Housing | | 31879- |
| 19 | 07000-12070 | O-ring, (Kit : K04) | | 30001- |
| 20 | 01252-70860 | Bolt, Hexagon Socket Head | | 30001- |
| 21 | 01643-30823 | Washer | | 30001- |
| 22 | 707-97-07001 | Plate | | 31879- |
| 23 | 707-36-10861 | Piston | | 31879- |
| 24 | 707-44-10150 | Ring, Piston, (Kit : K04) | | 30001- |
| 25 | 07156-01012 | Ring, Wear, (Kit : K04) | | 30001- |
| 26 | 707-67-39020 | Nut | | 30001- |
| 27 | 707-97-08210 | Ring | | 30001- |
| 28 | 707-97-08201 | Ring | | 31879- |
| 29 | 707-97-08100 | Magnet | | 30001- |
| 30 | 04022-06012 | Pin, Dowel | | 30001- |
| 31 | 707-86-48990 | Tube | | 30001- |
| 32 | 02896-61012 | O-ring, (Kit : K04) | | 30001- |
| 33 | 01010-81020 | Bolt | | 30001- |
| 34 | 01643-31032 | Washer | | 30001- |
| 35 | 707-97-00013 | Sensor Assembly | | 31879- |
| 36 | 707-34-60080 | O-ring, (Kit : K04) | | 30001- |
| 37 | 01252-70645 | Bolt, Hexagon Socket Head | | 30001- |
| 38 | 04025-00312 | Pin, Spring | | 30001- |
| 39 | 707-41-10310 | Washer | | 30001- |
