| Item | Part No. | Part Name | Qty | Serial No. |

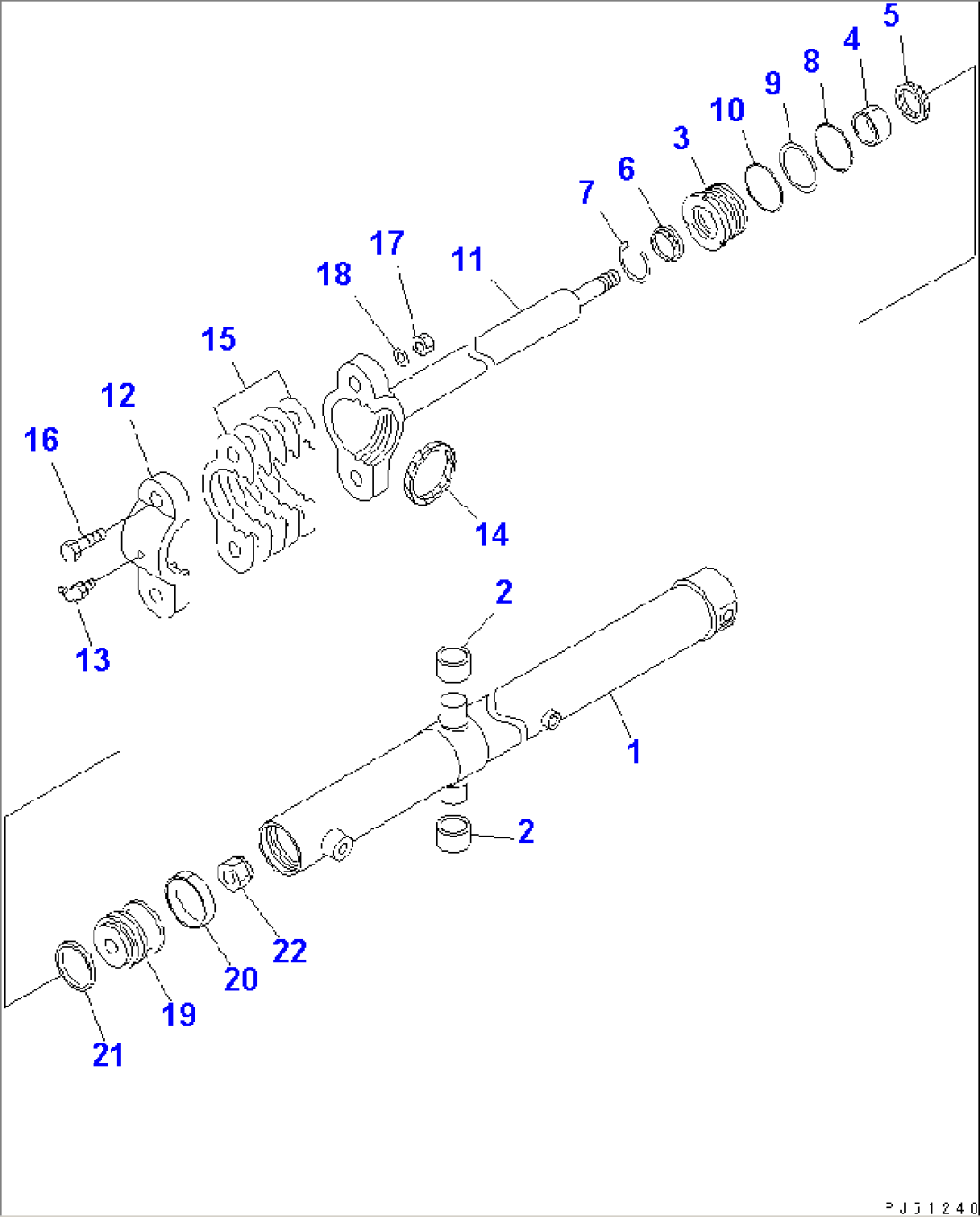

| 23C-63-13101 | CYLINDER ASS'Y,BLADE LIFT | 11001-@ | ||
| 1 | 23C-63-13141 | CYLINDER | 11001-@ | |
| 2 | 234-63-13080 | BUSHING | 11001-@ | |
| 3 | 707-29-90940 | HEAD,CYLINDER | 11001-@ | |
| 4 | 07177-05530 | BUSHING | 11001-@ | |
| 5 | 707-51-55210 | PACKING,ROD | 11001-@ | |
| 6 | 07016-20558 | SEAL,DUST | 11001-@ | |
| 7 | 07179-12069 | RING,SNAP | 11001-@ | |
| 8 | 07000-12085 | O-RING | 11001-@ | |
| 9 | 07001-02085 | RING,BACK-UP | 11001-@ | |
| 10 | 07000-02090 | O-RING | 11001-@ | |
| 11 | 23C-63-13121 | ROD,PISTON | 11001-@ | |
| 12 | 07138-01090 | CAP,ROD | 11001-@ | |
| 13 | 07020-00900 | FITTING,GREASE | 11001-@ | |
| 14 | 07141-00100 | SEAL,DUST | 11001-@ | |
| 15 | 07139-01002 | SHIM¤ 0.2MM | 11001-@ | |
| 07139-01005 | SHIM¤ 0.5MM | 11001-@ | ||
| 16 | 01010-52285 | BOLT | 11001-@ | |
| 17 | 01580-12218 | NUT | 11001-@ | |
| 18 | 01643-32260 | WASHER | 11001-@ | |
| 19 | 707-36-90930 | PISTON | 11001-@ | |
| 20 | 07156-00912 | RING,WEAR | 11001-@ | |
| 21 | 07161-10090 | RING,PISTON | 11001-@ | |
| 22 | 07165-13033 | NUT | 11001-@ |
