| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\13F-63-X2120) | CYLINDER GROUP | 81285- | |
| G-1 | (\8\13F-63-X2130) | CYLINDER GROUP | 81285- | |
| ==================== | ||||

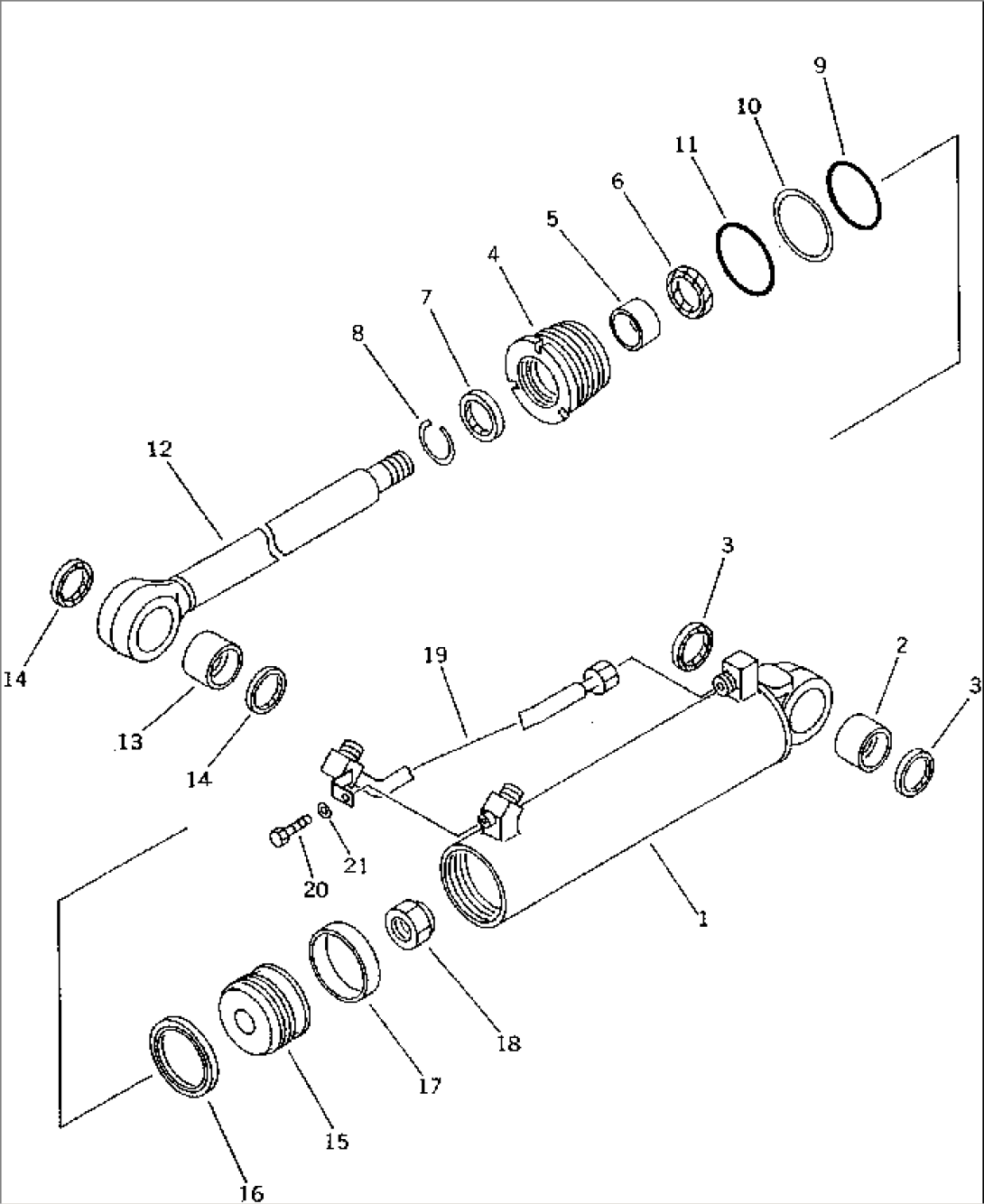

| 13F-63-02120 | CYLINDER ASS'Y,LIFT | 81285- | ||
| 1 | 13F-63-13740 | CYLINDER | 81285- | |
| 2 | 07143-10606 | BUSHING | 81285- | |
| 3 | 07145-00060 | SEAL,DUST (KIT) | 81285- | |
| 4 | 707-29-12930 | HEAD,CYLINDER | 81285- | |
| 5 | 07177-06030 | BUSHING | 81285- | |
| 6 | 707-51-60210 | PACKING,ROD (KIT) | 81285- | |
| 7 | 07016-20608 | SEAL,DUST (KIT) | 81285- | |
| 8 | 07179-12074 | RING,SNAP | 81285- | |
| 9 | 07000-12115 | O-RING (KIT) | 81285- | |
| 10 | 707-35-91200 | RING,BACK-UP (KIT) | 81285- | |
| 11 | 07000-02120 | O-RING (KIT) | 81285- | |
| 12 | 13F-63-14120 | ROD,PISTON | 81285- | |
| 13 | 07143-10606 | BUSHING | 81285- | |
| 14 | 07145-00060 | SEAL,DUST (KIT) | 81285- | |
| 15 | 707-36-12930 | PISTON | 81285- | |
| 16 | 07161-10120 | RING,PISTON (KIT) | 81285- | |
| 17 | 07156-01215 | RING,WEAR (KIT) | 81285- | |
| 18 | 07165-13941 | NUT | 81285- | |
| 19 | 13F-63-13780 | TUBE,L.H. | 81285- | |
| 19 | 13F-63-13880 | TUBE,R.H. | 81285- | |
| 20 | 01010-51025 | BOLT | 81285- | |
| 21 | 01643-31032 | WASHER | 81285- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-98-41010 | SERVICE KIT,LIFT CYLINDER | 81285- | |
| K | 07145-00060 | SEAL,DUST | 81285- | |
| K | 707-51-60210 | PACKING,ROD | 81285- | |
| K | 07016-20608 | SEAL,DUST | 81285- | |
| K | 07000-12115 | O-RING | 81285- | |
| K | 707-35-91200 | RING,BACK-UP | 81285- | |
| K | 07000-02120 | O-RING | 81285- | |
| K | 07145-00060 | SEAL,DUST | 81285- | |
| K | 07161-10120 | RING,PISTON | 81285- | |
| K | 07156-01215 | RING,WEAR | 81285- |
