| Item | Part No. | Part Name | Qty | Serial No. |
| 1234 011 H91 | CAPSULE ASSY, METERING | |||
| 1 | (NSS) | PIN, DOWEL | ||
| 2 | (NSS) | RETAINER, SPRING | ||
| 3 | (NSS) | SPRING | ||
| 4 | (NSS) | SPOOL, METERING | ||
| 5 | 627 895 C1 | RING, BACKUP | ||
| 6 | 927 377 C1 | O-RING | ||
| 7 | 876 106 C1 | O-RING | ||
| 8 | (NSS) | CAPSULE, METERING |
- Главная
- Каталог запчастей
- Бульдозеры
- Td 25g s/n p072001 p072037
- Hydraulics
- Blade pilot valve metering capsule
Поиск по каталогу

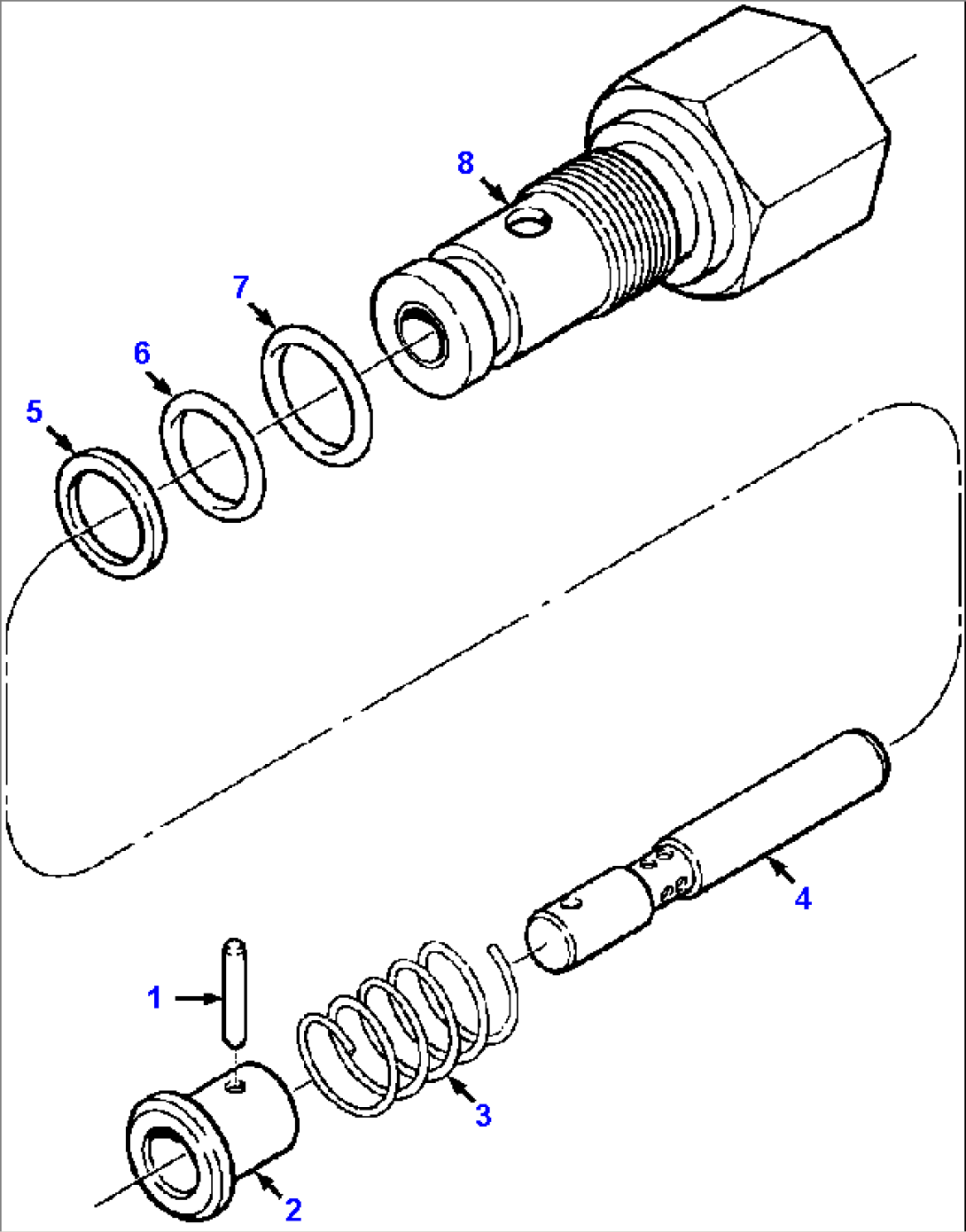

BLADE PILOT VALVE METERING CAPSULE
