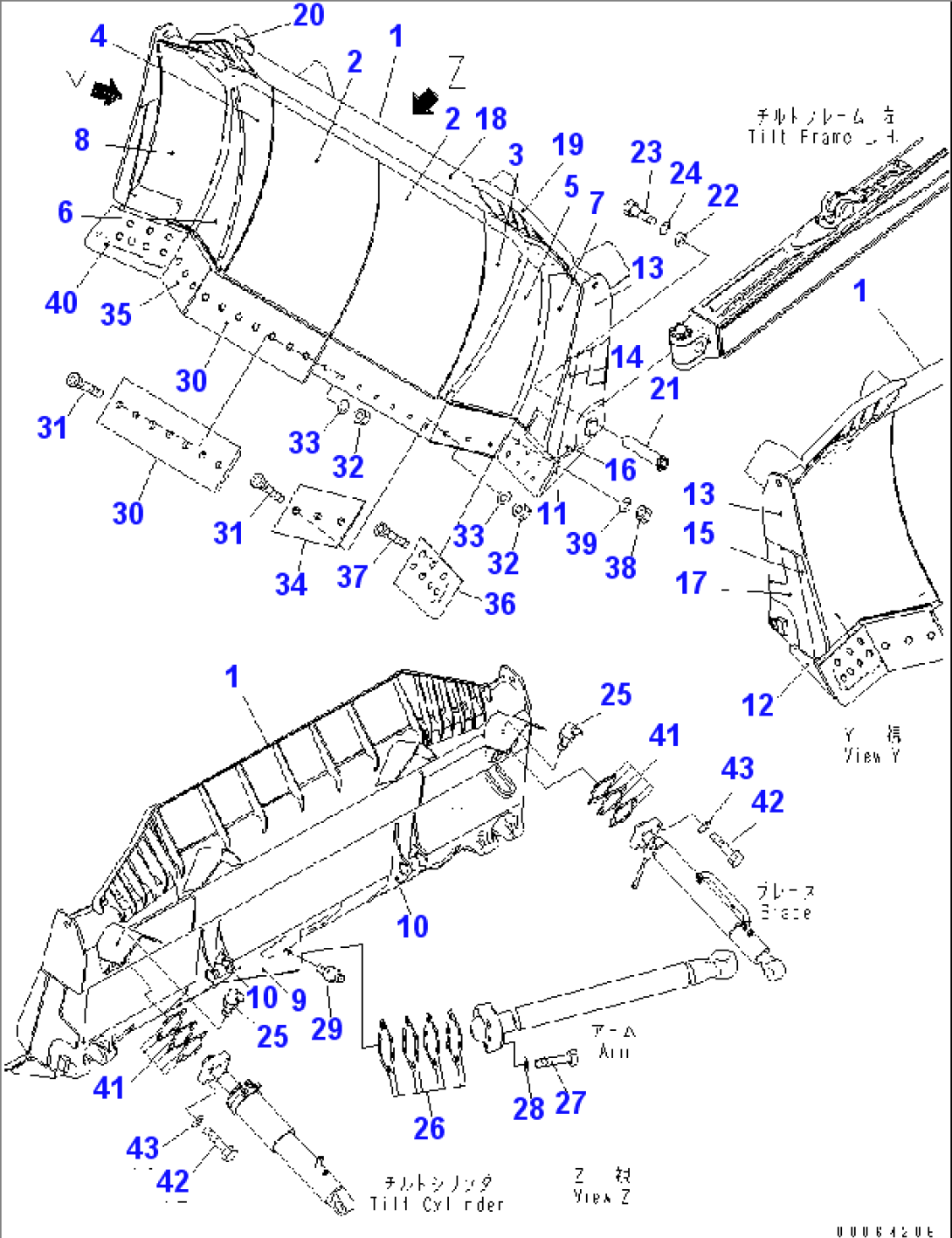

BLADE SIGMADOZER (REINFORCED TYPE) (SUPERHARD BIT AND EDGE)(#85001-)

BLADE SIGMADOZER (REINFORCED TYPE) (SUPERHARD BIT AND EDGE)(#85001-)
ItemPart No.Part NameQtySerial No.
117A-71-46113BLADE85001-
217A-71-46121PLATE (WELDED)85001-
317A-71-46130PLATE (WELDED)85001-
417A-71-46140PLATE (WELDED)85001-
517A-71-46150PLATE (WELDED)85001-
617A-71-46160PLATE (WELDED)85001-
717A-71-46171PLATE (WELDED)85001-
817A-71-46181PLATE (WELDED)85001-
917A-71-45141BRACKET (WELDED)85001-
1017A-71-45151BRACKET (WELDED)85001-
1117A-71-45192PLATE (WELDED)85001-
1217A-71-45292PLATE (WELDED)85001-
1317A-71-45A90PLATE (WELDED)85001-
1417A-71-45D11PLATE (WELDED)85001-
1517A-71-45D21PLATE (WELDED)85001-
1617A-71-45D30PLATE (WELDED)85001-
1717A-71-45D40PLATE (WELDED)85001-
1817A-71-45923SPILL GUARD (WELDED)85001-
1917A-71-45933SPILL GUARD (WELDED)85001-
2017A-71-45943SPILL GUARD (WELDED)85001-
2117A-71-45383PIN85001-
2217A-71-45390PLATE85001-
2301010-81645BOLT85001-
2401643-31645WASHER85001-
2507020-00675FITTING85001-
2617A-71-00410SHIM ASS'Y85001-
26\6\SHIM, 2.0MM85001-
26\6\SHIM, 1.0MM85001-
26\6\SHIM, 0.5MM85001-
2701011-83335BOLT85001-
2801643-33380WASHER85001-
2907020-00000FITTING85001-
3017A-71-45210CUTTING EDGE85001-
3117A-71-12451BOLT85001-
3217M-71-21530NUT85001-
3301643-22460WASHER85001-
3417A-71-46670CUTTING EDGE85001-
3517A-71-46680CUTTING EDGE85001-
3617A-71-46611END BIT85001-
3717A-71-12451BOLT85001-
3817M-71-21530NUT85001-
3901643-22460WASHER85001-
4017A-71-46621END BIT85001-
4117A-71-00420SHIM ASS'Y85001-
41\6\SHIM, 0.5MM85001-
41\6\SHIM, 1.0MM85001-
41\6\SHIM, 2.3MM85001-
4201011-62700BOLT85001-
4301643-32780WASHER85001-
