| Item | Part No. | Part Name | Qty | Serial No. |

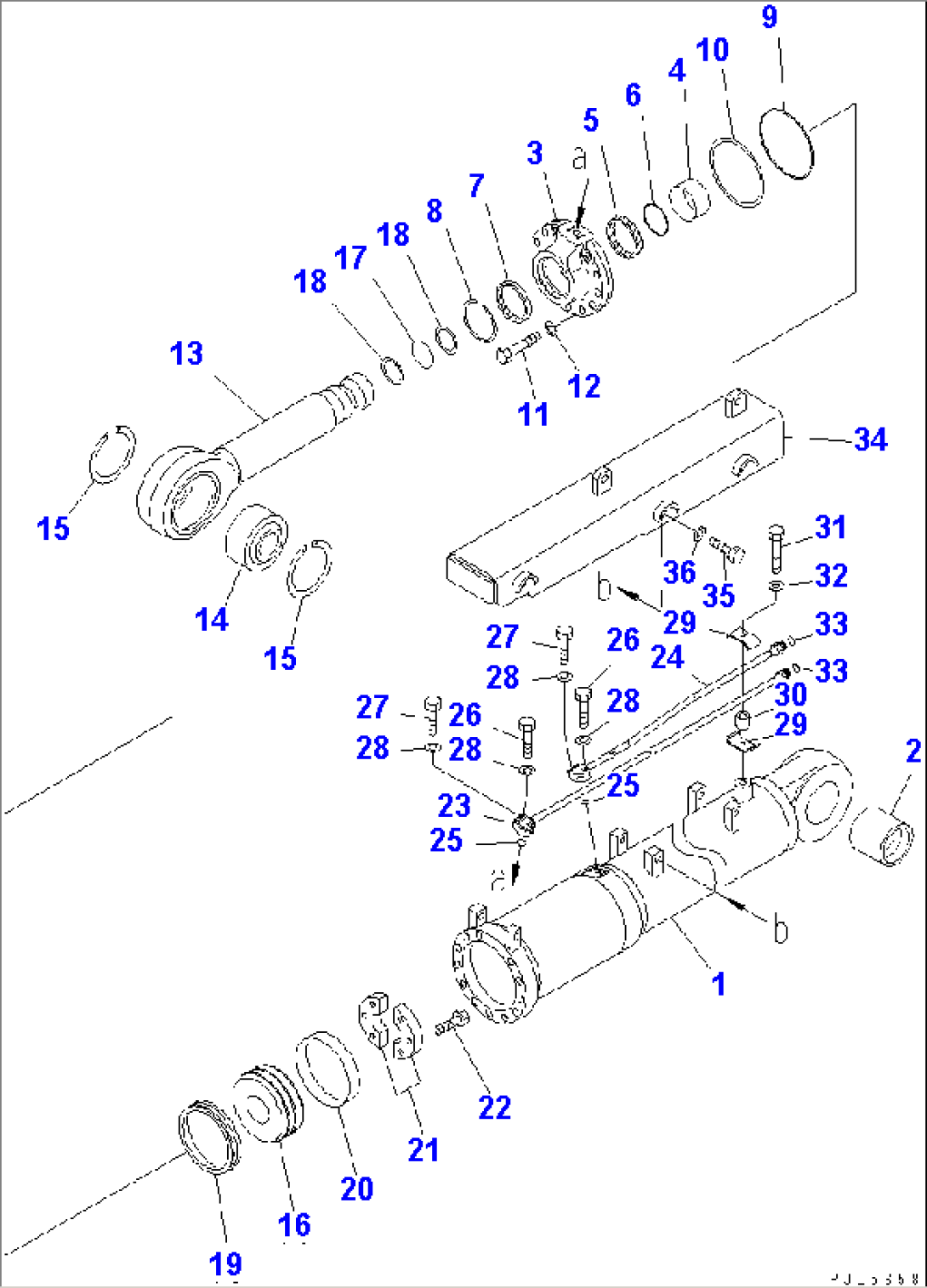

| G-1 | (\8\707-01-XX130) | CYLINDER ASS'Y,(FINAL COATING) | 25001-25239 | |
| ==================== | ||||
| 707-01-0C800 | CYLINDER ASS'Y | 25001-25239 | ||
| 1 | 707-13-18620 | CYLINDER | 25001-@ | |
| 2 | 707-76-70310 | BUSHING | 25001-@ | |
| 3 | 707-27-18810 | HEAD,CYLINDER | 25001-25239 | |
| 4 | 707-52-90781 | BUSHING | 25001-@ | |
| 5 | 707-51-10730 | PACKING,ROD (KIT) | 25001-@ | |
| 6 | 707-51-10640 | RING,BUFFER (KIT) | 25001-@ | |
| 7 | 707-56-10740 | SEAL | 25001-@ | |
| 8 | 07179-13114 | RING,SNAP | 25001-@ | |
| 9 | 07000-55170 | O-RING (KIT) | 25001-@ | |
| 10 | 07146-05172 | RING,BACK-UP (KIT) | 25001-@ | |
| 11 | 01010-81865 | BOLT | 25001-@ | |
| 12 | 01643-31845 | WASHER | 25001-@ | |
| 13 | 707-58-10790 | ROD,PISTON | 25001-@ | |
| 14 | 17M-71-21590 | BUSHING | 25001-@ | |
| 15 | 04071-00150 | RING,SNAP | 25001-@ | |
| 16 | 707-36-18050 | PISTON | 25001-@ | |
| 17 | 07000-55075 | O-RING (KIT) | 25001-@ | |
| 18 | 07001-05075 | RING,BACK-UP (KIT) | 25001-@ | |
| 19 | 707-44-18180 | RING,PISTON (KIT) | 25001-@ | |
| 20 | 07156-01822 | RING,WEAR (KIT) | 25001-@ | |
| 21 | 707-40-20030 | SPACER | 25001-@ | |
| 22 | 01010-61245 | BOLT | 25001-@ | |
| 23 | 707-86-47030 | TUBE | 25001-@ | |
| 24 | 707-86-47040 | TUBE | 25001-@ | |
| 25 | 07000-53025 | O-RING (KIT) | 25001-@ | |
| 26 | 01010-80845 | BOLT | 25001-25239 | |
| 27 | 01010-80840 | BOLT | 25001-@ | |
| 28 | 01643-50823 | WASHER | 25001-25239 | |
| 29 | 707-88-34690 | CLAMP | 25001-@ | |
| 30 | 707-88-34700 | SEAT | 25001-@ | |
| 31 | 01010-81455 | BOLT | 25001-@ | |
| 32 | 01643-31445 | WASHER | 25001-@ | |
| 33 | 02896-11015 | O-RING (KIT) | 25001-25239 | |
| 34 | 707-88-35280 | COVER | 25001-@ | |
| 35 | 01010-81640 | BOLT | 25001-@ | |
| 36 | 01643-31645 | WASHER | 25001-@ | |
| ==================== | ||||
| 707-99-66620 | SERVICE KIT | 25001-25239 |
