| Item | Part No. | Part Name | Qty | Serial No. |

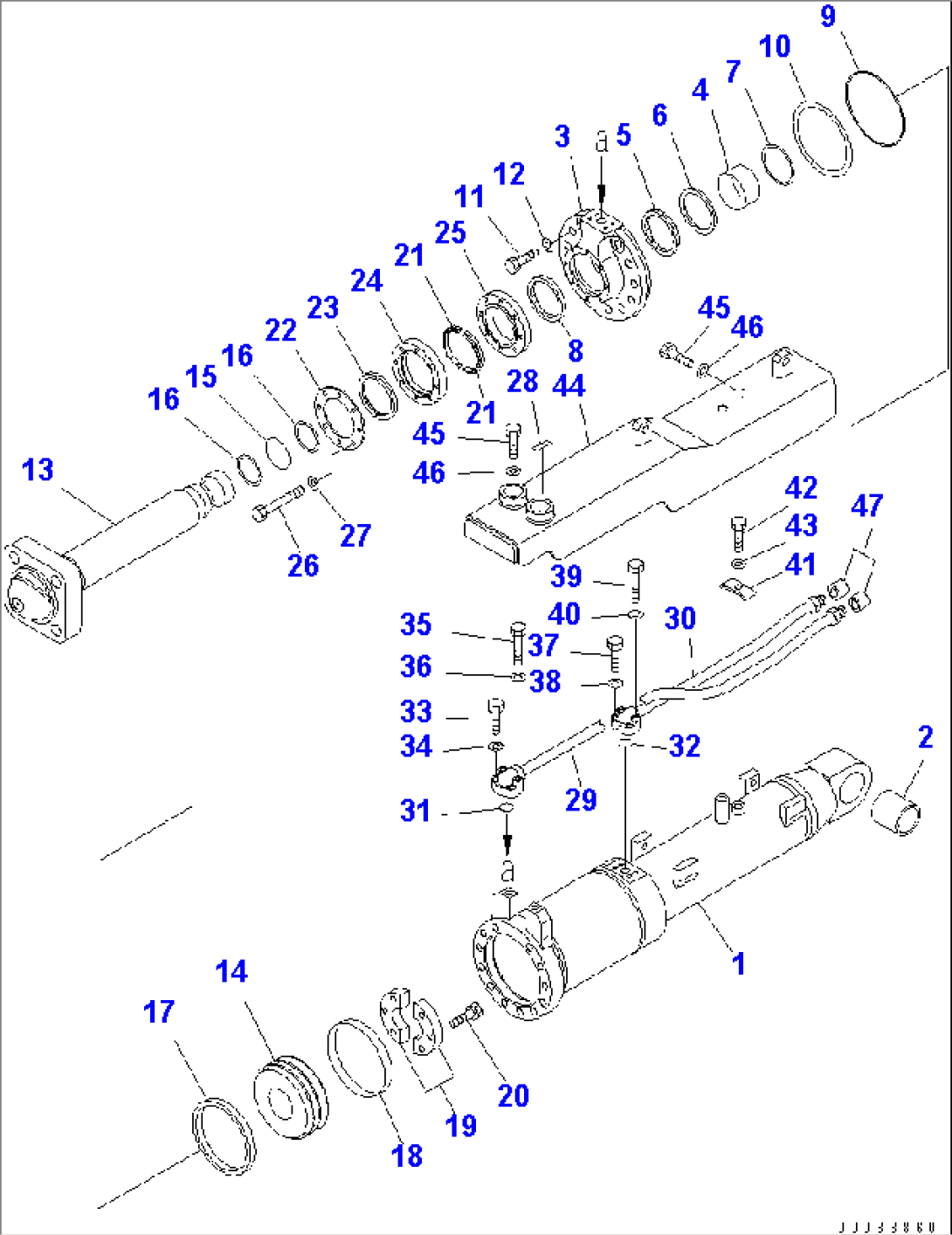

| G-1 | (\8\707-04-XZ130) | CYLINDER GROUP,(FINAL COATING) | 65275- | |
| ==================== | ||||
| 707-04-00160 | CYLINDER ASS'Y | 65275- | ||
| 1 | 17A-63-52141 | CYLINDER | 65275- | |
| 2 | 195-63-52160 | BUSHING | 65275- | |
| 3 | 707-27-18600 | HEAD,CYLINDER | 65275- | |
| 4 | 707-52-90680 | BUSHING | 65275- | |
| 5 | 707-51-90730 | U-PACKING,ROD (KIT) | 65275- | |
| 6 | 707-51-90640 | RING,BUFFER (KIT) | 65275- | |
| 7 | 707-75-90110 | RING,SNAP | 65275- | |
| 8 | 707-56-90740 | SEAL,DUST (KIT) | 65275- | |
| 9 | 07000-55170 | O-RING (KIT) | 65275- | |
| 10 | 07146-05172 | RING,BACK-UP (KIT) | 65275- | |
| 11 | 01010-81865 | BOLT | 65275- | |
| 12 | 01643-31845 | WASHER | 65275- | |
| 13 | 707-60-90170 | ROD,PISTON | 65275- | |
| 14 | 707-36-18400 | PISTON | 65275- | |
| 15 | 07000-52070 | O-RING (KIT) | 65275- | |
| 16 | 707-35-52910 | RING,BACK-UP (KIT) | 65275- | |
| 17 | 707-44-18180 | RING,PISTON (KIT) | 65275- | |
| 18 | 07156-01822 | RING,WEAR (KIT) | 65275- | |
| 19 | 707-40-18070 | SPACER | 65275- | |
| 20 | 01010-61240 | BOLT | 65275- | |
| 21 | 707-56-90650 | SEAL (KIT) | 65275- | |
| 22 | 707-88-03911 | PLATE | 65275- | |
| 23 | 707-88-03920 | RING | 65275- | |
| 24 | 707-88-03931 | PLATE | 65275- | |
| 25 | 707-88-03940 | PLATE | 65275- | |
| 26 | 01010-80855 | BOLT | 65275- | |
| 27 | 01643-30823 | WASHER | 65275- | |
| 28 | 700-11-31980 | PLATE, NAME | 65275- | |
| 29 | 15A-71-12150 | TUBE | 65275- | |
| 30 | 15A-71-12160 | TUBE | 65275- | |
| 31 | 07000-53030 | O-RING (KIT) | 65275- | |
| 32 | 07000-53025 | O-RING (KIT) | 65275- | |
| 33 | 01010-80840 | BOLT | 65275- | |
| 34 | 01643-30823 | WASHER | 65275- | |
| 35 | 01010-80855 | BOLT | 65275- | |
| 36 | 01643-30823 | WASHER | 65275- | |
| 37 | 01010-80835 | BOLT | 65275- | |
| 38 | 01643-30823 | WASHER | 65275- | |
| 39 | 01010-80845 | BOLT | 65275- | |
| 40 | 01643-30823 | WASHER | 65275- | |
| 41 | 195-63-52871 | CLIP | 65275- | |
| 42 | 01010-81420 | BOLT | 65275- | |
| 43 | 01643-31445 | WASHER | 65275- | |
| 44 | 17A-63-52191 | COVER | 65275- | |
| 45 | 01010-81635 | BOLT | 65275- | |
| 46 | 01643-31645 | WASHER | 65275- | |
| 47 | 154-63-52890 | PLUG,(FOR SHIPPING) | 65275- | |
| ==================== | ||||
| 707-99-64595 | SERVICE KIT | 65275- |
