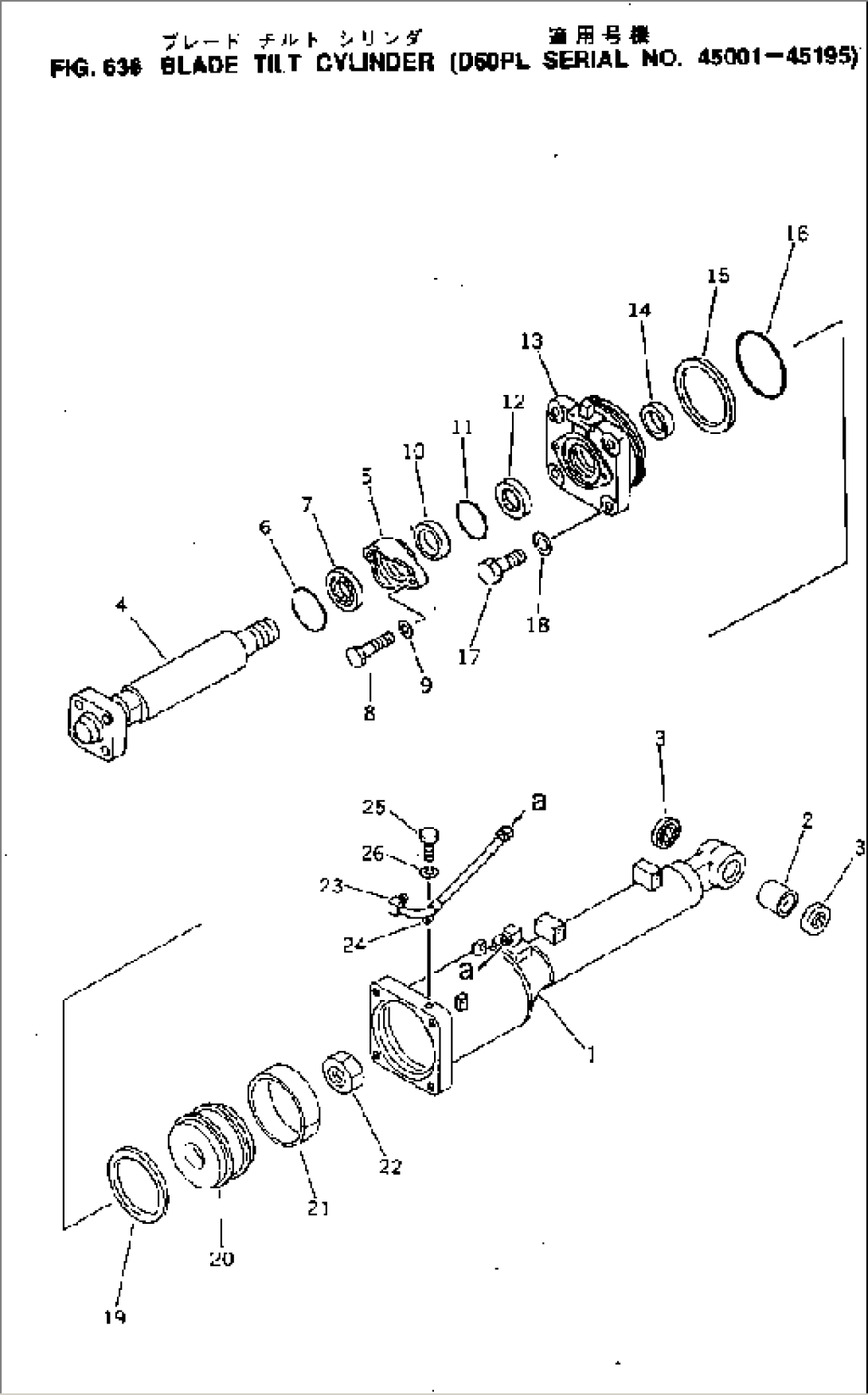

| Item | Part No. | Part Name | Qty | Serial No. |
| 144-63-52200 | CYLINDER ASS'Y | 45001-45195 | ||
| 1 | 144-63-52241 | CYLINDER | 45001-45195 | |
| 2 | 07143-10505 | BUSHING | 45001-@ | |
| 3 | 07145-00050 | SEAL,DUST | 45001-@ | |
| 4 | 144-917-8153 | ROD,PISTON | 45001-45195 | |
| 5 | 175-63-12430 | GLAND | 45001-45195 | |
| 6 | 07179-00093 | RING,SNAP | 45001-45195 | |
| 7 | 144-63-95170 | SEAL,DUST | 45001-45195 | |
| 8 | 01010-51655 | BOLT | 45001-45195 | |
| 9 | 01602-21648 | WASHER,SPRING | 45001-45195 | |
| 10 | 07177-07015 | BUSHING | 45001-45195 | |
| 11 | 07000-03090 | O-RING | 45001-45195 | |
| 12 | 707-51-70110 | PACKING,ROD | 45001-45195 | |
| 13 | 144-63-52230 | HEAD,CYLINDER | 45001-45195 | |
| 14 | 07177-07030 | BUSHING | 45001-45195 | |
| 15 | 07146-05152 | RING,BACK-UP | 45001-@ | |
| 16 | 07000-15150 | O-RING | 45001-@ | |
| 17 | 01010-82775 | BOLT | 45001-45195 | |
| 18 | 01602-22783 | WASHER,SPRING | 45001-45195 | |
| 19 | 707-44-16080 | RING,PISTON | 45001-45195 | |
| 20 | 144-63-95271 | PISTON | 45001-45195 | |
| 21 | 07155-01640 | RING,WEAR | 45001-45195 | |
| 22 | 144-63-42182 | NUT | 45001-45195 | |
| 23 | 144-63-52280 | TUBE | 45001-45195 | |
| 24 | 04434-01508 | CLIP | 45001-@ | |
| 25 | 01010-50812 | BOLT | 45001-@ | |
| 26 | 01602-20825 | WASHER,SPRING | 45001-45195 |
