| Item | Part No. | Part Name | Qty | Serial No. |

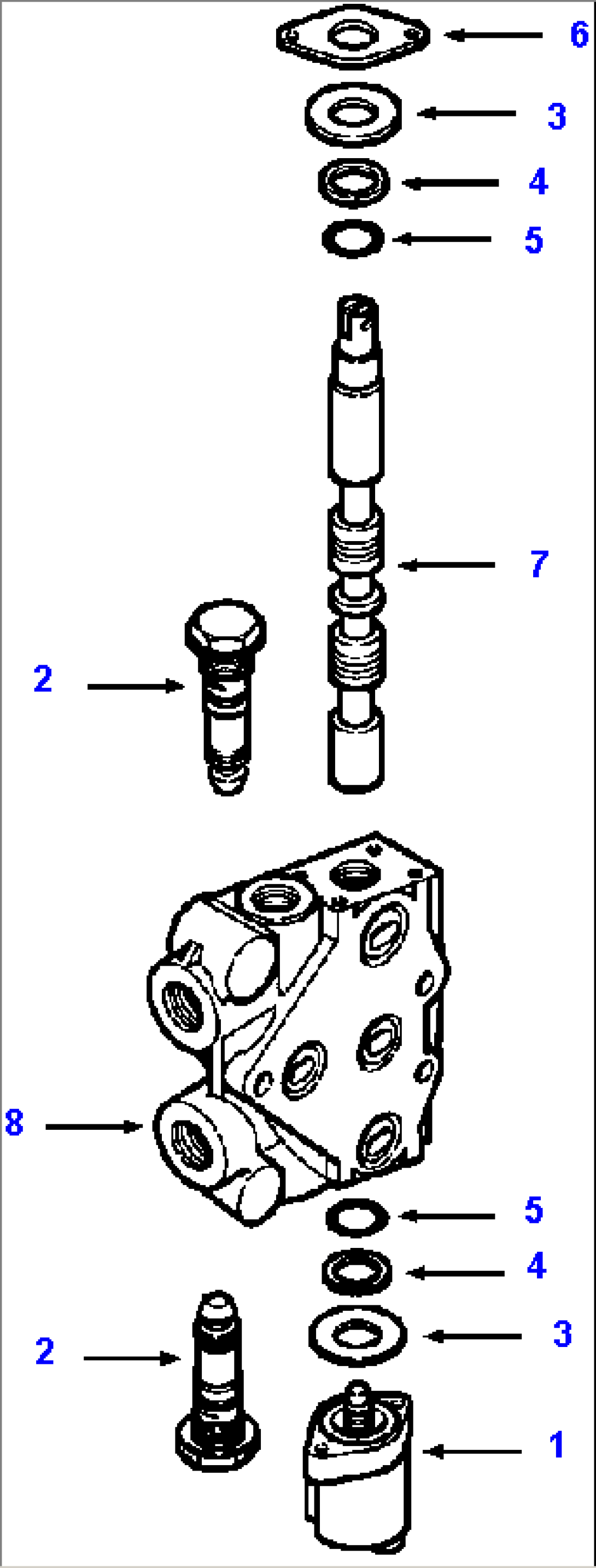

| 1299 224 H91 | SECTION ASSY, BLADE TILT | |||
| 1 | POSITIONER, SPOOL (SEE PG 10-062) | |||
| 2 | VALVE, LOAD CHECK (SEE PG 10-064) | |||
| 1299 238 H91 | SEAL ASSY, SPOOL | |||
| 3 | 850 880 C1 | RETAINER, SEAL | ||
| 1299 239 H1 | KIT, SEAL | |||
| 4 | (NSS) | RING, BACK UP | ||
| 5 | (NSS) | RING, SEAL | ||
| 1299 240 H1 | KIT, SEAL PLATE | |||
| 6 | (NSS) | PLATE, SEAL | ||
| (NSS) | BOLT, HEX - 1/4NCx1/2 | |||
| 7 | (NSS) | SPOOL, SECTION | ||
| 8 | (NSS) | HOUSING, SECTION | ||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
| F2 - FOR SHIPPING PURPOSES ONLY. USE FOR SERVICING SECTION. | ||||
