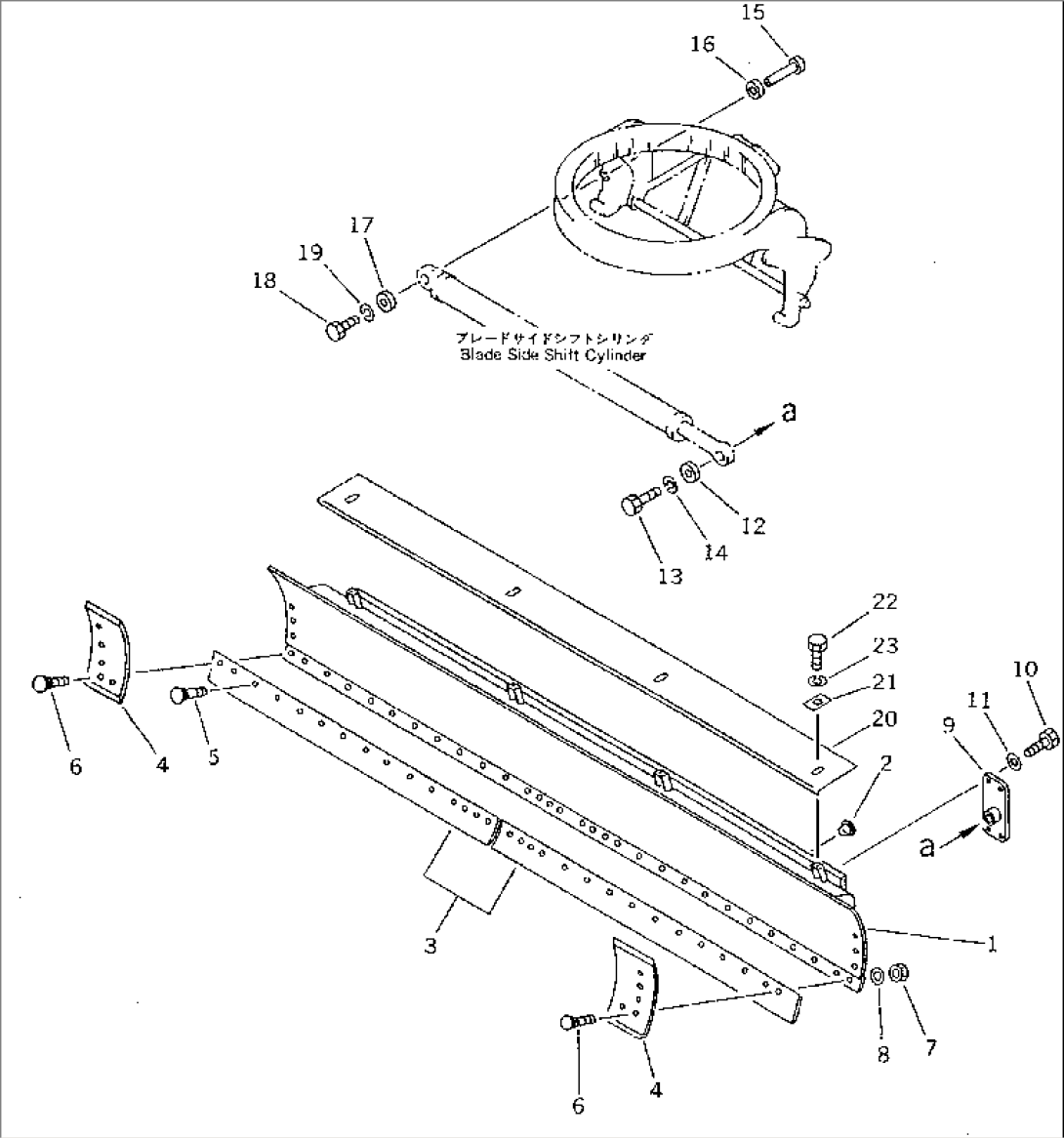

Item | Part No. | Part Name | Qty | Serial No. |
1 | 23A-70-12510 | BLADE | 2001- | |
23A-70-12430 | RAIL,UPPER (WELDED) | 2001- | ||
23A-70-12420 | RAIL,LOWER (WELDED) | 2001- | ||
2 | 07048-01510 | PLUG | 2001- | |
3 | 234-70-12193 | EDGE | 2001- | |
4 | 232-70-52190 | BIT,END | 2001- | |
5 | 232-70-12450 | BOLT | 2001- | |
6 | 232-70-12460 | BOLT | 2001- | |
7 | 232-70-12480 | NUT | 2001- | |
8 | 01643-31645 | WASHER | 2001- | |
9 | 23A-70-13170 | BRACKET | 2001- | |
10 | 01010-51640 | BOLT | 2001- | |
11 | 01643-31645 | WASHER | 2001- | |
12 | 23A-70-12150 | WASHER | 2001- | |
13 | 01010-51225 | BOLT | 2001- | |
14 | 01643-31232 | WASHER | 2001- | |
15 | 23A-70-13190 | SHAFT | 2001- | |
16 | 23A-70-13180 | COLLAR | 2001- | |
17 | 23A-70-12150 | WASHER | 2001- | |
18 | 01010-51225 | BOLT | 2001- | |
19 | 01643-31232 | WASHER | 2001- | |
20 | 23B-70-12150 | COVER | 2001- | |
21 | 234-70-12830 | PLATE | 2001- | |
22 | 01010-51230 | BOLT | 2001- | |
23 | 01643-31232 | WASHER | 2001- |
