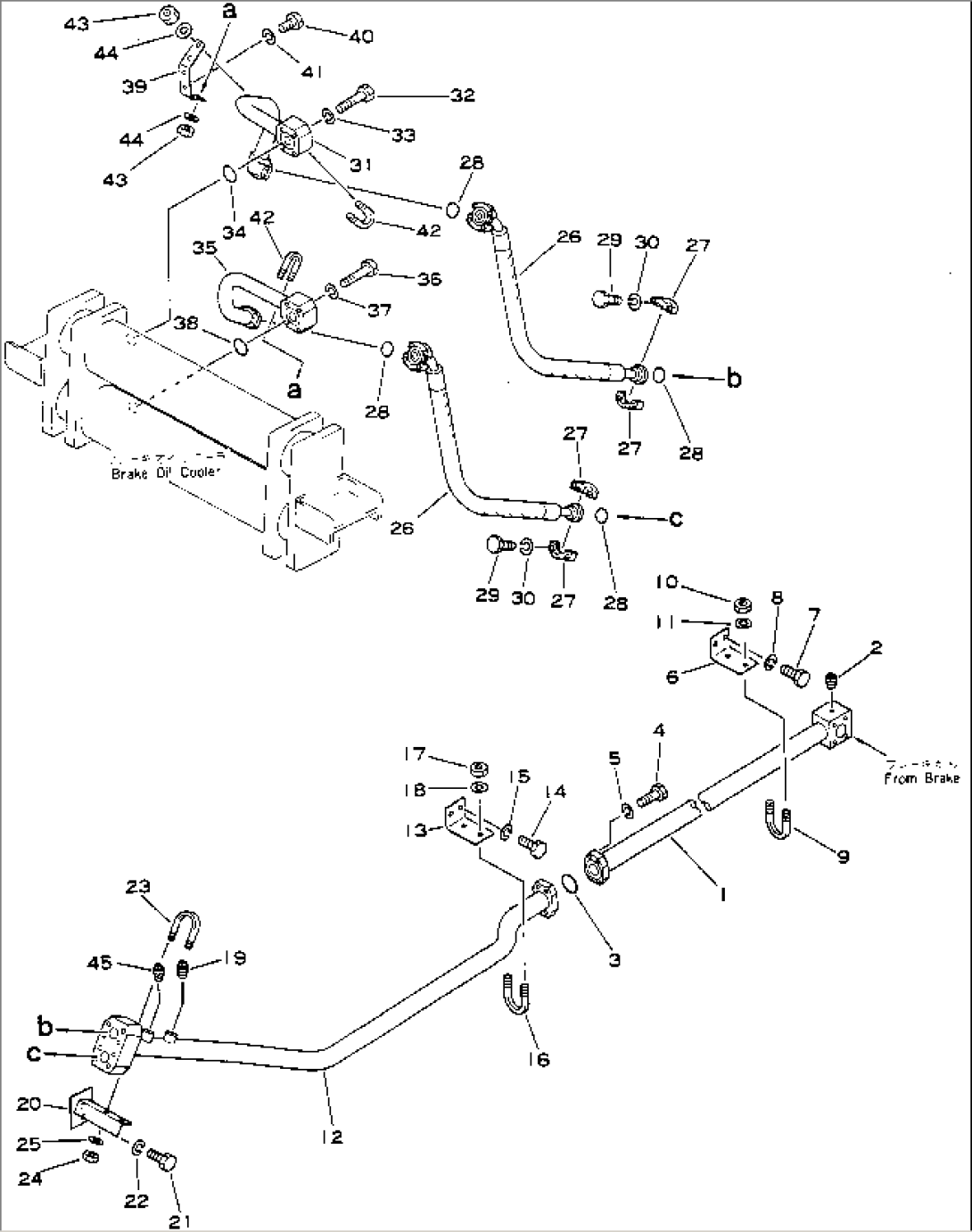

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-61-15361 | TUBE | 1002- | |
| 2 | 07042-20108 | PLUG | 1002- | |
| 3 | 07000-12060 | O-RING | 1002- | |
| 4 | 07372-21245 | BOLT | 1002- | |
| 5 | 01602-21236 | WASHER | 1002- | |
| 6 | 561-61-15490 | BRACKET | 1002- | |
| 7 | 01010-51230 | BOLT | 1002- | |
| 8 | 01602-21236 | WASHER | 1002- | |
| 9 | 07283-26155 | CLIP | 1002- | |
| 10 | 01599-01011 | NUT | 1002- | |
| 11 | 01643-31032 | WASHER | 1002- | |
| 12 | 561-61-15381 | TUBE | 1002- | |
| 13 | 561-61-15490 | BRACKET | 1002- | |
| 14 | 01010-51230 | BOLT | 1002- | |
| 15 | 01602-21236 | WASHER | 1002- | |
| 16 | 07283-26155 | CLIP | 1002- | |
| 17 | 01599-01011 | NUT | 1002- | |
| 18 | 01643-31032 | WASHER | 1002- | |
| 19 | 07042-20108 | PLUG | 1002- | |
| 20 | 561-61-15480 | BRACKET | 1002- | |
| 21 | 01010-51230 | BOLT | 1002- | |
| 22 | 01602-21236 | WASHER | 1002- | |
| 23 | 07283-26155 | CLIP | 1002- | |
| 24 | 01599-01011 | NUT | 1002- | |
| 25 | 01643-31032 | WASHER | 1002- | |
| 26 | 07114-01410 | HOSE | 1002- | |
| 27 | 07371-31460 | FLANGE | 1002- | |
| 28 | 07000-13048 | O-RING | 1002- | |
| 29 | 07372-21235 | BOLT | 1002- | |
| 30 | 01602-21236 | WASHER | 1002- | |
| 31 | 561-61-15521 | TUBE | 1002- | |
| 32 | 01010-51280 | BOLT | 1002- | |
| 33 | 01602-21236 | WASHER | 1002- | |
| 34 | 07000-12060 | O-RING | 1002- | |
| 35 | 561-61-15531 | TUBE | 1002- | |
| 36 | 01010-51280 | BOLT | 1002- | |
| 37 | 01602-21236 | WASHER | 1002- | |
| 38 | 07000-12060 | O-RING | 1002- | |
| 39 | 561-61-15560 | BRACKET | 1002- | |
| 40 | 01010-51225 | BOLT | 1002- | |
| 41 | 01602-21236 | WASHER | 1002- | |
| 42 | 07283-24346 | CLIP | 1002- | |
| 43 | 01599-01011 | NUT | 1002- | |
| 44 | 01643-31032 | WASHER | 1002- | |
| 45 | 07042-20211 | PLUG | 1002- |
