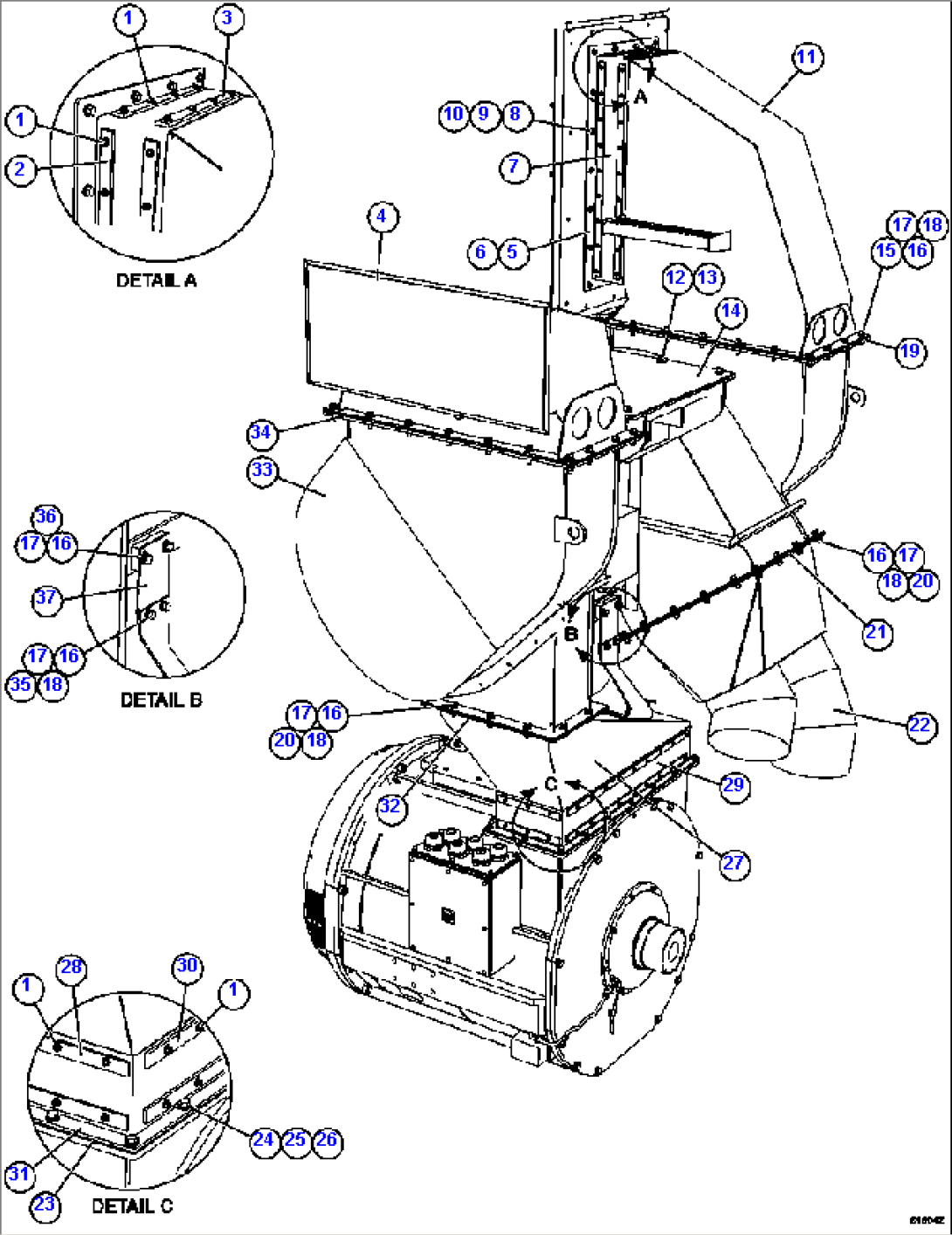

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WA4497 | SCREW - 1/4" X 3/4" | ||
| 2 | EL2080 | BAR | ||
| 3 | EL2081 | BAR | ||
| 4 | EM3498 | DUCT | ||
| 5 | EL2098 | DUCT | ||
| 6 | EL2653 | GASKET | ||
| 7 | EM9997 | BOOT | ||
| 8 | VC8762 | CAPSCREW - 3/8" - 16NC X 1 1/2" | ||
| 9 | TC1231 | LOCKWASHER - 3/8" | ||
| 10 | TR4436 | FLAT WASHER - 3/8" | ||
| 11 | EL2099 | DUCT | ||
| 12 | MM0071 | CAPSCREW - M16 X 2.00 X 45 | ||
| 13 | MM0706 | FLAT WASHER - M16 | ||
| 14 | EL3912 | SHEET | ||
| 15 | MM0621 | CAPSCREW - M12 X 1.75 X 45 | ||
| 16 | MM0472 | LOCKWASHER - M12 | ||
| 17 | MM0462 | FLAT WASHER - M12 | ||
| 18 | MM0179 | NUT - M12 X 1.75 | ||
| 19 | EL2654 | GASKET | ||
| 20 | MM0620 | CAPSCREW - M12 X 1.75 X 40 | ||
| 21 | EL2656 | GASKET | ||
| 22 | EL2300 | DUCT | ||
| 23 | EL2652 | GASKET | ||
| 24 | MM0605 | CAPSCREW - M10 X 1.50 X 25 | ||
| 25 | MM0471 | LOCKWASHER - M10 | ||
| 26 | MM0461 | FLAT WASHER - M10 | ||
| 27 | XB8000 | DUCT | ||
| 28 | EL2287 | BAR | ||
| 29 | XB7101 | BOOT | ||
| 30 | XB7097 | BAR | ||
| 31 | XB7102 | TRANSITION | ||
| 32 | EL2651 | GASKET | ||
| 33 | PC1759 | BLOWER, ASSEMBLY (SEE INDEX) | ||
| 34 | EL2655 | GASKET | ||
| 35 | MM0619 | CAPSCREW - M12 X 1.75 X 35 | ||
| 36 | MM0617 | CAPSCREW - M12 X 1.75 X 25 | ||
| 37 | XB8655 | BRACKET |
