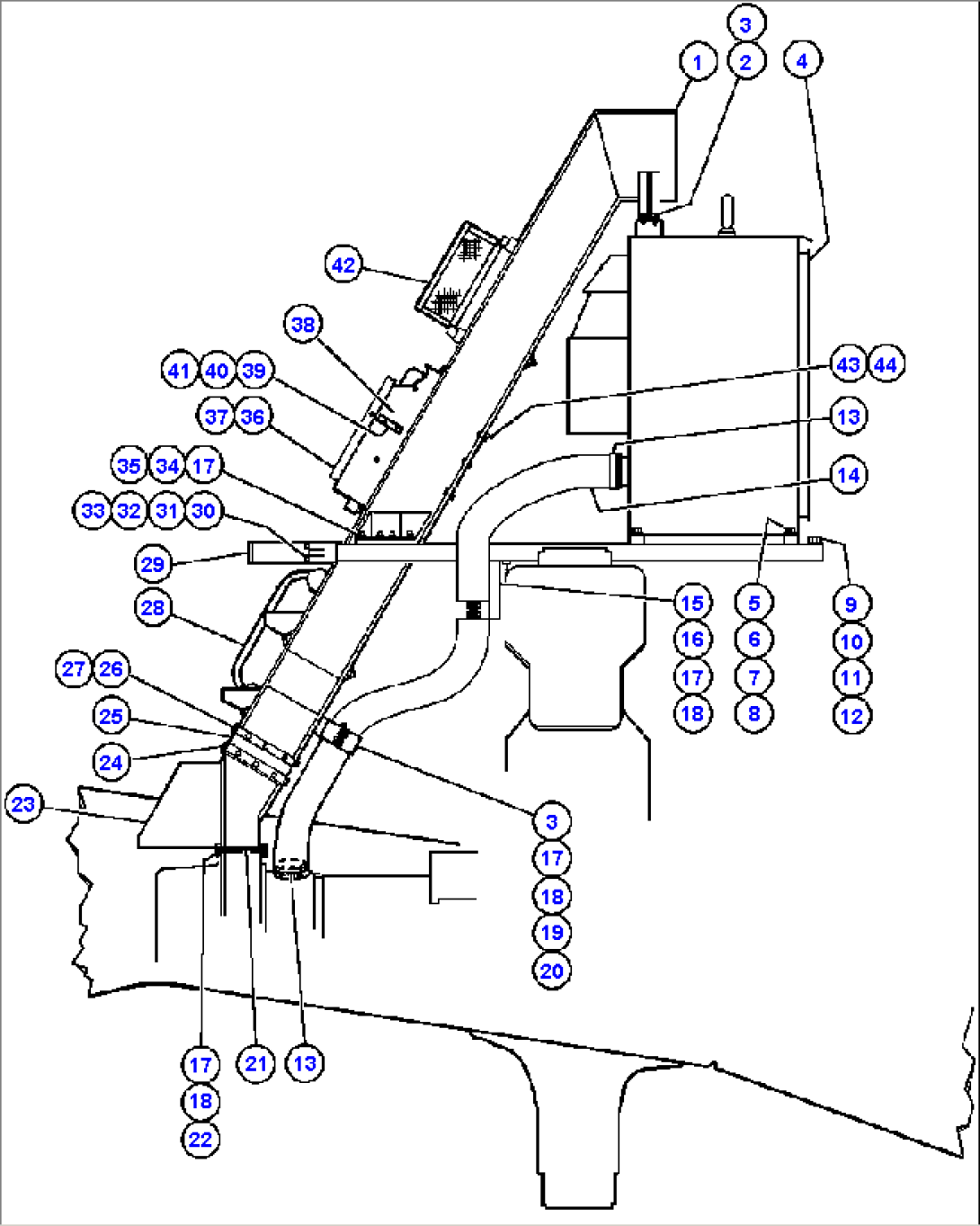

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EH3980 | DUCT, INLET | ||
| 2 | TR1376 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 3 | TR5445 | LOCKWASHER - 1/2" | ||
| 4 | EH1780 | CABINET CONTROL | ||
| 5 | WA4729 | FLAT WASHER - 5/8" (HARDENED) | ||
| 6 | VC1390 | LOCKWASHER - 5/8" | ||
| 7 | VG2260 | CAPSCREW - 5/8" - 11NC X 6" | ||
| 8 | TV1749 | NUT - 5/8" | ||
| 9 | WA4730 | FLAT WASHER - 3/4" (HARDENED) | ||
| 10 | TR4735 | LOCKWASHER - 3/4" | ||
| 11 | VG2651 | CAPSCREW - 3/4" - 10NC X 2 1/2" | ||
| 12 | TR8960 | NUT - 3/4" - 10NC | ||
| 13 | WA1060 | CLAMP - T-BOLT | ||
| 14 | TY8672 | HOSE | ||
| 15 | TZ1189 | CLAMP | ||
| 16 | C1601 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 17 | TC1231 | LOCKWASHER - 3/8" | ||
| 18 | TC1233 | NUT - 3/8" - 16NC | ||
| 19 | TR5445 | LOCKWASHER - 1/2" | ||
| 20 | TW6954 | CLAMP | ||
| 21 | TK1427 | GASKET | ||
| 22 | TD0791 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 23 | TY3653 | TRANSITION | ||
| 24 | TY3656 | BAR | ||
| 25 | TY3655 | BOOT | ||
| 26 | JG9620 | BAR | ||
| 27 | WA4497 | CAPSCREW, SELF - TAPPING | ||
| 28 | (NOT USED THIS APPLICATION) | |||
| 29 | ED6383 | DECK - REAR CENTER | ||
| 30 | WA0362 | FLAT WASHER - 3/4" | ||
| 31 | C1542 | LOCKWASHER - 3/4" | ||
| 32 | C1652 | CAPSCREW - 3/4" - 10NC X 4" | ||
| 33 | C1527 | NUT - 3/4" - 10NC | ||
| 34 | WA0720 | FLAT WASHER - 3/8" (HARDENED) | ||
| 35 | TG5720 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 36 | TY0553 | STRIP, SEAL - TOP & BOTTOM | ||
| 37 | TY0554 | STRIP, SEAL - SIDES | ||
| 38 | PB6489 | PANEL, RECTIFIER (SEE INDEX) | ||
| 39 | VS7026 | COVER, LATCH | ||
| 40 | VF2231 | MACHINE SCREW - #10 - 24NC X 3/8" | ||
| 41 | DC3101 | LOCKWASHER - #10 | ||
| 42 | PB5508 | PANEL, RESISTOR (SEE INDEX) | ||
| 43 | TY3398 | COVER | ||
| 44 | WA1738 | SCREW, SELF LOCKING |
