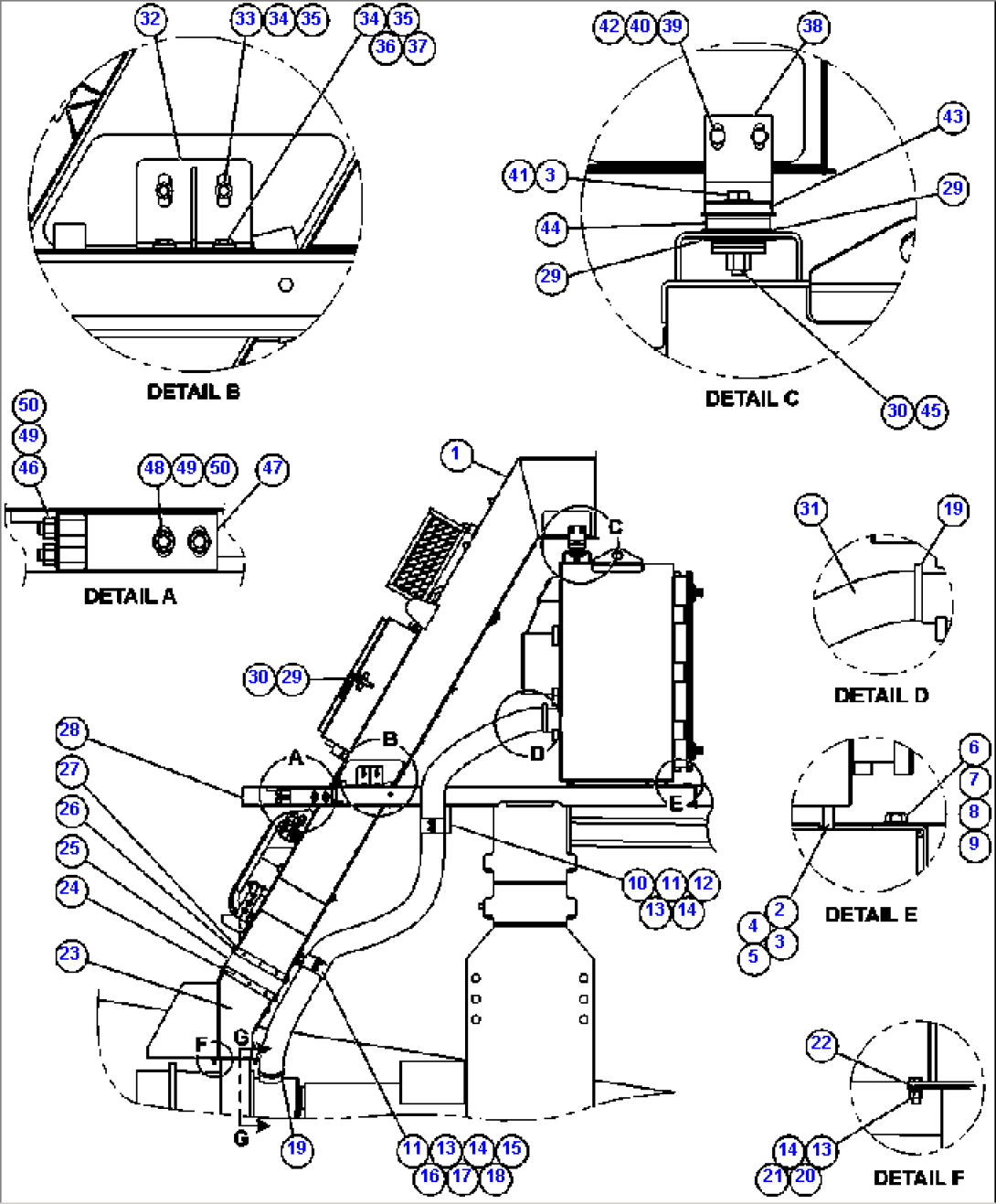

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EK3722 | DUCT, INLET | ||
| 2 | VG2260 | CAPSCREW - 5/8" - 11NC X 6" | ||
| 3 | WA4729 | FLAT WASHER - 5/8" (HARDENED) | ||
| 4 | VC1390 | LOCKWASHER - 5/8" | ||
| 5 | TV1749 | NUT - 5/8" - 11NC | ||
| 6 | VG2651 | CAPSCREW - 3/4" - 10NC X 2 1/2" | ||
| 7 | WA4730 | FLAT WASHER - 3/4" (HARDENED) | ||
| 8 | TR4735 | LOCKWASHER - 3/4" | ||
| 9 | TR8960 | NUT - 3/4" - 10NC | ||
| 10 | TZ1189 | U-CLAMP | ||
| 11 | TW6954 | U-CLAMP | ||
| 12 | C1601 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 13 | TC1231 | LOCKWASHER - 3/8" | ||
| 14 | TC1233 | NUT - 3/8" - 16NC | ||
| 15 | EC9207 | U-CLAMP | ||
| 16 | C1617 | CAPSCREW - 1/2" - 13NC X 2 1/4" | ||
| 17 | TR5445 | LOCKWASHER - 1/2" | ||
| 18 | TR6643 | NUT - 1/2" - 13NC | ||
| 19 | WA1060 | CLAMP, T-BOLT | ||
| 20 | TD0791 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 21 | WA0720 | FLAT WASHER - 3/8" (HARDENED) | ||
| 22 | TK1427 | GASKET | ||
| 23 | TY3653 | TRANSITION | ||
| 24 | TY3656 | BAR | ||
| 25 | TY3655 | BOOT | ||
| 26 | WA4497 | SCREW, SELF-TAPPING - 1/4" X 3/4" | ||
| 27 | JG9620 | BAR | ||
| 28 | ED6383 | DECK, CENTER REAR | ||
| 29 | EK7044 | WASHER | ||
| 30 | TG9226 | LOCKNUT - 5/8" - 13NC | ||
| 31 | TY8672 | HOSE, AIR | ||
| 32 | EL0659 | BRACKET | ||
| 33 | MM0618 | CAPSCREW - M12 X 1.75 X 30 (ZINC) | ||
| 34 | MM0714 | FLAT WASHER - M12 (HARDENED) (ZINC) | ||
| 35 | MM0472 | LOCKWASHER - M12 | ||
| 36 | MM0622 | CAPSCREW - M12 X 1.75 X 50 | ||
| 37 | MM0179 | NUT - M12 X 1.75 | ||
| 38 | EK7043 | PLATE, BENT | ||
| 39 | MM0606 | CAPSCREW - M10 X 1.50 X 30 (ZINC) | ||
| 40 | MM0713 | FLAT WASHER - M10 (HARDENED) (ZINC) | ||
| 41 | C1636 | CAPSCREW - 5/8" - 11NC X 3 1/2" | ||
| 42 | MM0471 | LOCKWASHER - M10 | ||
| 43 | EK7045 | FLAT WASHER | ||
| 44 | WA2591 | MOUNT, RUBBER | ||
| 45 | WA4719 | FLAT WASHER | ||
| 46 | 101182000 | CAPSCREW - M20 X 2.50 X 100 | ||
| 47 | EL0663 | BRACKET | ||
| 48 | MM0075 | CAPSCREW - M20 X 2.50 X 60 | ||
| 49 | MM0465 | WASHER - M20 | ||
| 50 | MM0182 | NUT - M20 X 2.50 | ||
| NS|51 | NOTE: SEE FIG 41830 FOR VIEW G-G. |
