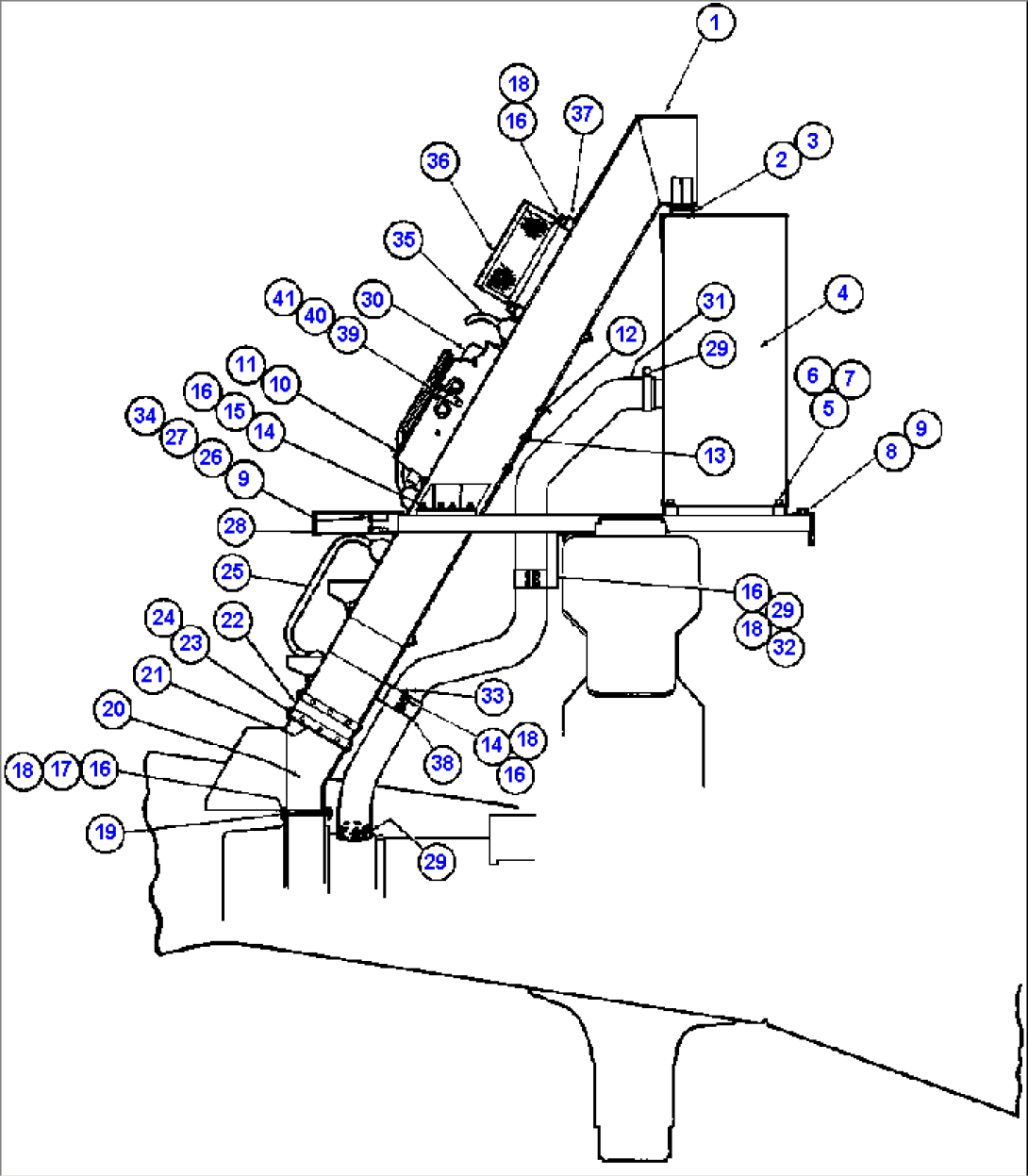

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | ED5564 | INLET DUCT ASSM (SEE FIG 41147) | ||
| 2 | TR1376 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 3 | TR5445 | LOCKWASHER - 1/2" | ||
| 4 | ED2338 | CABINET, CONTROL (SEE FIG 40564) | ||
| 5 | WA4689 | CAPSCREW - 5/8" - 11NC X 3 1/2" | ||
| 6 | WA4729 | FLAT WASHER - 5/8" | ||
| 7 | VC1390 | LOCKWASHER - 5/8" | ||
| 8 | C1646 | CAPSCREW - 3/4" - 10NC X 2 1/2" | ||
| 9 | WA0362 | FLAT WASHER - 3/4" (HARDENED) | ||
| 10 | TY0553 | SEAL, STRIP | ||
| 11 | TY0554 | SEAL, STRIP | ||
| 12 | TY3398 | COVER | ||
| 13 | WA1738 | LOCKSCREW - 3/8" - 16NC X 1" | ||
| 14 | TG5720 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 15 | WA0720 | FLAT WASHER - 3/8" (HARDENED) | ||
| 16 | TC1231 | LOCKWASHER - 3/8" | ||
| 17 | TD0791 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 18 | TC1233 | NUT - 3/8" - 16NC | ||
| 19 | TK1427 | GASKET | ||
| 20 | ED6870 | TRANSITION | ||
| 21 | TY3656 | BAR | ||
| 22 | TY3655 | BOOT | ||
| 23 | JG9620 | BAR | ||
| 24 | WA4497 | CAPSCREW, SELF-TAPPING | ||
| 25 | TZ2254 | HANDRAIL, LOWER | ||
| 26 | C1651 | CAPSCREW - 3/4" - 10NC X 3 3/4" | ||
| 27 | C1542 | LOCKWASHER - 3/4" | ||
| 28 | ED6383 | DECK - REAR CENTER | ||
| 29 | WA1060 | CLAMP, T - BOLT | ||
| 30 | PB6489 | RECTIFIER | ||
| 31 | TY8672 | HOSE, AIR | ||
| 32 | TZ1189 | U-CLAMP | ||
| 33 | EC9207 | U-CLAMP | ||
| 34 | C1527 | NUT - 3/4" - 10NC | ||
| 35 | (NOT USED THIS APPLICATION) | |||
| 36 | PB5066 | PANEL, FILTER | ||
| 37 | TR6643 | NUT - 1/2" - 13NC | ||
| 38 | TW6954 | U-CLAMP | ||
| 39 | VS7026 | COVER, LATCH | ||
| 40 | VF2231 | MACHINE SCREW - #10 - 24NC X 3/8" | ||
| 41 | DC3101 | LOCKWASHER - #10 |
