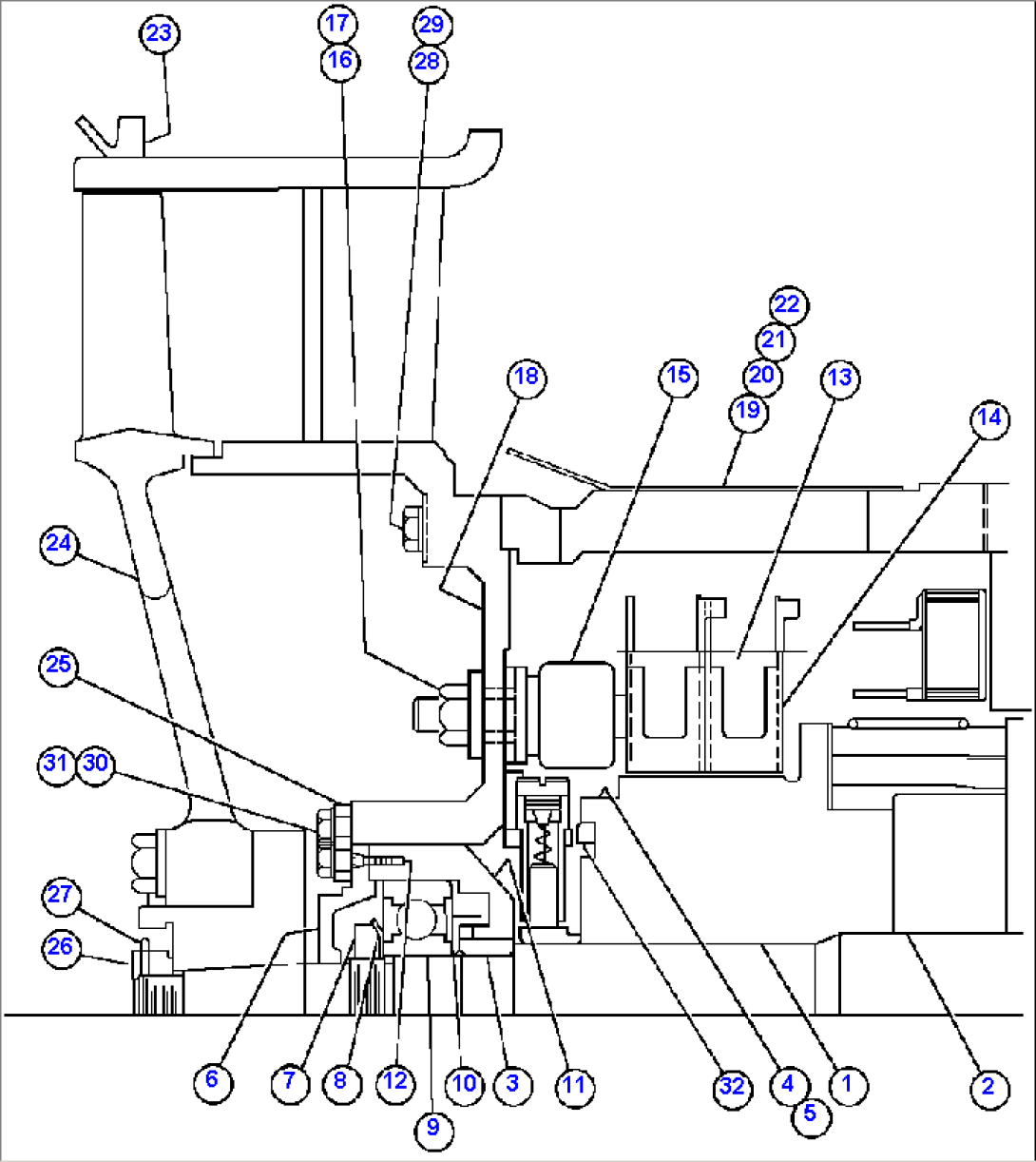

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF0999 | COMMUTATOR | ||
| 2 | BF1000 | SPACER | ||
| 3 | VS9059 | COLLAR | ||
| 4 | BF1002 | CORD | ||
| 5 | BF1003 | VARNISH | ||
| 6 | VS9222 | BEARING CAP | ||
| 7 | VS8884 | NUT, HEX - 1 11/16" - 16 | ||
| 8 | VS9031 | LOCKWASHER | ||
| 9 | H2982 | BALL BEARING | ||
| 10 | VS9032 | FLINGER, LUBRICANT | ||
| 11 | VJ6359 | BEARING HOUSING | ||
| 12 | DC4579 | MACHINE SCREW - #10 - 32NF X 5/8" | ||
| 13 | VE8445 | BRUSH, CARBON | ||
| 14 | VS8587 | HOLDER, BRUSH | ||
| 15 | VJ9471 | SUPPORT | ||
| 16 | DF3500 | LOCKNUT - 1/2" | ||
| 17 | VE3030 | FLAT WASHER - 9/16" | ||
| 18 | VE4255 | FRAME HEAD | ||
| 19 | VS8162 | COVER W/LATCH | ||
| 20 | VS7026 | LATCH | ||
| 21 | VS8161 | COVER W/LATCH | ||
| 22 | VS7026 | LATCH | ||
| 23 | VE8978 | V-RING SEAL | ||
| 24 | VE4256 | FAN | ||
| 25 | VJ7666 | END PLATE | ||
| 26 | VS9062 | NUT | ||
| 27 | VE4836 | COTTER PIN | ||
| 28 | VE4631 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 29 | VE4687 | LOCKWASHER - 3/8" | ||
| 30 | BF1006 | CAPSCREW - 5/16" - 18NC X 1" | ||
| 31 | VE4696 | LOCKWASHER - 5/16" | ||
| 32 | VS9061 | BALANCE WEIGHT |
