| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-87-41110 | TUBE | 1001-1600 | |
| 2 | 22X-47-18220 | NIPPLE | 1001-1600 | |
| 3 | 566-35-12260 | ELBOW | 1001-1600 | |
| 4 | 205-06-21280 | CLIP | 1001-1600 | |
| 5 | 01435-01020 | BOLT | 1001-1600 | |
| 6 | 07213-50610 | CONNECTOR | 1001-1600 |
- Главная
- Каталог запчастей
- Самосвалы
- Hd255 5 s/n 1001 up
- Body
- Body accessory and parts (piping) (for auto lubrication)(#1001 1600)
Поиск по каталогу

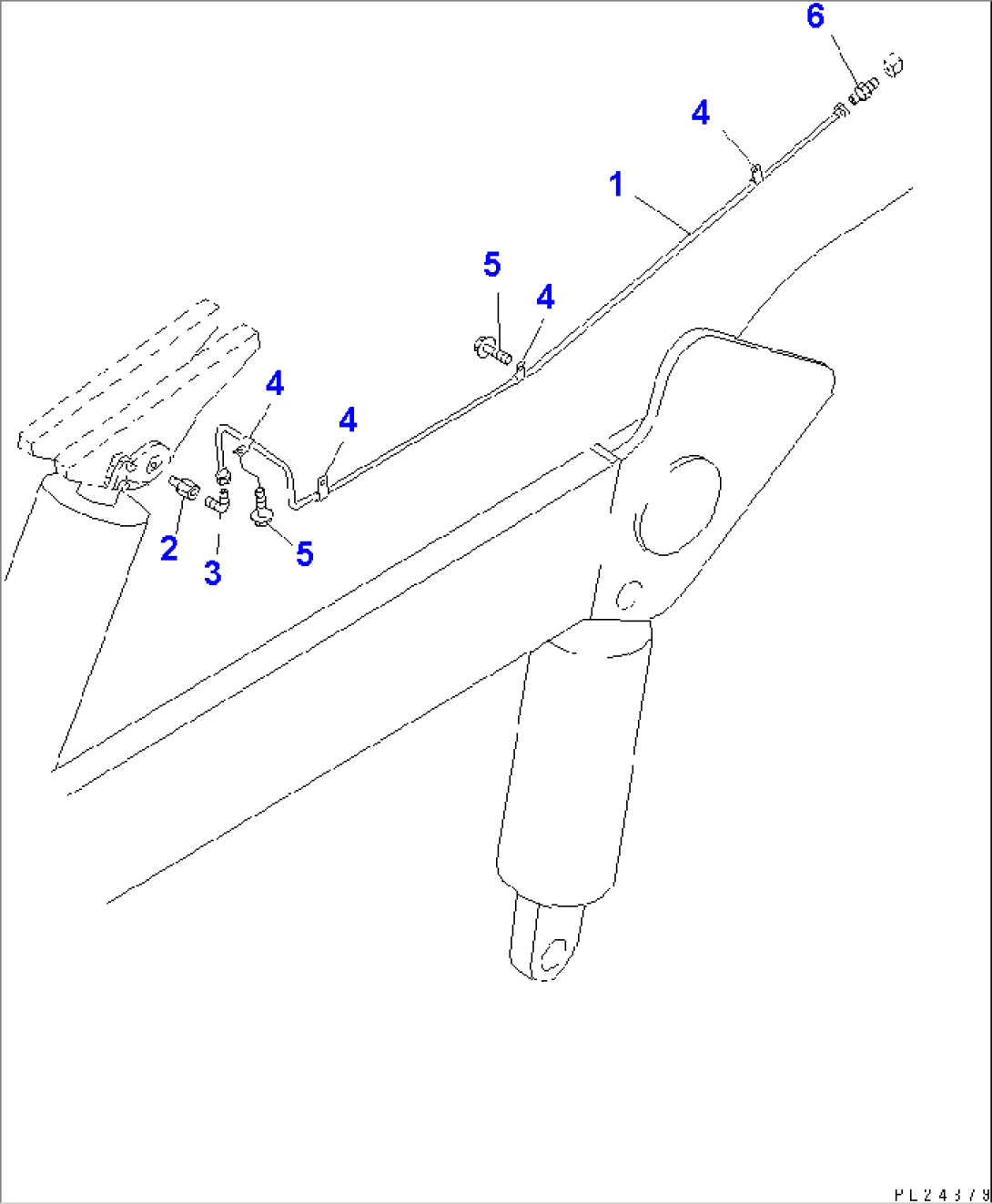

BODY ACCESSORY AND PARTS (PIPING) (FOR AUTO LUBRICATION)(#1001-1600)
