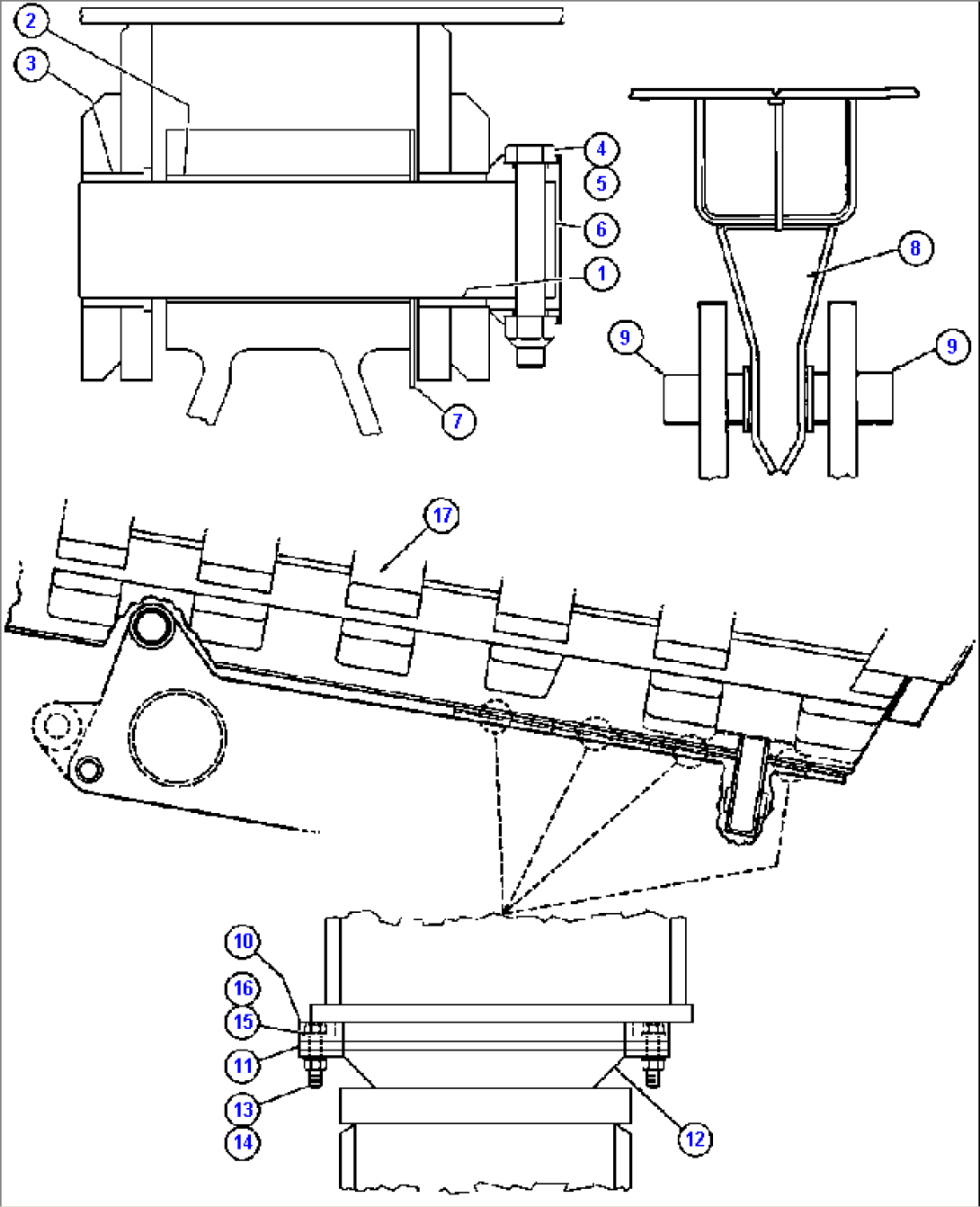

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | ED7962 | BUSHING, BODY PIVOT - OUTER | ||
| 2 | TY8820 | BUSHING, PIVOT (1) | ||
| 3 | EF0745 | BUSHING, BODY PIVOT - INNER | ||
| 4 | MM0738 | CAPSCREW - M36 X 4 | ||
| 5 | MM0700 | LOCKNUT - M36 X 4.00 | ||
| 6 | ED0569 | PIN, BODY PIVOT (1) | ||
| 7 | TY9293 | SHIM (1) | ||
| 8 | EF0742 | GUIDE, BODY | ||
| 9 | TY5960 | GUIDE, BODY | ||
| 10 | TY9406 | PAD, BODY | ||
| 11 | TY9407 | SHIM | ||
| 12 | EG8098 | PAD, BODY | ||
| 13 | TR5445 | LOCKWASHER - 1/2" | ||
| 14 | TR6643 | NUT - 1/2" - 13NC | ||
| 15 | WA0471 | CAPSCREW - 1/2" - 13NC X 2 1/4" | ||
| 16 | WA4728 | FLAT WASHER - 1/2" | ||
| 17 | BODY (ORDER FROM FACTORY) | |||
| NS|18 | AK3822 | NOTE: (1) INCLUDED IN AK3822 BODY PIVOT PIN KIT. |
