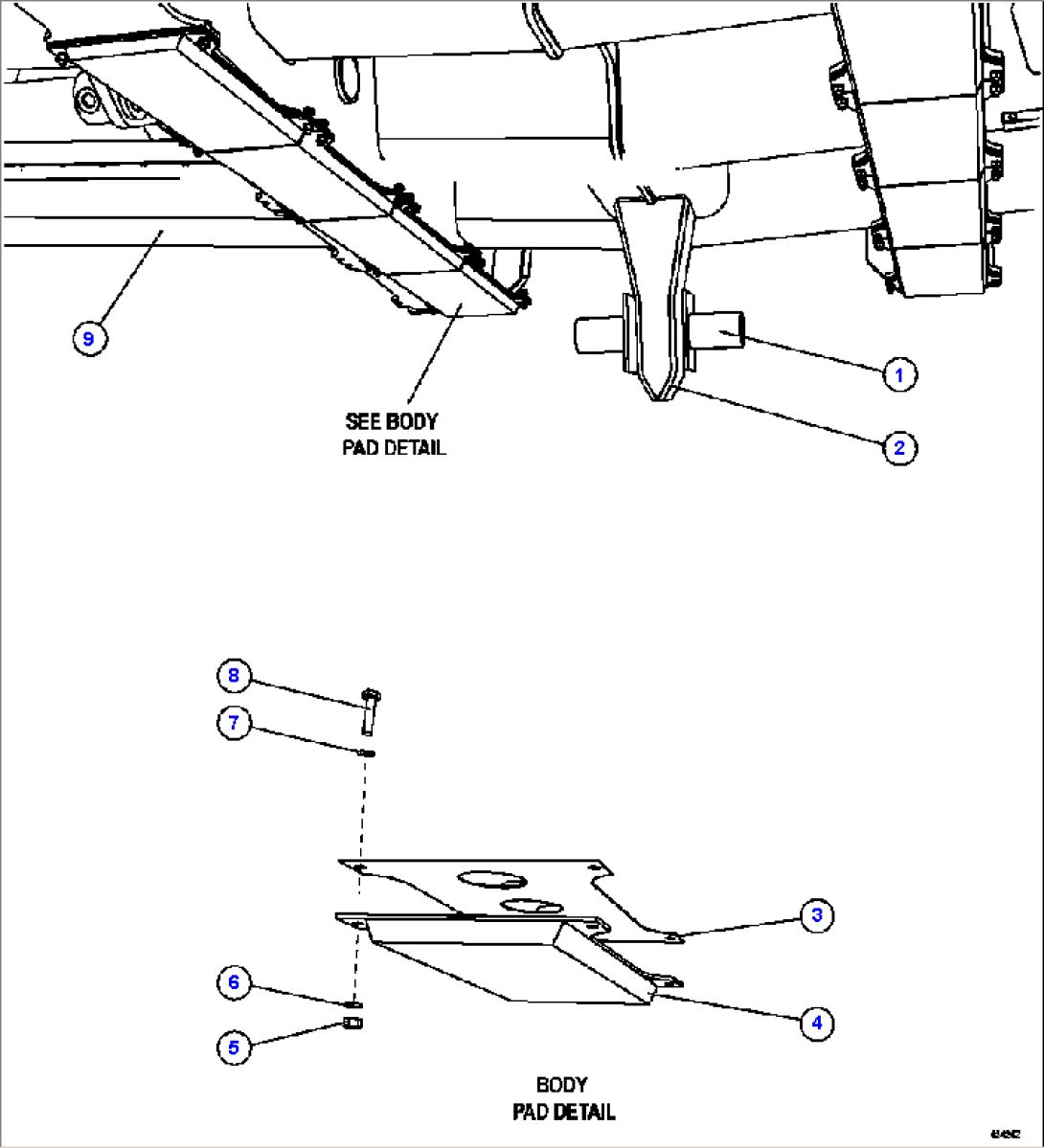

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TY5960 | GUIDE, BODY | ||
| 2 | EF9827 | GUIDE, BODY (1) | ||
| 3 | TY9407 | SHIM | ||
| 4 | EG8098 | PAD, BODY | ||
| 5 | TR6643 | NUT - 1/2" - 13NC | ||
| 6 | TR5445 | LOCKWASHER - 1/2" | ||
| 7 | WA4728 | FLAT WASHER - 1/2" | ||
| 8 | C1619 | CAPSCREW - 1/2" - 13NC X 2 3/4" | ||
| 9 | BODY (ORDER FROM FACTORY) | |||
| NS|10 | NOTE: NS = NOT SHOWN | |||
| NS|11 | XC2293 | BLOCK, SPACER (2) | ||
| NS|12 | C1622 | CAPSCREW - 1/2" - 13NC X 3 1/2" (2) | ||
| NS|13 | NOTE: (1) ONLY FOR USE ON KOMATSU BODIES. | |||
| NS|14 | (2) USED FOR BODY PAD SHIMMING. |
