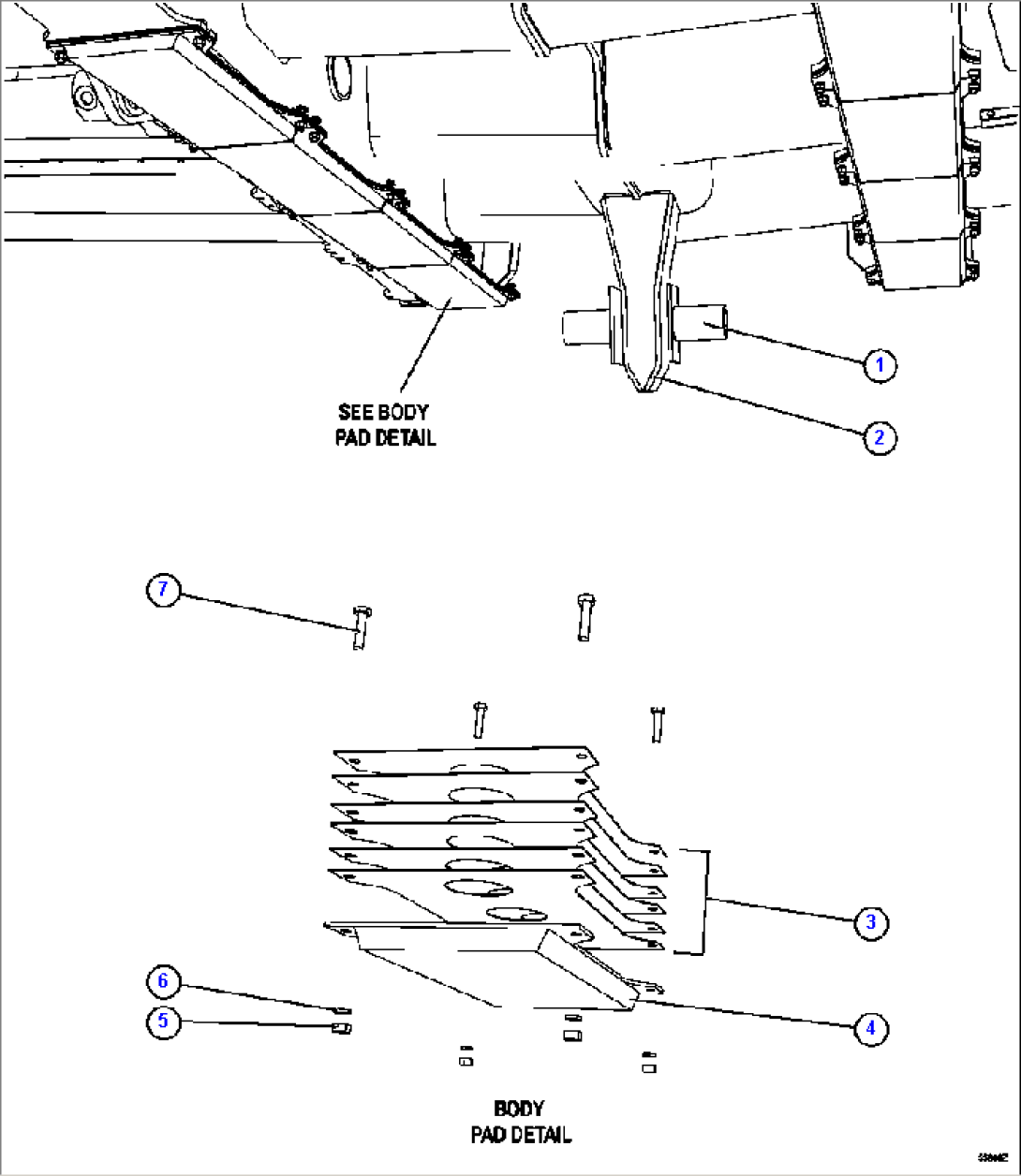

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EF8565 | PLATE, FRAME WEAR | ||
| 2 | EF8562 | GUIDE, BODY | ||
| 3 | TY9407 | SHIM | ||
| 4 | TY9612 | PAD, BODY | ||
| 5 | TR6643 | NUT - 1/2" - 13NC | ||
| 6 | WA4728 | FLAT WASHER - 1/2" | ||
| 7 | C1619 | CAPSCREW - 1/2" - 13NC X 2 3/4" | ||
| NS|8 | NOTE: (1) FOR USE ON KOMATSU BODIES ONLY. |
