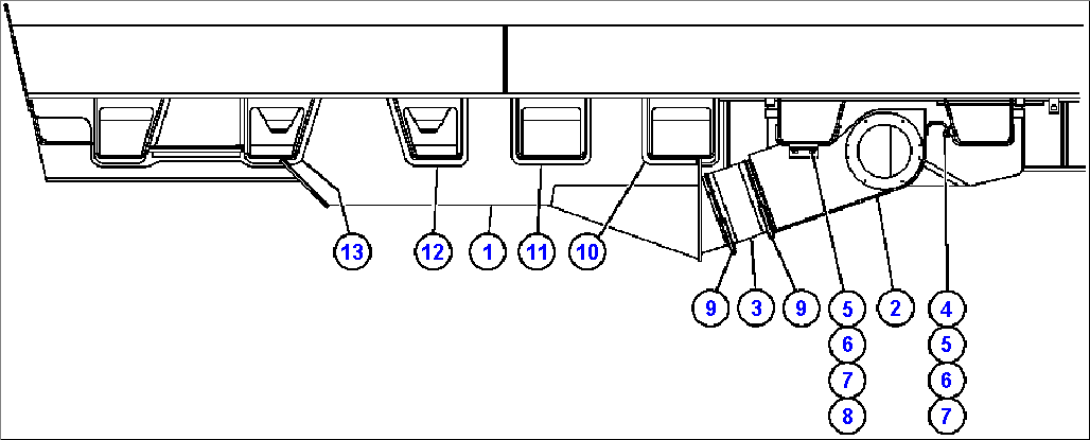

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EG2335 | HEATPAN ASSEMBLY | ||
| 2 | EG6291 | BOX, PIVOT | ||
| 3 | EG2080 | TUBE, EXHAUST | ||
| 4 | EC9485 | PAD, TAPPED | ||
| 5 | MM0462 | FLAT WASHER - M12 | ||
| 6 | MM0472 | LOCKWASHER - M12 | ||
| 7 | MM0032 | CAPSCREW - M12 X 1.75 X 30 | ||
| 8 | EG1808 | PAD, TAPPED | ||
| 9 | EG2084 | CLAMP | ||
| 9 | C0312 | LOCKWASHER - 3/8" | ||
| 9 | C1521 | NUT - 3/8" - 16NC | ||
| 9 | EG2077 | CLAMP | ||
| 9 | EG2083 | U-BOLT | ||
| 10 | EG2337 | PLATE, COVER | ||
| 11 | EG2338 | PLATE, COVER | ||
| 12 | EG2339 | PLATE, COVER | ||
| 13 | EG2340 | PLATE, COVER |
