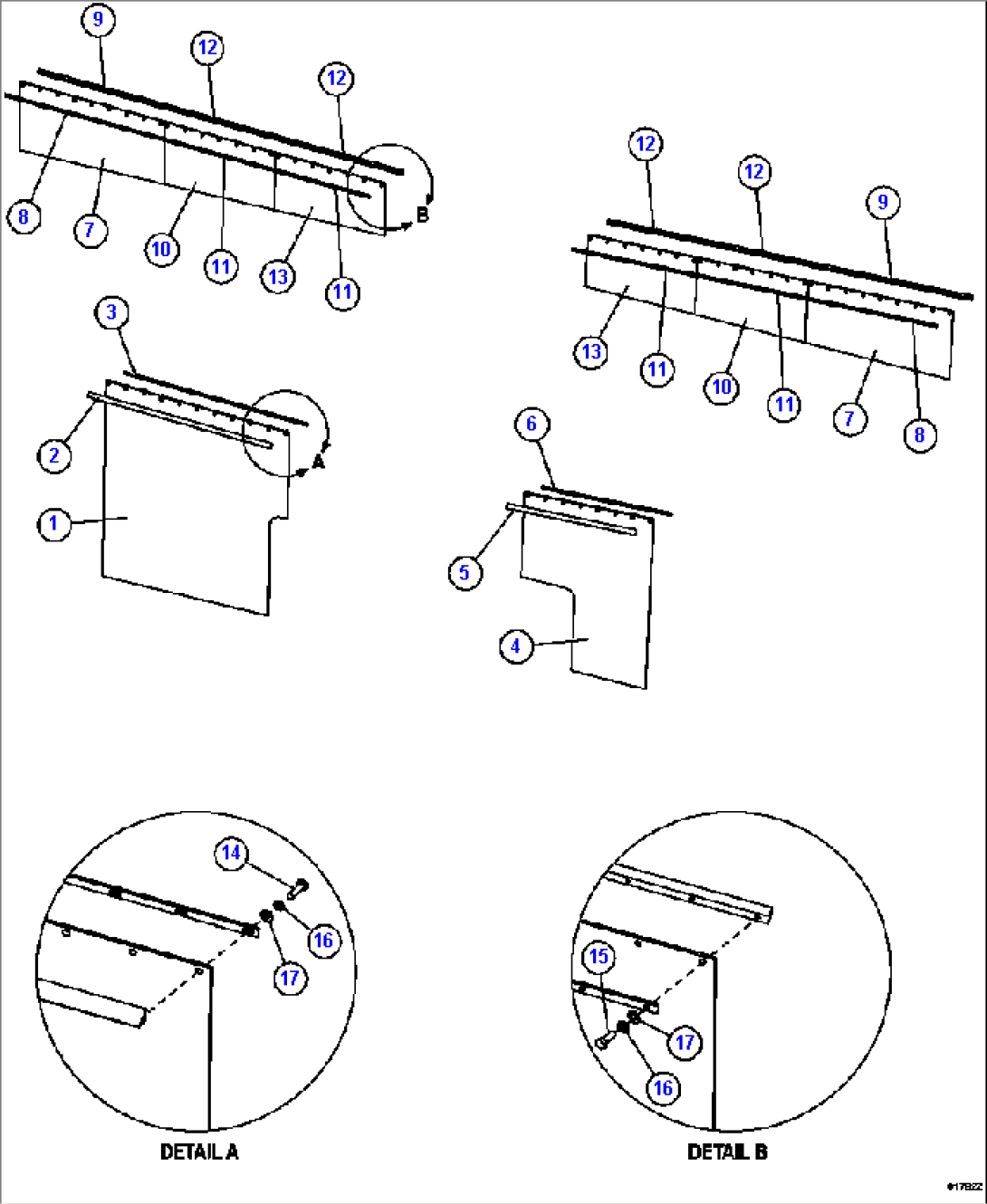

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XB5626 | MUD FLAP | ||
| 2 | EF4831 | BRACKET, ANGLE | ||
| 3 | EF4832 | BAR, FLAT | ||
| 4 | XB5625 | MUD FLAP | ||
| 5 | EF4827 | BRACKET, ANGLE | ||
| 6 | EF4828 | BAR, FLAT | ||
| 7 | XB5627 | MUD FLAP | ||
| 8 | EH5381 | STRIP, BACKUP | ||
| 9 | EG9124 | BAR, FLAT | ||
| 10 | XB5628 | MUD FLAP | ||
| 11 | EF3391 | STRIP, BACKUP | ||
| 12 | EF3392 | BAR, FLAT | ||
| 13 | XB5629 | MUD FLAP | ||
| 14 | MM0607 | CAPSCREW - M10 X 1.50 X 35 | ||
| 15 | MM0606 | CAPSCREW - M10 X 1.50 X 30 | ||
| 16 | MM0471 | LOCKWASHER - M10 | ||
| 17 | MM0461 | FLAT WASHER - M10 |
