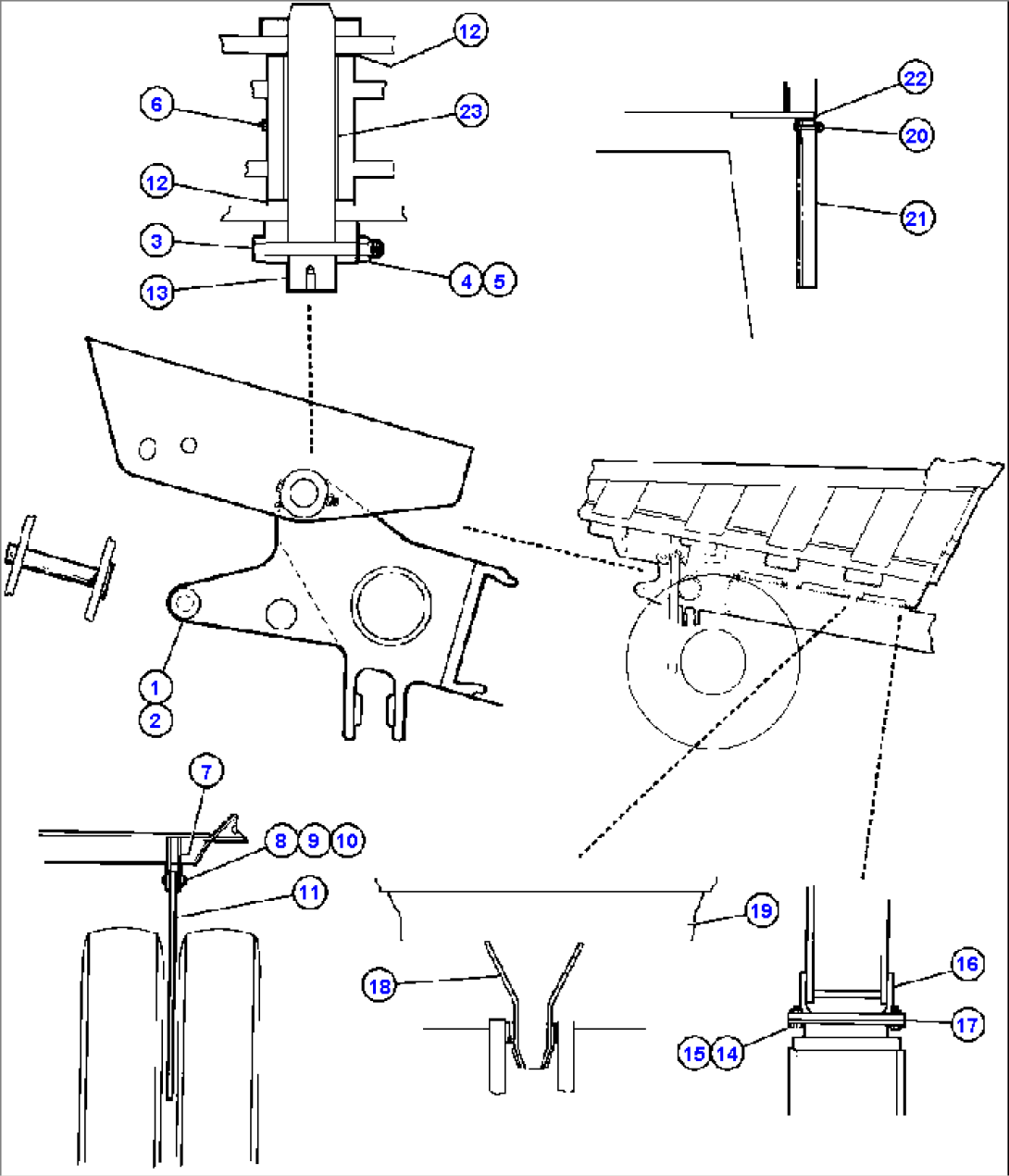

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TX5167 | PIN | ||
| 2 | C2508 | PIN, COTTER | ||
| 3 | VN9202 | CAPSCREW - 1" - 8NC X 7" | ||
| 4 | C1544 | LOCKWASHER - 1" | ||
| 5 | C1531 | NUT - 1" | ||
| 6 | C0315 | FITTING, GREASE | ||
| 7 | TX4961 | EAR, PIVOT | ||
| 8 | F8448 | PIN, HINGE | ||
| 9 | DP0624 | PIN, DRILLED | ||
| 10 | C2303 | PIN, COTTER | ||
| 11 | TA1412 | BAR, ROCK EJECTOR | ||
| 12 | TY3549 | SPACER | ||
| 13 | TX5603 | PIN, PIVOT | ||
| 14 | C1603 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 15 | TG9225 | LOCKNUT - 3/8" | ||
| 16 | JG6718 | CHANNEL | ||
| 17 | JG5652 | PAD, BODY | ||
| 18 | TX5172 | GUIDE, BODY | ||
| 19 | BODY (ORDER FROM FACTORY) | |||
| 20 | DC4979 | CLAMP | ||
| 21 | TY7519 | HOSE, INDICATOR | ||
| 22 | TB0018 | BRACKET | ||
| 23 | VW5507 | BUSHING |
