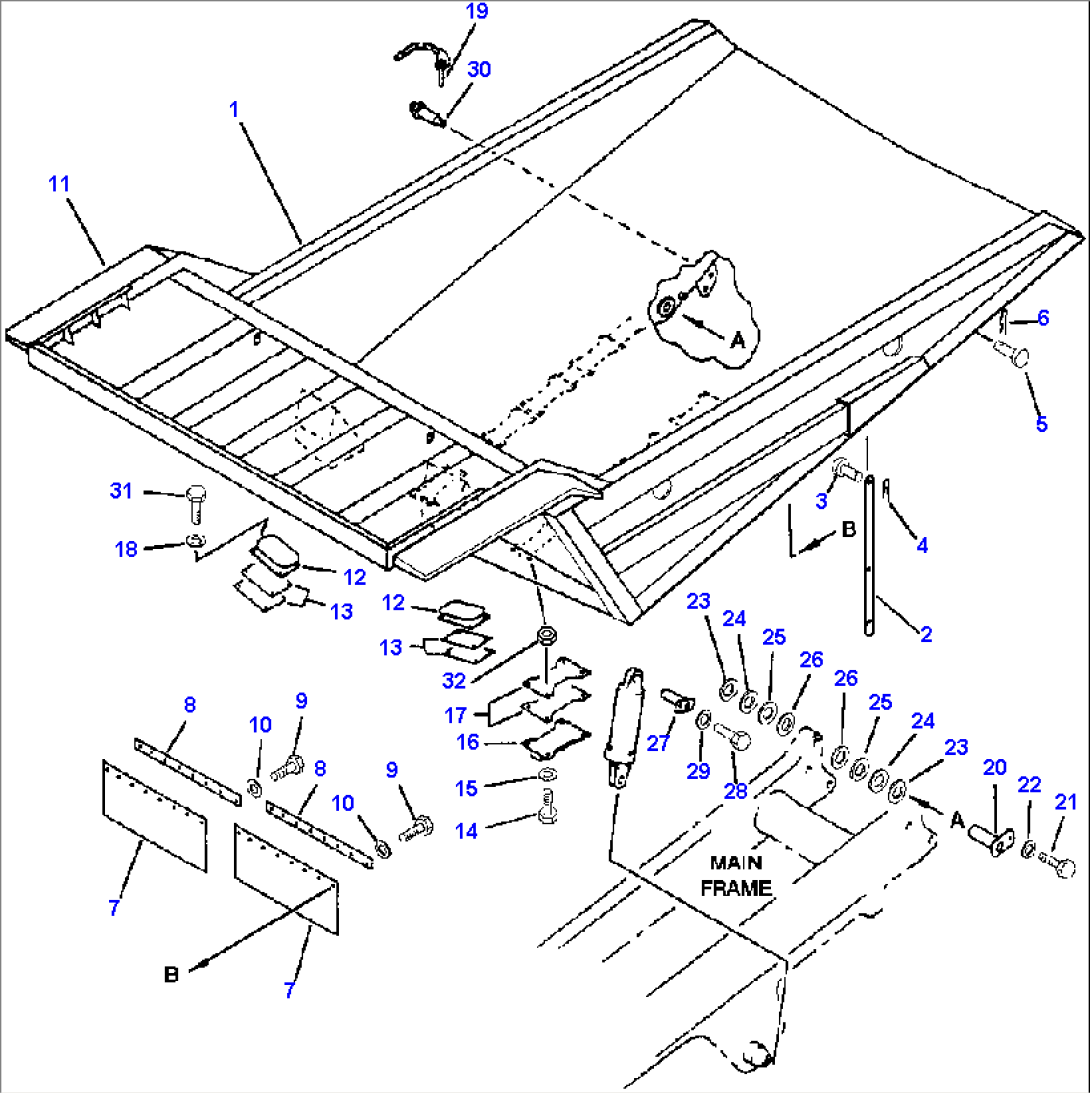

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BODY (ORDER FROM FACTORY) | |||
| 2 | 561-74-61622 | BAR - ROCK EJECTOR | ||
| 3 | 581-74-11360 | PIN | ||
| 4 | 04050-18055 | PIN | ||
| 5 | 04205-11650 | PIN | ||
| 6 | 04052-01664 | PIN | ||
| 7 | 561-74-A3520 | MUD FLAP | ||
| 8 | 561-74-A3510 | PLATE | ||
| 9 | 01010-81235 | CAPSCREW | ||
| 10 | 01602-21236 | LOCKWASHER | ||
| 11 | EH0085 | GUARD, R.H. (OPTIONAL, WELDED TO BODY) | ||
| 12 | 561-74-61521 | PAD | ||
| 13 | 561-74-A3750 | SHIM | ||
| 13 | EF7507 | SHIM | ||
| 14 | MM0053 | CAPSCREW - M12 X 1.75 X 45 | ||
| 15 | MM0705 | WASHER - M12 (HARDENED) | ||
| 16 | 561-74-A3781 | PAD | ||
| 17 | 561-74-A3740 | SHIM | ||
| 17 | 561-83-69540 | SHIM | ||
| 17 | 561-83-69550 | SHIM | ||
| 17 | 561-83-69560 | SHIM | ||
| 17 | 561-83-69570 | SHIM | ||
| 18 | MM0706 | WASHER - M16 (HARDENED) | ||
| 19 | 569-74-61470 | PIN | ||
| 20 | 561-74-61740 | PIN | ||
| 21 | 01010-81635 | CAPSCREW | ||
| 22 | 421-70-11280 | WASHER | ||
| 23 | 568-74-12650 | SPACER - 6.0 MM | ||
| 24 | 568-74-11421 | SPACER - 2.3 MM | ||
| 25 | 568-74-12660 | SPACER - 1.0 MM | ||
| 26 | 568-74-12670 | SPACER - 4.5 MM | ||
| 27 | 561-52-61210 | PIN | ||
| 28 | 01010-81430 | CAPSCREW | ||
| 29 | 569-40-61710 | WASHER | ||
| 30 | 561-86-68141 | PIN | ||
| 31 | MM0086 | CAPSCREW - M16 X 2.00 X 60 | ||
| 32 | MM0720 | NUT - M12 X 1.75 | ||
| NS|38 | NOTE: NS = NOT SHOWN | |||
| NS|39 | EG6396 | GUIDE, BODY |
