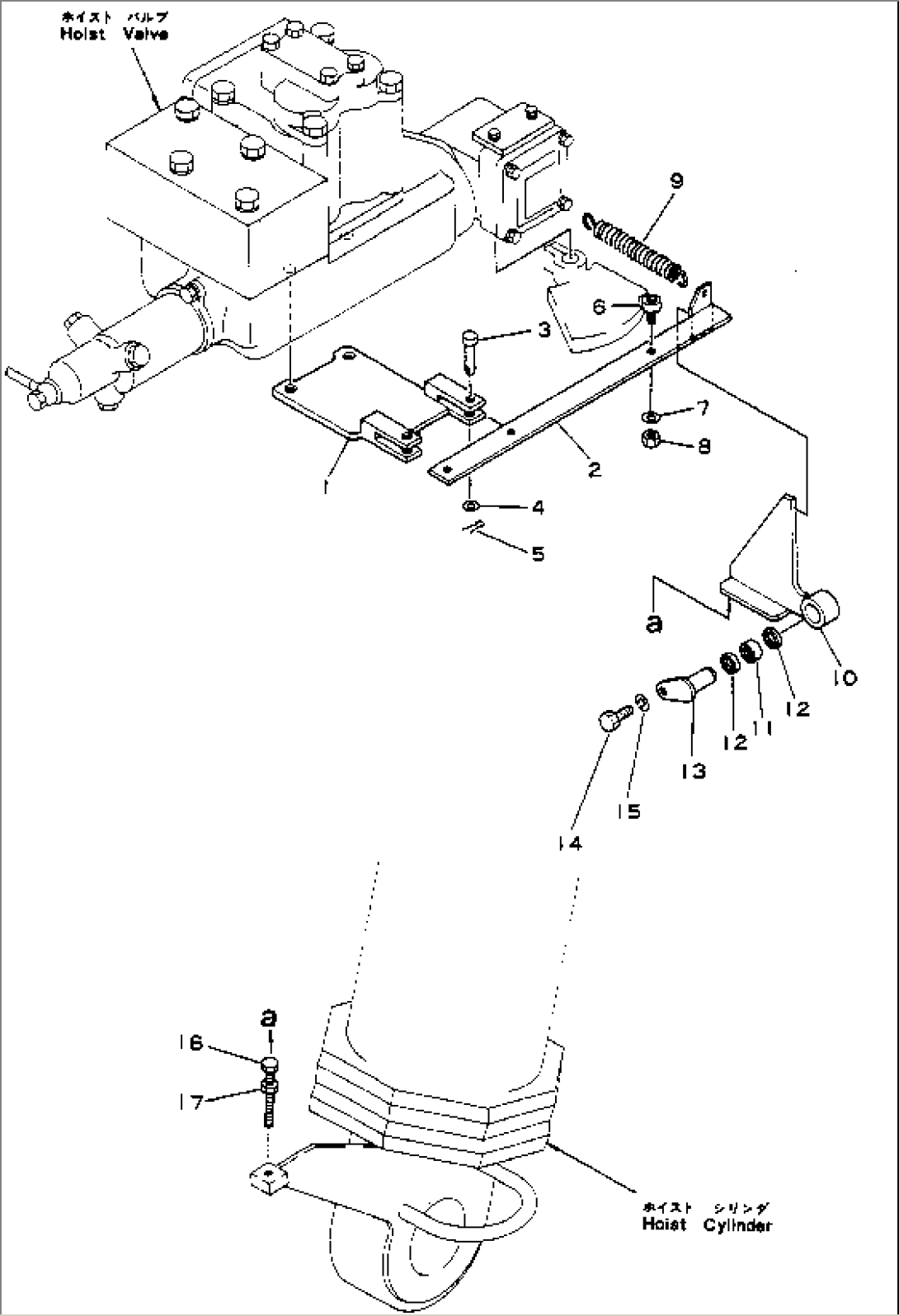

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-43-13450 | BRACKET | 1002- | |
| 2 | 568-43-13410 | LEVER | 1002- | |
| 3 | 04205-11030 | PIN | 1002- | |
| 4 | 01641-21016 | WASHER | 1002- | |
| 5 | 04050-13015 | PIN | 1002- | |
| 6 | 411-43-16580 | CAM | 1002- | |
| 7 | 01641-20812 | WASHER | 1002- | |
| 8 | 01598-00809 | NUT | 1002- | |
| 9 | 566-43-17590 | SPRING | 1002- | |
| 10 | 568-43-13420 | LEVER | 1002- | |
| 11 | 06120-01612 | BEARING | 1002- | |
| 12 | 06122-01603 | SEAL | 1002- | |
| 13 | 566-43-13231 | PIN | 1002- | |
| 14 | 01010-50816 | BOLT | 1002- | |
| 15 | 01602-20825 | WASHER | 1002- | |
| 16 | 01016-51270 | BOLT | 1002- | |
| 17 | 01580-11210 | NUT | 1002- |
