| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-838-1110 | EDGE,CENTER (L=220MM) | 85001- | |
| 2 | 421-838-1120 | EDGE,SIDE (L=180MM) | 85001- | |
| 3 | 02091-11600 | BOLT | 85001- | |
| 4 | 01643-22460 | WASHER | 85001- | |
| 5 | 02290-11625 | NUT | 85001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n 85001 90215 (ecot3)
- Work equipment
- Bolt on cutting edge (for segment)(#85001 )
Поиск по каталогу

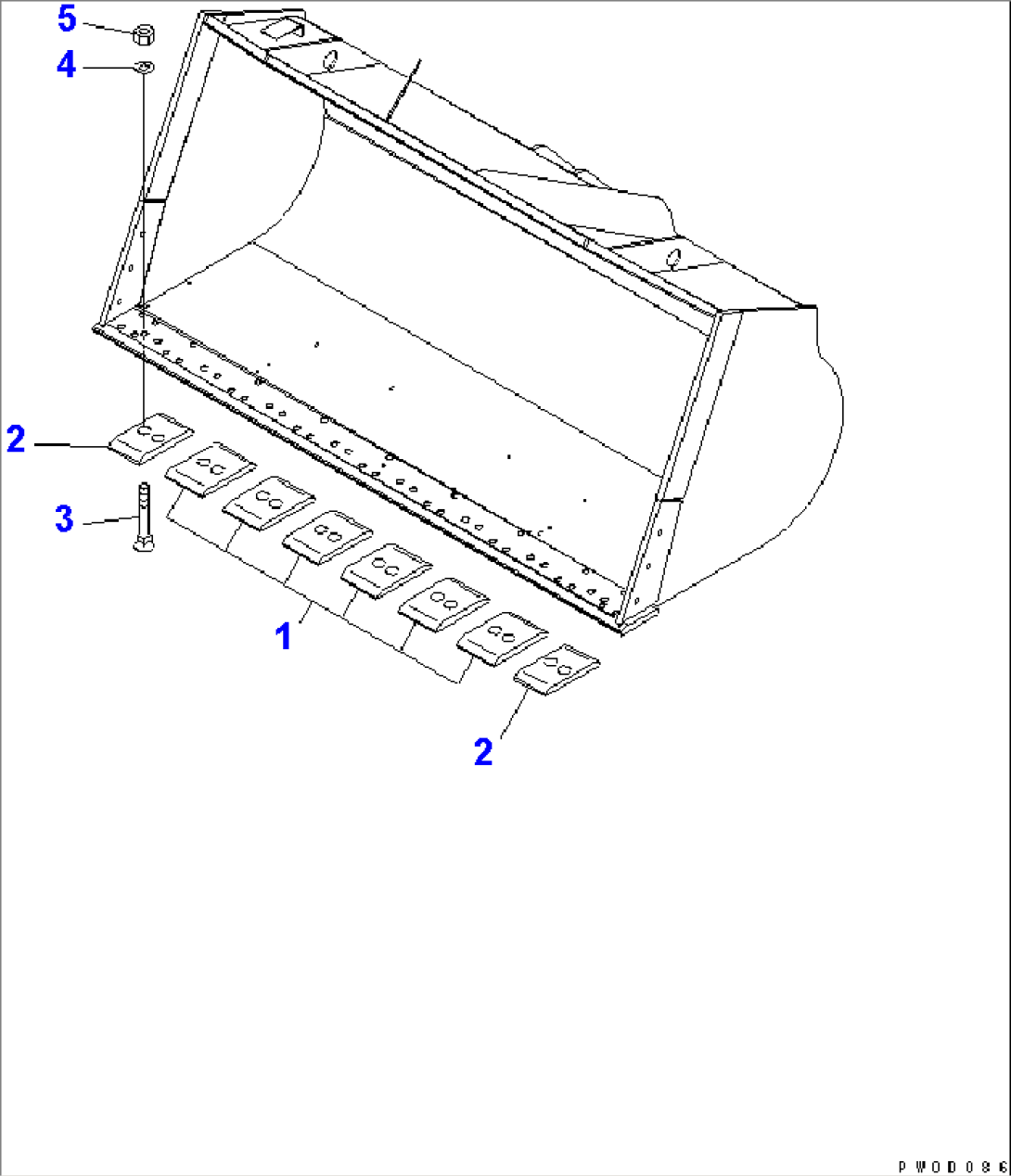

BOLT ON CUTTING EDGE (FOR SEGMENT)(#85001-)
