| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-838-1110 | EDGE,CENTER (L=220MM) | 60001- | |
| 2 | 421-838-1120 | EDGE,SIDE (L=180MM) | 60001- | |
| 3 | 421-T65-1121 | EDGE (WELDED) | 60001-60021 | |
| 4 | 02091-11600 | BOLT | 60001- | |
| 5 | 01643-22460 | WASHER | 60001- | |
| 6 | 02290-11625 | NUT | 60001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa430 5 s/n 60001 up
- Work equipment
- Bolt on cutting edge (for segument)
Поиск по каталогу

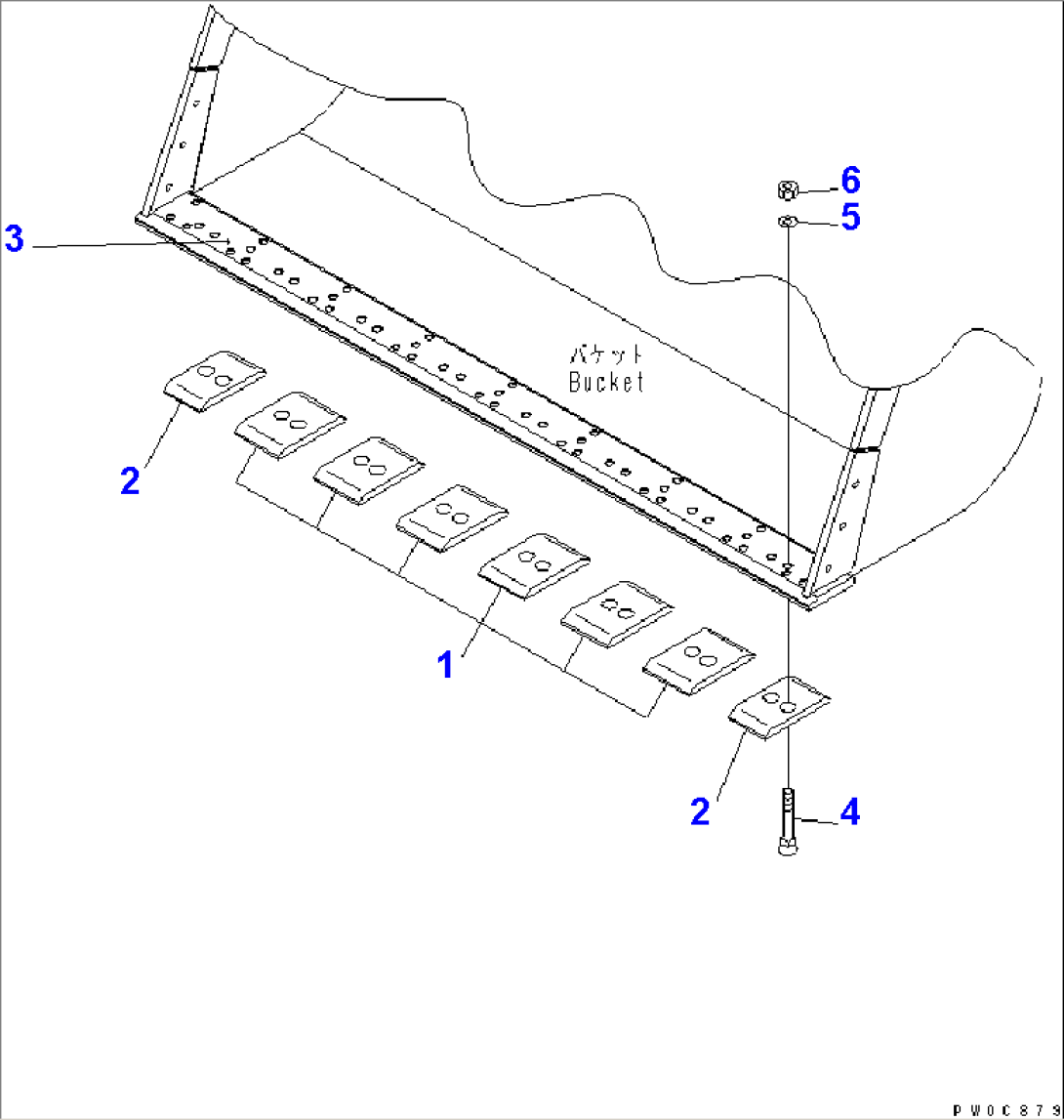

BOLT ON CUTTING EDGE (FOR SEGUMENT)
