| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-815-3210 | EDGE | A37001- | |
| 2 | 421-815-3220 | EDGE | A37001- | |
| 3 | 02090-11485 | BOLT | A37001- | |
| 4 | 02290-11422 | NUT | A37001- | |
| 5 | 01643-32260 | WASHER | A37001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 5l s/n a37001 up
- Work equipment
- Bolt on cutting edge (large side edge type)
Поиск по каталогу

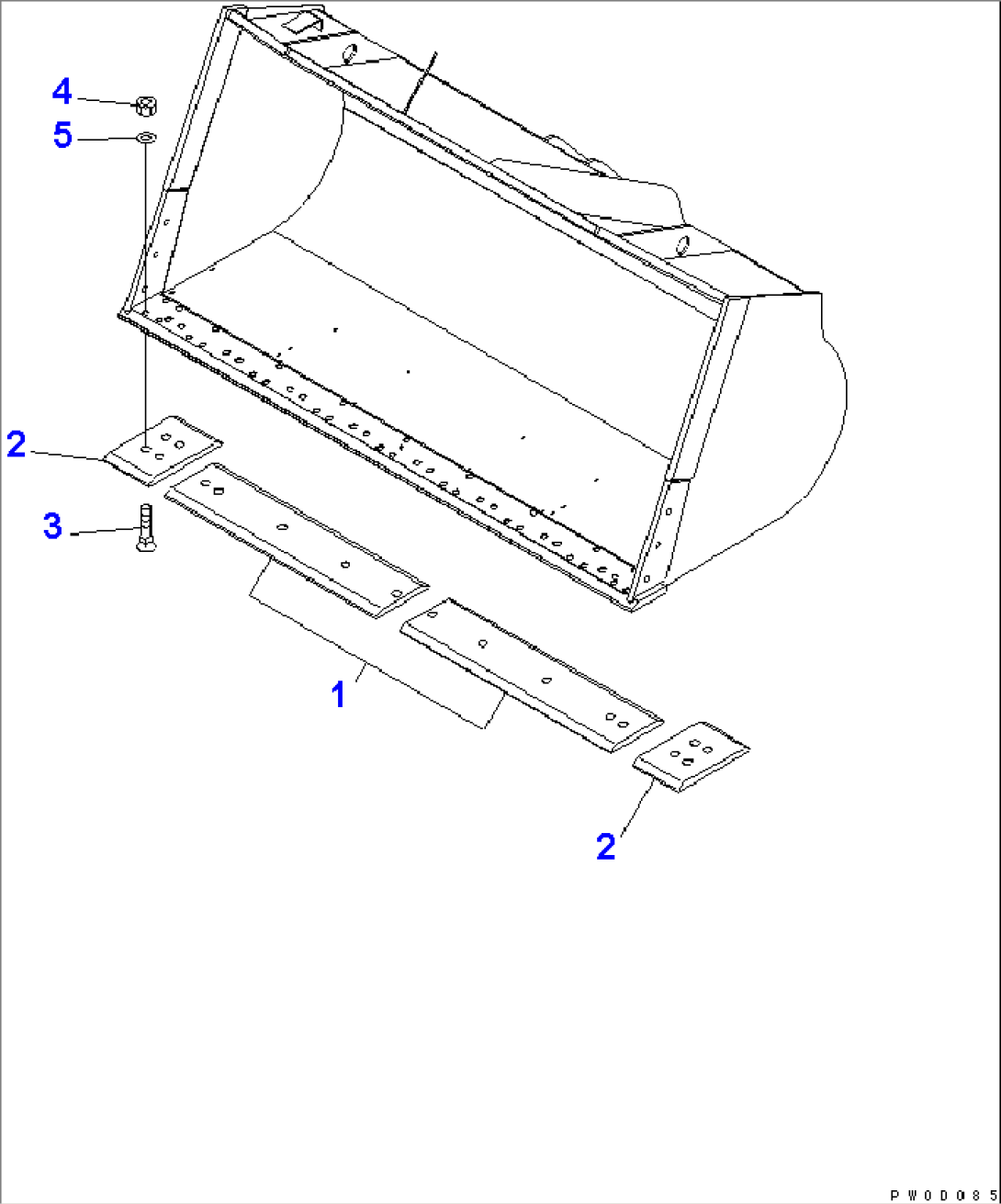

BOLT-ON CUTTING EDGE (LARGE SIDE EDGE TYPE)
