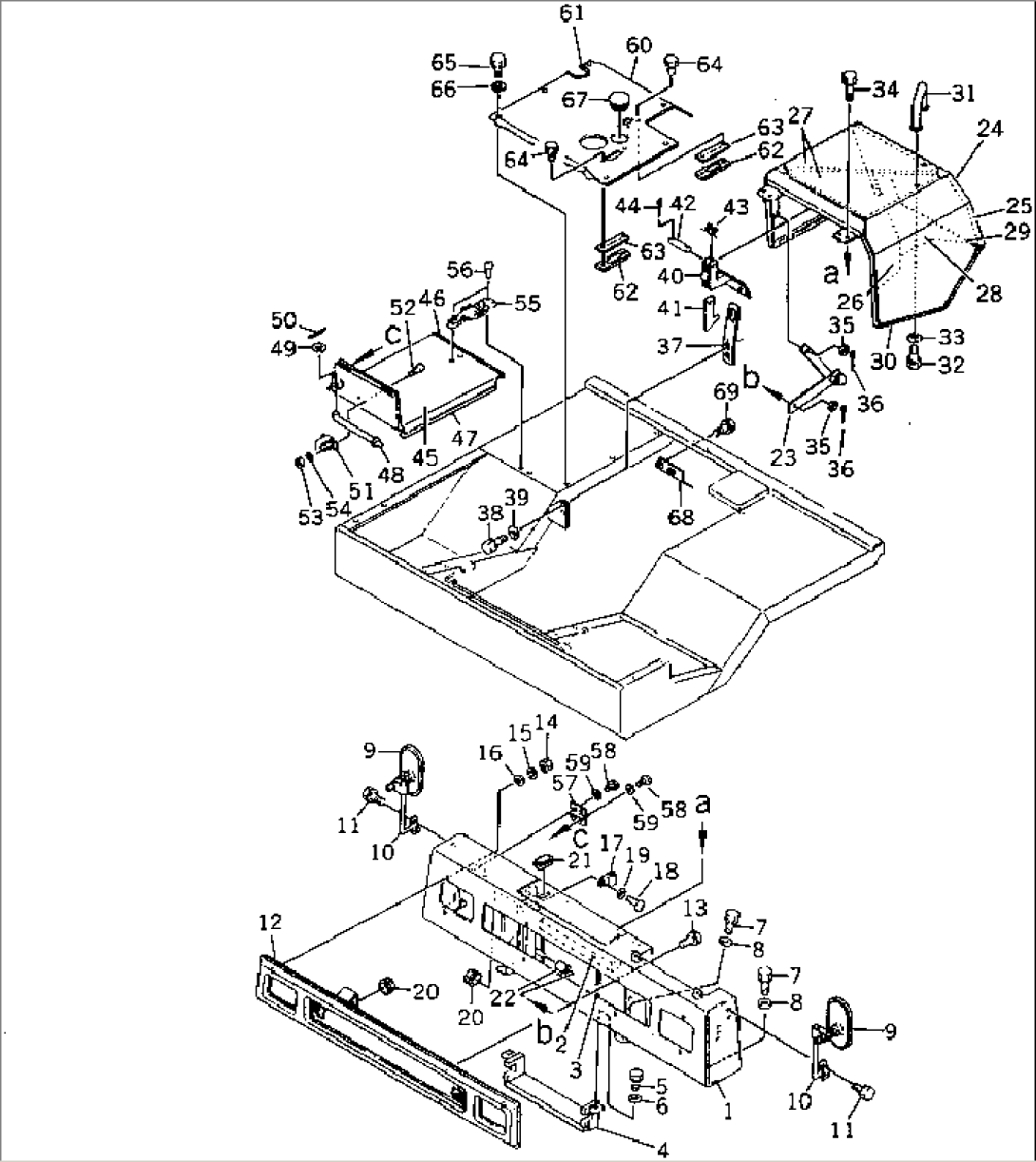

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | YM172647-61100 | FRONT COVER ASS'Y | 00501- | |
| 2 | YM172738-61300 | SPONGE | 00501- | |
| 3 | YM172738-61310 | SPONGE | 00501- | |
| 4 | YM172738-61650 | COVER ASS'Y | 00501- | |
| 5 | YM26013-080162 | BOLT | 00501- | |
| 6 | YM22137-080000 | WASHER | 00501- | |
| 7 | YM26013-080162 | BOLT | 00501- | |
| 8 | YM22137-080000 | WASHER | 00501- | |
| 9 | YM194630-64110 | MIRROR | 00501- | |
| 10 | YM172730-69150 | STAY,L.H. | 00501- | |
| YM172730-69190 | STAY,R.H. | 00501- | ||
| 11 | YM26013-080162 | BOLT | 00501- | |
| 12 | YM172647-61400 | PANEL ASS'Y,FRONT | 00501- | |
| 13 | YM26013-080162 | BOLT | 00501- | |
| 14 | YM26716-080002 | NUT | 00501- | |
| 15 | YM22217-080000 | WASHER,SPRING | 00501- | |
| 16 | YM22137-080000 | WASHER | 00501- | |
| 17 | YM172135-14250 | CATCHER,MAGNET | 00501- | |
| 18 | YM26557-040122 | SCREW | 00501- | |
| 19 | YM22137-040000 | WASHER | 00501- | |
| 20 | YM933110-58500 | GROMMET | 00501- | |
| 21 | YM1A1040-58000 | GROMMET | 00501- | |
| 22 | YM172112-65780 | BOSS,STOPPER | 00501- | |
| 23 | YM172116-61362 | LINK ASS'Y | 00501- | |
| 24 | YM172647-65100 | BONNET ASS'Y | 00501- | |
| 25 | YM172738-65250 | SEAT | 00501- | |
| 26 | YM172738-65260 | SEAT | 00501- | |
| 27 | YM172647-65270 | SEAT | 00501- | |
| 28 | YM172738-65290 | SEAT | 00501- | |
| 29 | YM172738-65301 | RUBBER | 00501- | |
| 30 | YM172738-65310 | RUBBER | 00501- | |
| 31 | YM194262-62400 | BAR | 00501- | |
| 32 | YM26013-080162 | BOLT | 00501- | |
| 33 | YM22137-080000 | WASHER | 00501- | |
| 34 | YM26013-100252 | BOLT | 00501- | |
| 35 | YM22137-060000 | WASHER | 00501- | |
| 36 | YM22417-200200 | PIN,COTTER | 00501- | |
| 37 | YM172122-65430 | PLATE | 00501- | |
| 38 | YM26013-100252 | BOLT | 00501- | |
| 39 | YM22137-100000 | WASHER | 00501- | |
| 40 | YM172122-65440 | LEVER | 00501- | |
| 41 | YM172734-65250 | CATCHER | 00501- | |
| 42 | YM172734-65260 | PIN | 00501- | |
| 43 | YM172734-65270 | SPRING | 00501- | |
| 44 | YM22417-200200 | PIN,COTTER | 00501- | |
| 45 | YM172647-61500 | COVER ASS'Y,BATTERY | 00501- | |
| 46 | YM172738-61530 | RUBBER | 00501- | |
| 47 | YM172738-61520 | RUBBER | 00501- | |
| 48 | YM172738-61540 | ROD | 00501- | |
| 49 | YM22137-080000 | WASHER | 00501- | |
| 50 | YM22417-200160 | PIN,COTTER | 00501- | |
| 51 | YM172614-65280 | SPRING | 00501- | |
| 52 | YM26557-050122 | SCREW | 00501- | |
| 53 | YM26716-050002 | NUT | 00501- | |
| 54 | YM22217-050000 | WASHER,SPRING | 00501- | |
| 55 | YM172112-14650 | CLAMP | 00501- | |
| 56 | YM26557-050122 | SCREW | 00501- | |
| 57 | YM1S4200-41170 | HINGE | 00501- | |
| 58 | YM26557-060162 | SCREW | 00501- | |
| 59 | YM22217-060000 | WASHER,SPRING | 00501- | |
| 60 | YM172647-61600 | COVER,TRANSMISSION | 00501- | |
| 61 | YM172738-61630 | RUBBER | 00501- | |
| 62 | YM172647-61750 | PLATE | 00501- | |
| 63 | YM172647-61780 | RUBBER | 00501- | |
| 64 | YM26018-060124 | BOLT | 00501- | |
| 65 | YM26013-080162 | BOLT | 00501- | |
| 66 | YM22137-080000 | WASHER | 00501- | |
| 67 | YM172730-61890 | CAP | 00501- | |
| 68 | YM172647-61650 | CAP | 00501- | |
| 69 | YM26013-080202 | BOLT | 00501- |
