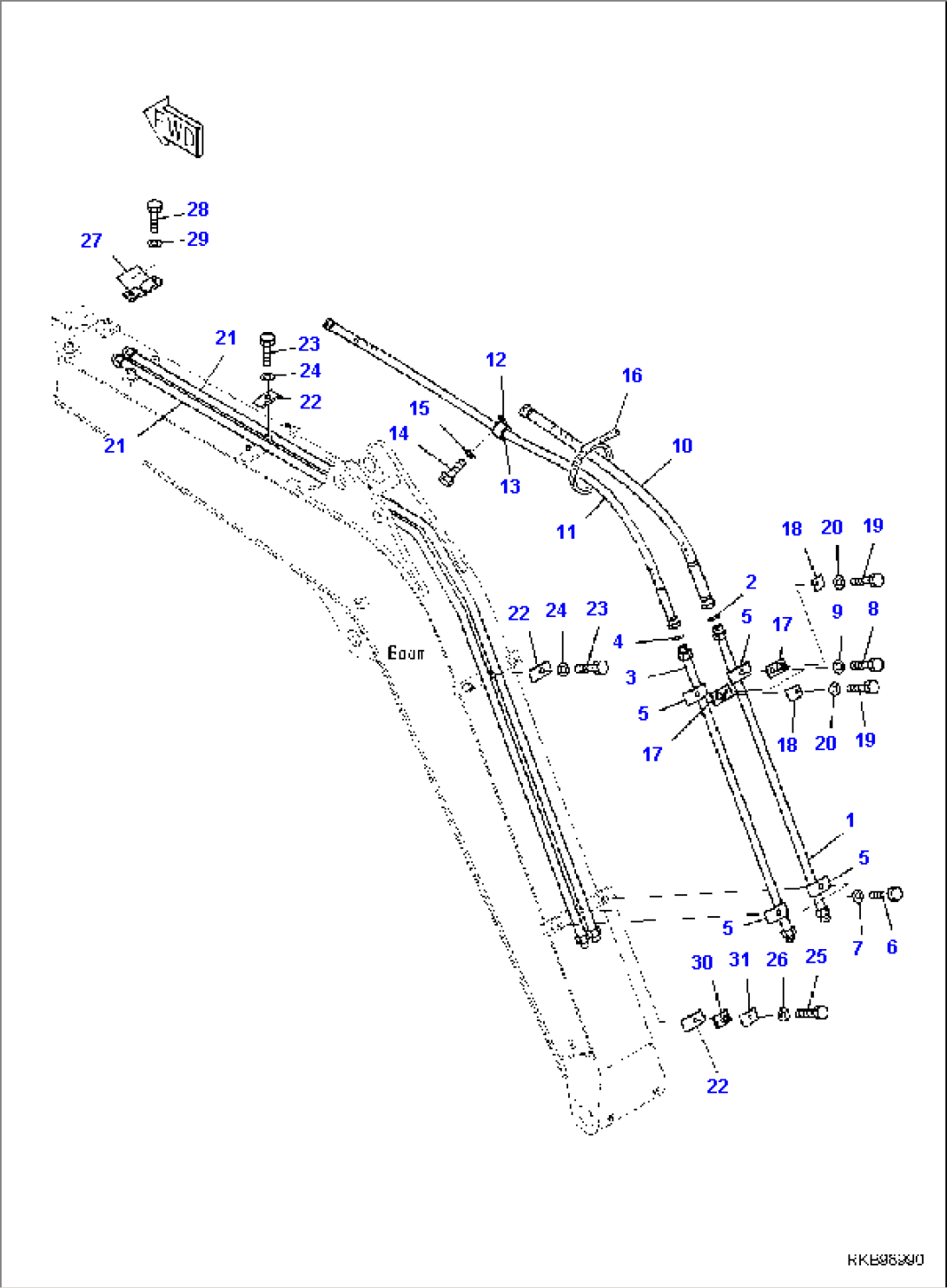

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22M-62-R7420 | TUBE | F30003- | |
| 2 | 02896-11015 | O-RING | F30003- | |
| 3 | 22M-62-R7430 | TUBE | F30003- | |
| 4 | 02896-11012 | O-RING | F30003- | |
| 5 | 22M-62-27321 | CLAMP | F30003- | |
| 6 | 01010-81025 | BOLT | F30003- | |
| 7 | 01643-31032 | WASHER | F30003- | |
| 8 | 01010-81035 | BOLT | F30003- | |
| 9 | 01643-31032 | WASHER | F30003- | |
| 10 | 22M-62-35751 | HOSE | F30003- | |
| 11 | 22M-62-35611 | HOSE, ASSEMBLY | F30003- | |
| 12 | 04434-53211 | CLAMP | F30003- | |
| 13 | 07095-20523 | RUBBER | F30003- | |
| 14 | 01010-81020 | BOLT | F30003- | |
| 15 | 01643-31032 | WASHER | F30003- | |
| 16 | 08034-20834 | CLAMP | F30003- | |
| 17 | 22N-973-3241 | CLAMP | F30003- | |
| 18 | 22F-973-3670 | CLAMP | F30003- | |
| 19 | 01010-80820 | BOLT | F30003- | |
| 20 | 01643-30823 | WASHER | F30003- | |
| 21 | 22M-62-R3710 | TUBE | F30003- | |
| 22 | 22M-62-27321 | CLAMP | F30003- | |
| 23 | 01010-81025 | BOLT | F30003- | |
| 24 | 01643-31032 | WASHER | F30003- | |
| 25 | 01010-81050 | BOLT | F30003- | |
| 26 | 01643-31032 | WASHER | F30003- | |
| 27 | 22M-973-2490 | CLAMP | F30003- | |
| 28 | 01010-81025 | BOLT | F30003- | |
| 29 | 01643-31032 | WASHER | F30003- | |
| 30 | 22N-973-3231 | CLAMP | F30003- | |
| 31 | 22F-973-3680 | CLAMP | F30003- |
