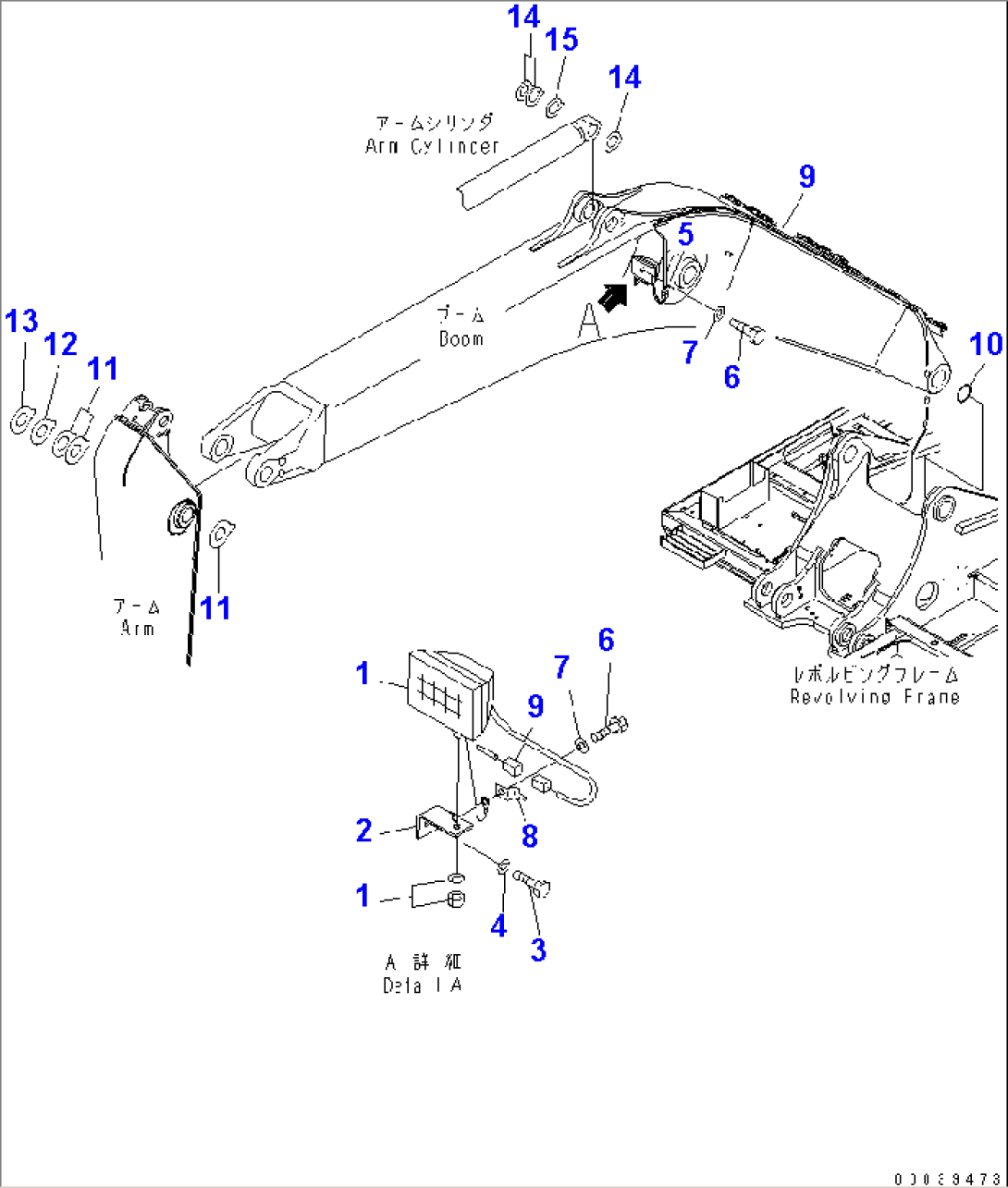

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21T-06-32810 | WORKING LAMP ASS'Y | 30001-@ | |
| 1 | 421-06-23330 | BULB, 70W | 30001-@ | |
| 2 | 20Y-06-21551 | BRACKET | 30001-@ | |
| 3 | 01010-81430 | BOLT | 30001-@ | |
| 4 | 01643-31445 | WASHER | 30001-@ | |
| 5 | 04434-51012 | CLIP | 30001-@ | |
| 6 | 01010-81220 | BOLT | 30001-@ | |
| 7 | 01643-31232 | WASHER | 30001-@ | |
| 8 | 08193-20012 | CLIP | 30001-@ | |
| 9 | 207-06-75161 | WIRING HARNESS | 30001-@ | |
| 10 | 07145-00120 | SEAL | 30001-@ | |
| 11 | 208-70-71531 | SPACER, 2.0MM | 30060-@ | |
| 11 | \0\208-70-71530 | SPACER, 2.0MM | 30001-30059 | |
| 12 | 208-70-71541 | SPACER, 2.5MM | 30060-@ | |
| 12 | \0\208-70-71540 | SPACER, 2.5MM | 30001-30059 | |
| 13 | 208-70-71551 | SPACER, 3.0MM | 30060-@ | |
| 13 | \0\208-70-71550 | SPACER, 3.0MM | 30001-30059 | |
| 14 | 208-70-71651 | SPACER, 1.0MM | 30060-@ | |
| 14 | \0\208-70-71650 | SPACER | 30001-30059 | |
| 15 | 208-70-71661 | SPACER, 2.0MM | 30060-@ | |
| 15 | \0\208-70-71660 | SPACER | 30001-30059 |
