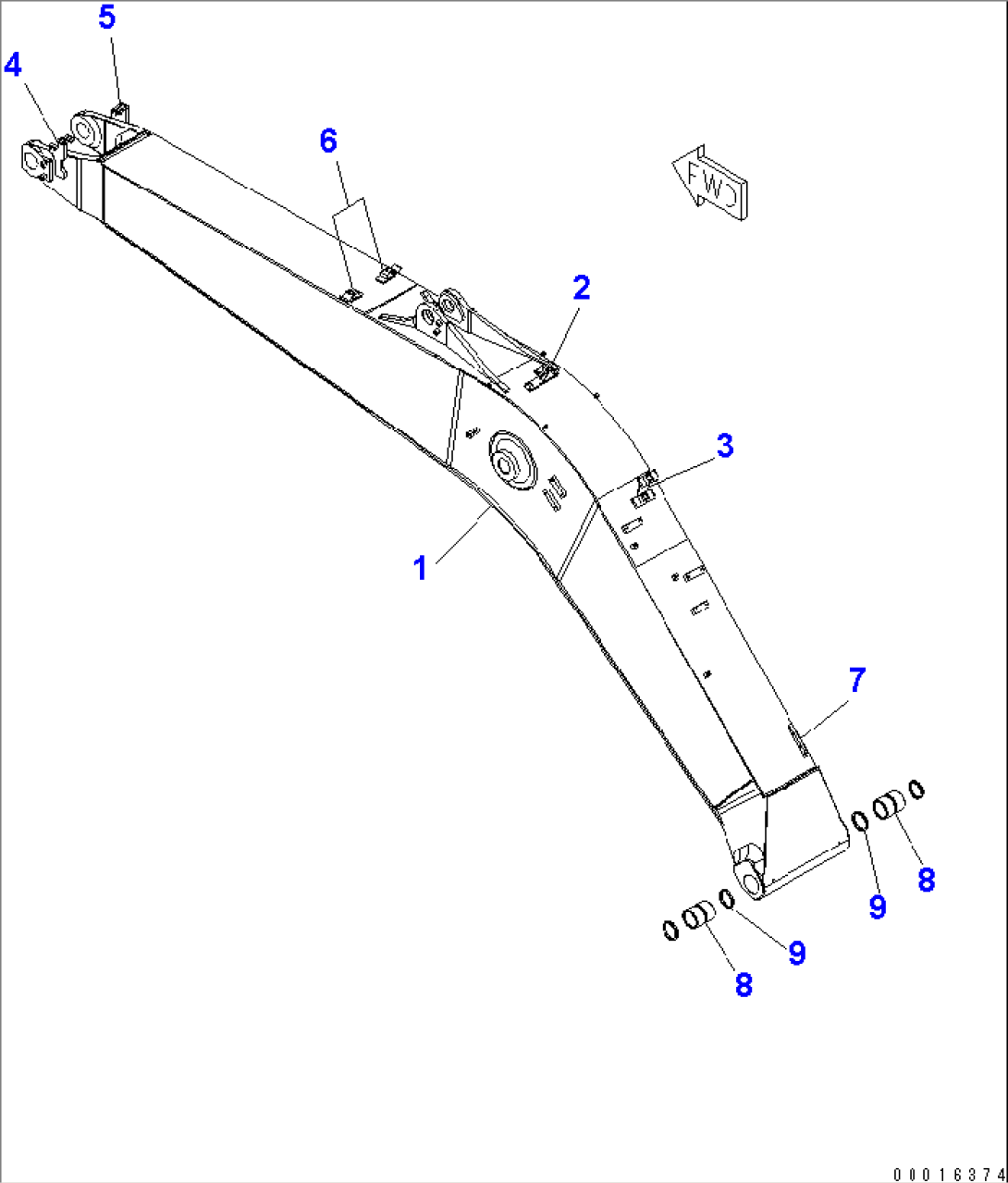

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22U-70-21144NK | BOOM | 30489- | |
| 2 | 20Y-62-33140 | BRACKET (WELDED) | 30001- | |
| 3 | 22U-62-23210 | BRACKET (WELDED) | 30001- | |
| 4 | 22U-62-23293 | BRACKET (WELDED) | 30001- | |
| 5 | 22U-62-23313 | BRACKET (WELDED) | 30001- | |
| 6 | 20Y-62-45371 | BRACKET (WELDED) | 30001- | |
| 7 | 20Y-70-11651 | SEAT (WELDED) | 30001- | |
| 8 | 20Y-70-31512 | BUSHING | 32841- | |
| 8 | \0\20Y-70-31511 | BUSHING | 30489-32840 | |
| 9 | 07145-00090 | SEAL | 30001- |
