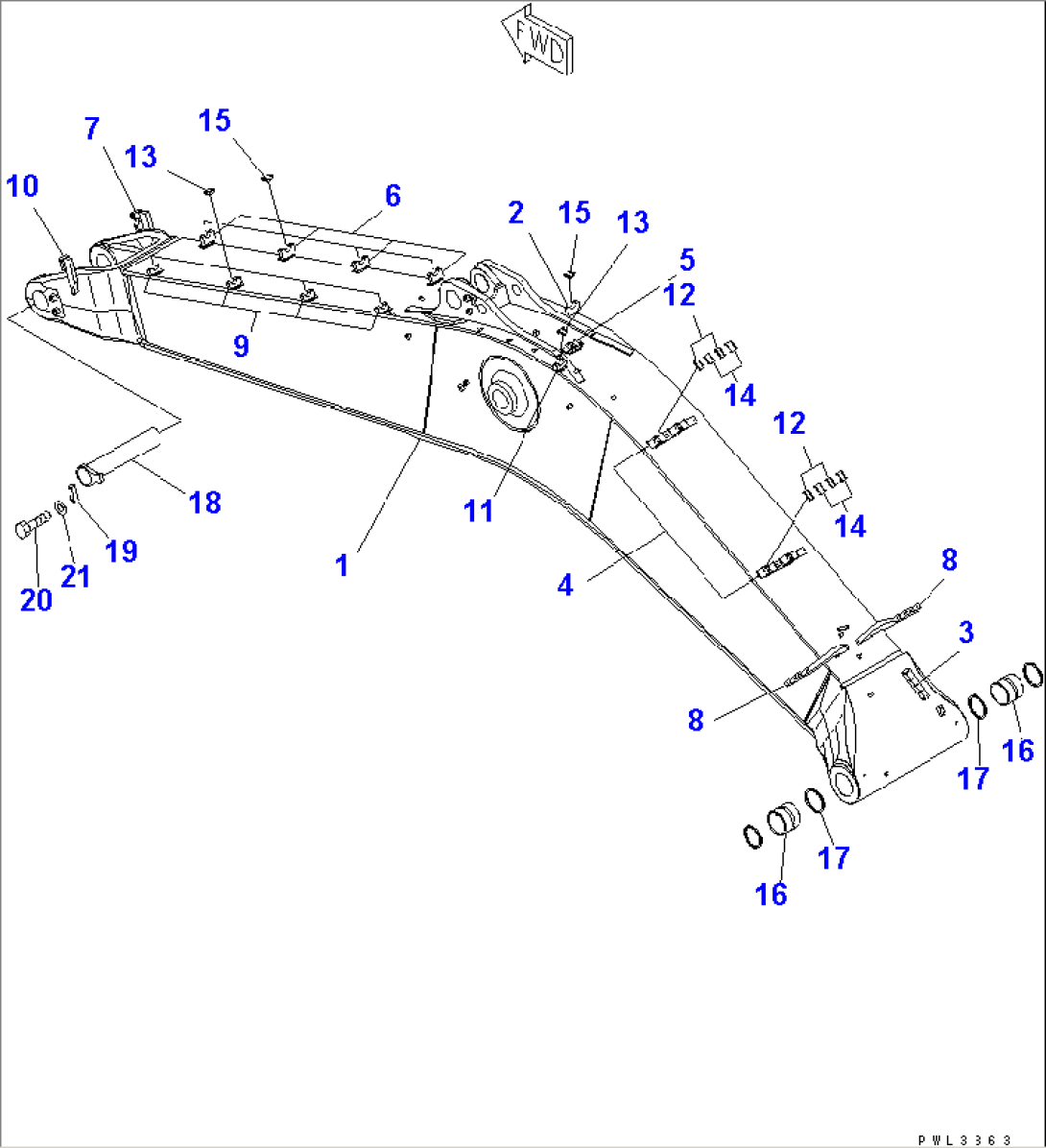

| Item | Part No. | Part Name | Qty | Serial No. |
| 21M-942-0140 | BOOM ASS'Y | 10001- | ||
| 1 | \6\ | BOOM | 11124- | |
| \6\ | BOOM | 11063-11123 | ||
| \6\ | BOOM | 10001-11062 | ||
| 2 | 21M-62-17440 | CLAMP (WELDED) | 10001- | |
| 3 | 209-70-57170 | SEAT (WELDED) | 10001- | |
| 4 | 21M-62-17211 | BRACKET (WELDED) | 10001- | |
| 5 | 21M-62-17221 | BRACKET (WELDED) | 10001- | |
| 6 | 21M-62-17270 | BRACKET (WELDED) | 10001- | |
| 7 | 209-62-53780 | BRACKET | 11063- | |
| 21M-62-17282 | BRACKET (WELDED) | 10155-11062 | ||
| 21M-62-17281 | BRACKET (WELDED) | 10001-10154 | ||
| 8 | 21M-62-17291 | CLAMP (WELDED) | 10001- | |
| 9 | 21M-62-17320 | BRACKET (WELDED) | 10001- | |
| 10 | 207-62-34320 | BRACKET | 11063- | |
| 21M-62-17361 | BRACKET (WELDED) | 10155-11062 | ||
| 21M-62-17360 | BRACKET (WELDED) | 10001-10154 | ||
| 11 | 21M-62-17370 | BRACKET (WELDED) | 10001- | |
| 12 | 21M-62-17230 | SEAT | 10001- | |
| 13 | 205-62-54622 | SEAT | 10001- | |
| 14 | 205-62-73430 | SEAT | 10001- | |
| 15 | 209-62-58520 | SEAT | 10001- | |
| 16 | 21M-70-11271 | BUSHING | 10001- | |
| 17 | 209-72-11261 | SEAL | 10001- | |
| 18 | 21M-70-11240 | PIN | 10001- | |
| 19 | 20Y-70-11190 | PLATE | 10001- | |
| 20 | 01010-81645 | BOLT | 10001- | |
| 21 | 01643-31645 | WASHER | 10001- |
