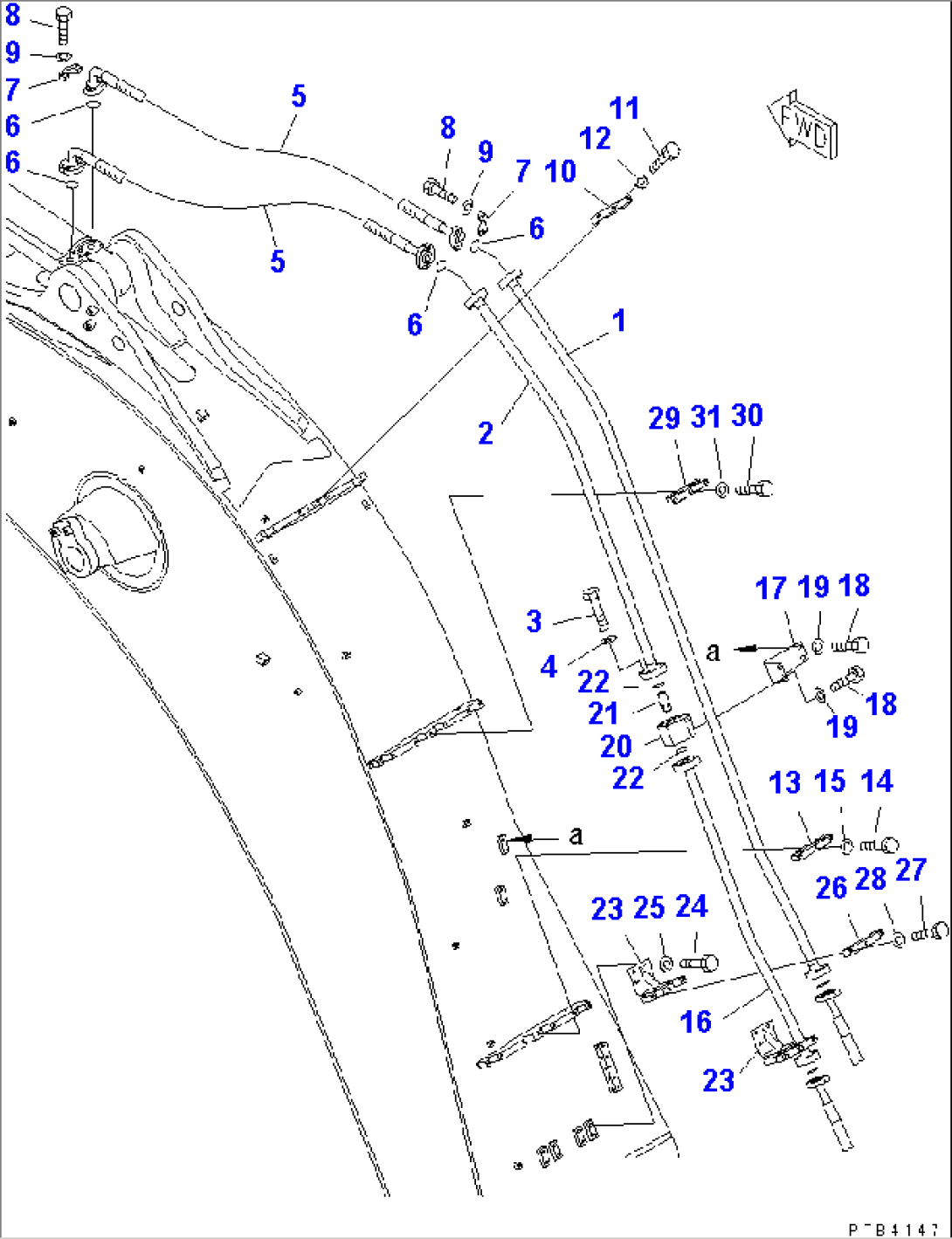

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-62-78540 | TUBE | 10001-@ | |
| 2 | 209-62-78551 | TUBE | 10001-10238 | |
| 3 | 01011-81450 | BOLT | 10001-10238 | |
| 4 | 01643-31445 | WASHER | 10001-10238 | |
| 5 | 07098-01416 | HOSE | 10001-@ | |
| 6 | 07000-13048 | O-RING | 10001-@ | |
| 7 | 07371-51470 | FLANGE | 10001-@ | |
| 8 | 01010-81455 | BOLT | 10001-@ | |
| 9 | 01643-31445 | WASHER | 10001-@ | |
| 10 | 209-62-58531 | CLAMP | 10001-@ | |
| 11 | 01010-81270 | BOLT | 10001-@ | |
| 12 | 01643-31232 | WASHER | 10001-@ | |
| 13 | 209-62-78221 | CLAMP | 10001-@ | |
| 14 | 01010-81260 | BOLT | 10001-@ | |
| 15 | 01643-31232 | WASHER | 10001-@ | |
| 16 | 209-62-78191 | TUBE | 10001-10238 | |
| 17 | 209-62-58290 | BRACKET | 10001-10238 | |
| 18 | 01010-81230 | BOLT | 10001-10238 | |
| 19 | 175-54-34170 | WASHER | 10001-10238 | |
| 209-60-71600 | VALVE ASS'Y | 10001-10238 | ||
| 20 | \6\ | BODY | 10001-10238 | |
| 21 | 209-60-71610 | POPPET | 10001-10238 | |
| 22 | 07000-13048 | O-RING | 10001-10238 | |
| 23 | 209-62-78380 | BRACKET | 10001-@ | |
| 24 | 01010-81230 | BOLT | 10001-@ | |
| 25 | 175-54-34170 | WASHER | 10001-@ | |
| 26 | 209-62-58531 | CLAMP | 10001-@ | |
| 27 | 01010-81270 | BOLT | 10001-@ | |
| 28 | 01643-31232 | WASHER | 10001-@ | |
| 29 | 209-62-78221 | CLAMP | 10001-@ | |
| 30 | 01010-81260 | BOLT | 10001-@ | |
| 31 | 01643-31232 | WASHER | 10001-@ |
