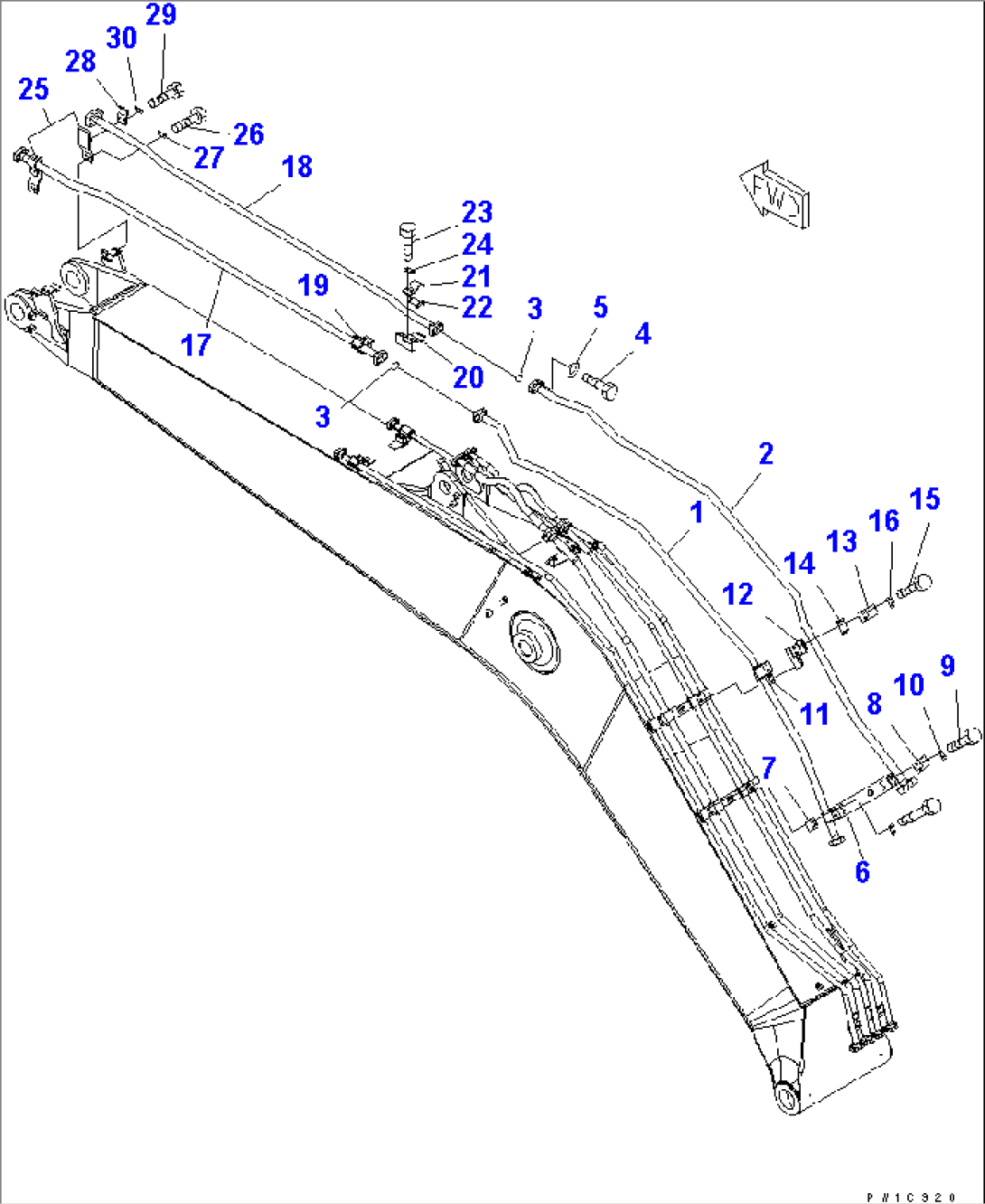

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 206-62-73170 | TUBE | K40001- | |
| 2 | 206-62-73180 | TUBE | K40001- | |
| 3 | 07000-13035 | O-RING | K40001- | |
| 4 | 07372-21040 | BOLT | K40001- | |
| 5 | 01643-51032 | WASHER | K40001- | |
| 6 | 20Y-62-45270 | BRACKET | K40001- | |
| 7 | 20Y-62-45280 | PLATE | K40001- | |
| 8 | 207-62-31330 | CLAMP | K40001- | |
| 9 | 01010-81250 | BOLT | K40001- | |
| 10 | 20Y-62-13450 | PLATE | K40001- | |
| 11 | 20Y-62-45250 | BRACKET | K40137- | |
| 206-62-73610 | BRACKET | K40001-K40136 | ||
| 12 | 20Y-62-45260 | BRACKET | K40137- | |
| 206-62-73620 | BRACKET | K40001-K40136 | ||
| 13 | 207-62-52430 | CLAMP | K40001- | |
| 14 | 205-62-73430 | SEAT | K40001- | |
| 15 | 01010-81230 | BOLT | K40001- | |
| 16 | 20Y-62-13450 | PLATE | K40001- | |
| 17 | 20Y-62-45290 | TUBE | K40001- | |
| 18 | 20Y-62-45310 | TUBE | K40001- | |
| 19 | 20Y-62-45250 | BRACKET | K40137- | |
| 206-62-73610 | BRACKET | K40001-K40136 | ||
| 20 | 20Y-62-45260 | BRACKET | K40137- | |
| 206-62-73620 | BRACKET | K40001-K40136 | ||
| 21 | 207-62-52430 | CLAMP | K40001- | |
| 22 | 205-62-73430 | SEAT | K40001- | |
| 23 | 01010-81230 | BOLT | K40001- | |
| 24 | 20Y-62-13450 | PLATE | K40001- | |
| 25 | 206-62-73590 | BRACKET | K40001- | |
| 26 | 01010-81230 | BOLT | K40001- | |
| 27 | 20Y-62-13450 | PLATE | K40001- | |
| 28 | 207-62-31330 | CLAMP | K40001- | |
| 29 | 01010-81225 | BOLT | K40001- | |
| 30 | 20Y-62-13450 | PLATE | K40001- |
