| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-34110 | BRACKET | 31180- | |
| 2 | 20Y-62-24262 | SEAT | 30001- | |
| 3 | 20Y-62-34120 | BRACKET | 31180- | |
| 4 | 20Y-62-34130 | BRACKET | 31180- | |
| 5 | 20Y-62-34140 | BRACKET | 31180- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc210 6g s/n 30001 up
- Work equipment
- Boom (additional parts for additional piping)(#31180 )
Поиск по каталогу

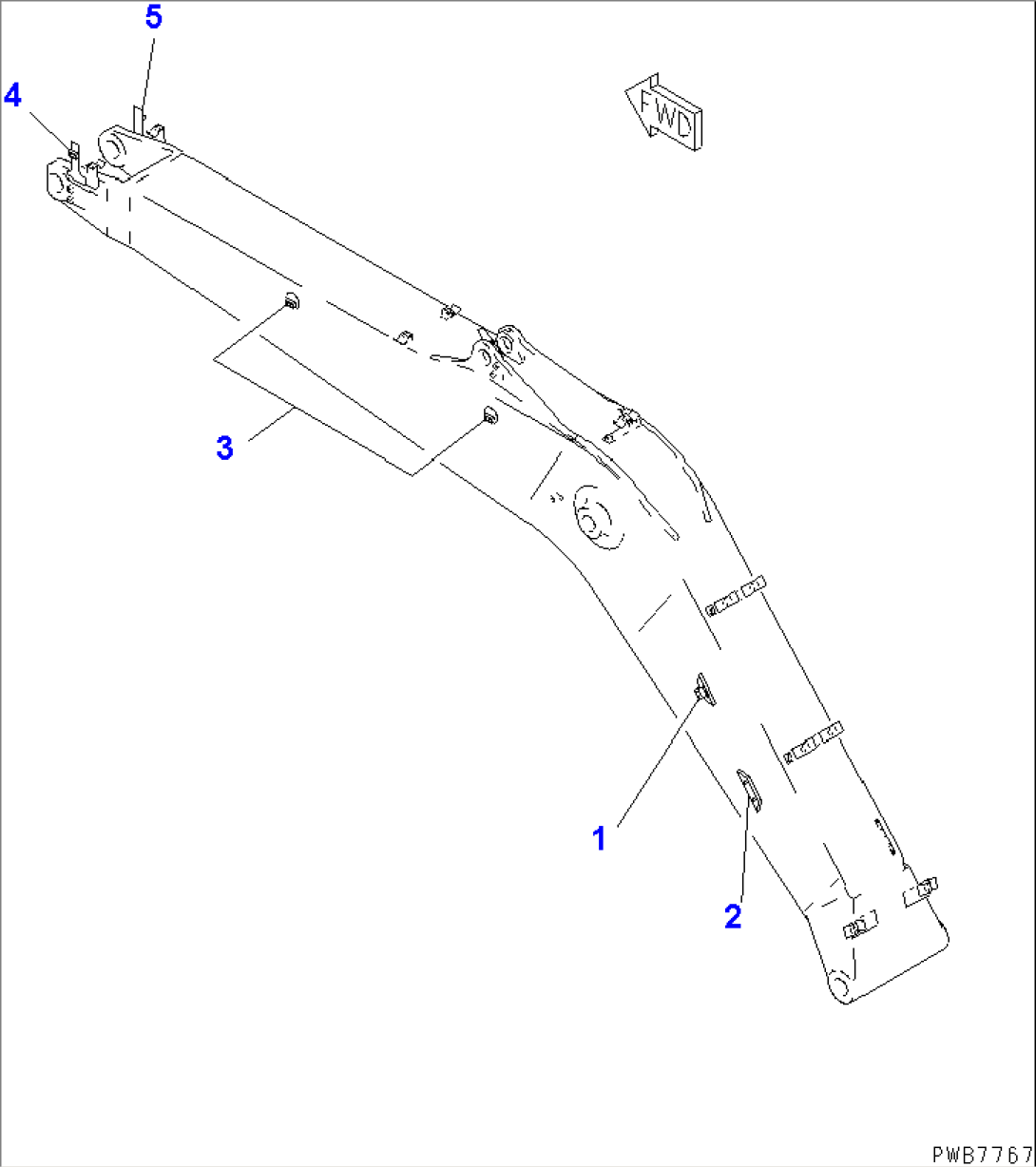

BOOM (ADDITIONAL PARTS FOR ADDITIONAL PIPING)(#31180-)
