| Item | Part No. | Part Name | Qty | Serial No. |
| 1261 591 H91 | BOOM ASSEMBLY, STANDARD | |||
| 1 | 937 960 C3 | BUSHING | ||
| 2 | (NSS) | BOOM | ||
| 3 | 1104 953 C2 | BUSHING |
- Главная
- Каталог запчастей
- Колесные погрузчики
- 510c/515c/515ch s/n p004501 up/p006501 up
- Mounted equipment
- Boom assembly standard for model 510c
Поиск по каталогу

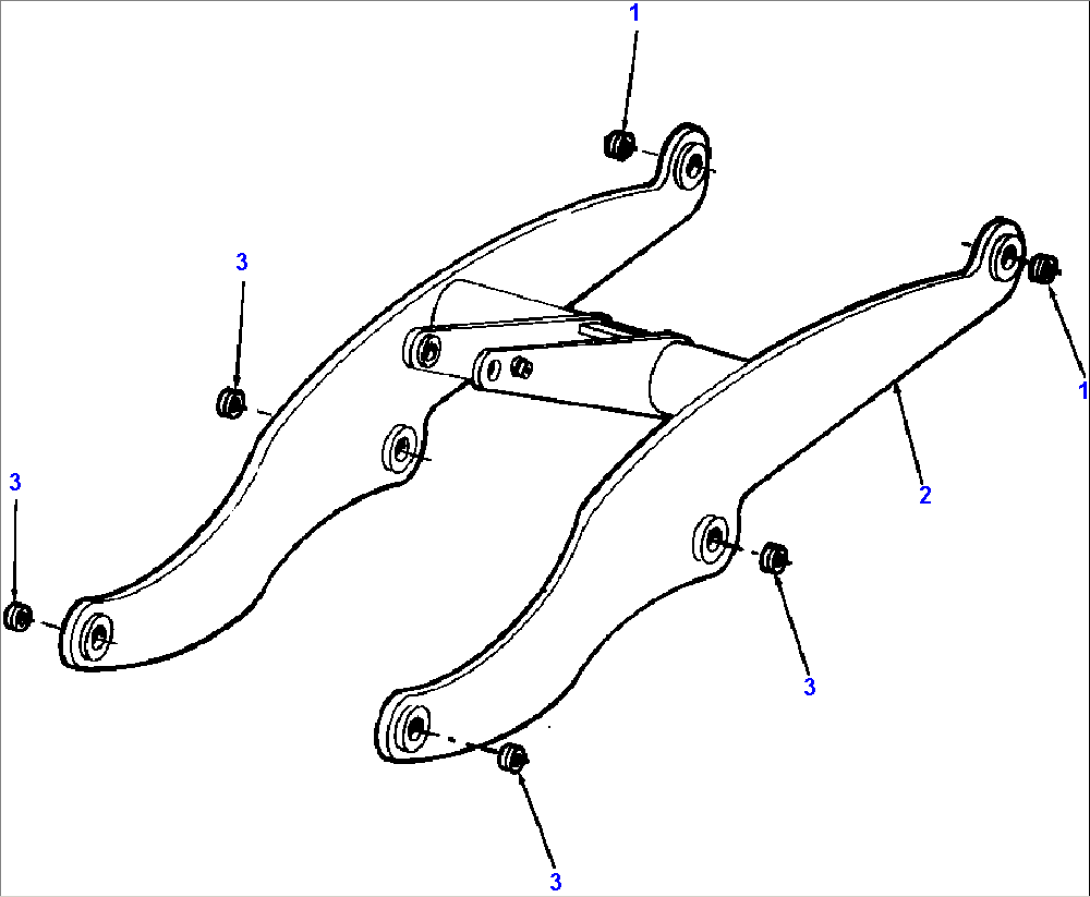

BOOM ASSEMBLY STANDARD - FOR MODEL 510C
