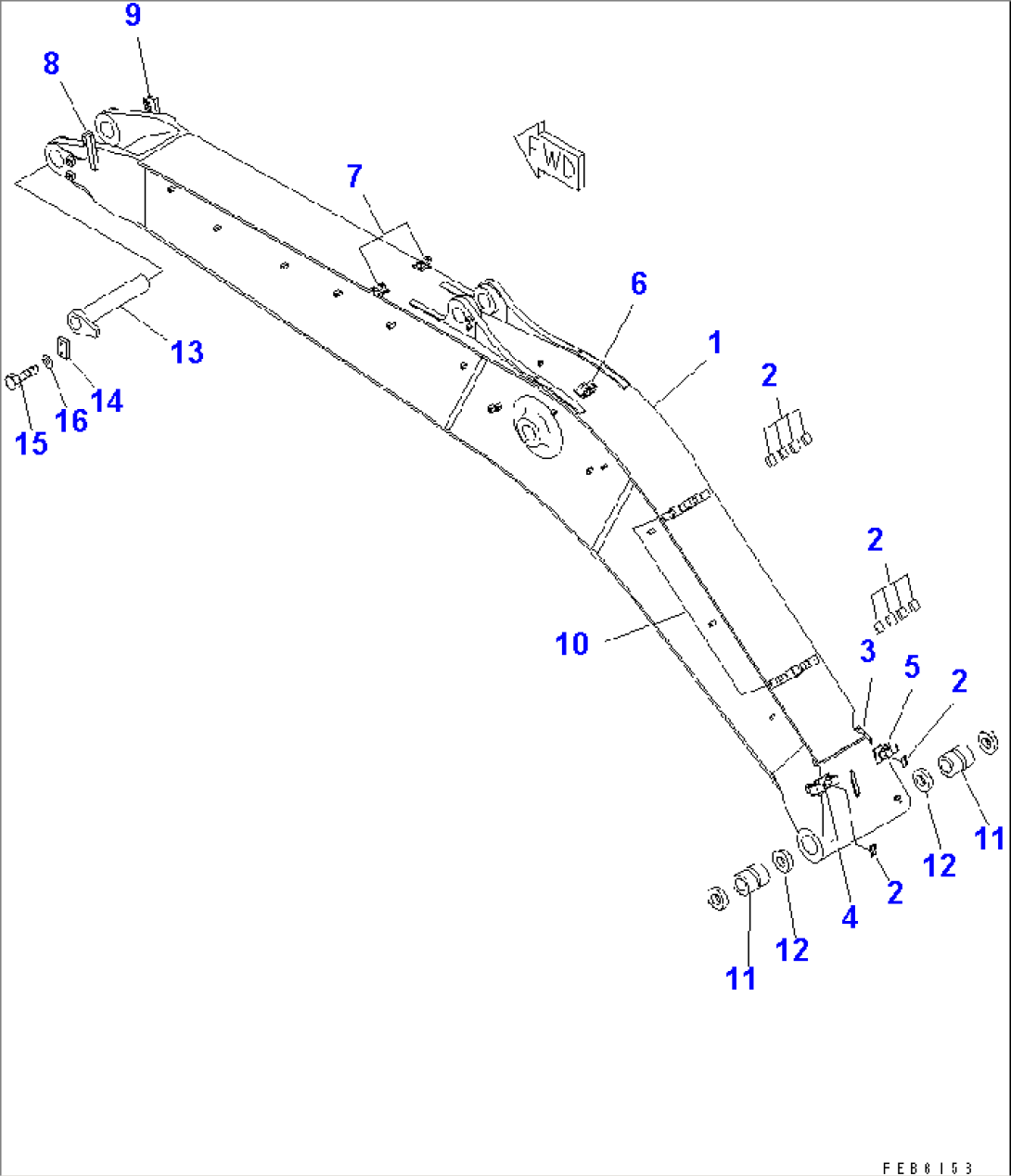

| Item | Part No. | Part Name | Qty | Serial No. |
| 208-70-00351 | BOOM ASS'Y | 32001- | ||
| 208-70-00350 | BOOM ASS'Y | 30001-31999 | ||
| 1 | \6\ | BOOM | 30001- | |
| 2 | 205-62-73430 | SEAT | 30001- | |
| 3 | 205-70-71280 | SEAT | 30001- | |
| 4 | 208-62-64171 | BRACKET | 30001- | |
| 5 | 208-62-64180 | BRACKET | 30001- | |
| 6 | 207-62-54750 | BRACKET | 30001- | |
| 7 | 207-62-54840 | BRACKET | 30001- | |
| 8 | 208-62-34180 | BRACKET | 30001- | |
| 9 | 208-62-34190 | BRACKET | 30001- | |
| 10 | 207-62-54740 | BRACKET | 30001- | |
| 11 | 208-70-61610 | BUSHING | 32001- | |
| 208-70-61511 | BUSHING | 30001-31999 | ||
| 12 | 07145-00120 | SEAL | 30001- | |
| 13 | 208-70-31181 | PIN | 30063- | |
| 208-70-31180 | PIN | 30001-30062 | ||
| 14 | 205-70-61560 | PLATE | 30001- | |
| 15 | 01010-82045 | BOLT | 30001- | |
| 16 | 01643-32060 | WASHER | 30001- |
