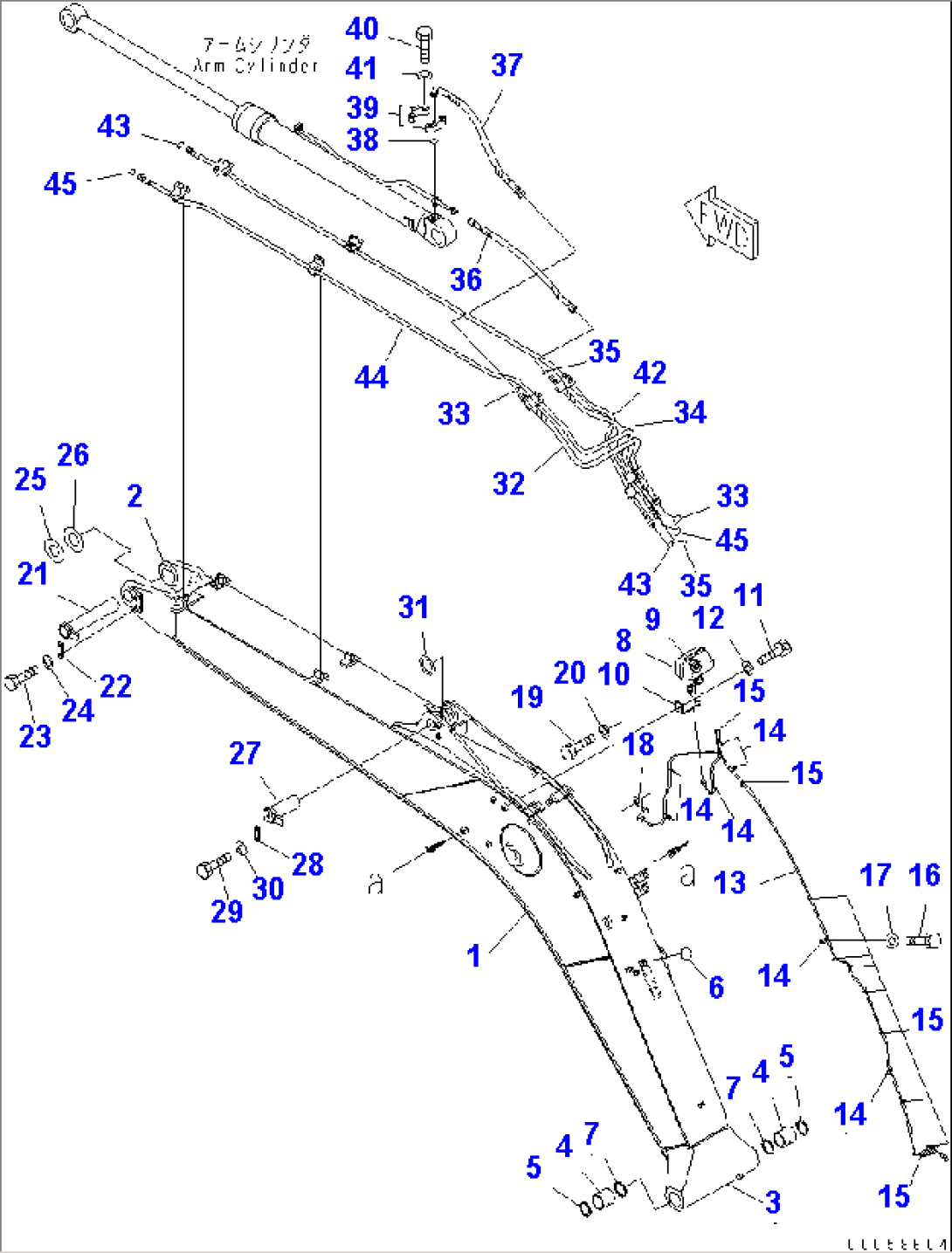

| Item | Part No. | Part Name | Qty | Serial No. |
| 22B-70-00371 | BOOM ASS'Y | 24402- | ||
| 22B-70-00370 | BOOM ASS'Y | 20001-24401 | ||
| 1 | \6\ | BOOM | 24402- | |
| 1 | \6\ | BOOM | 21563-24401 | |
| 1 | \6\ | BOOM | 20001-21562 | |
| 22B-70-00220 | BRACKET ASS'Y | 20001- | ||
| 2 | \6\ | BRACKET (WELDED) | 20001- | |
| 3 | 203-46-41130 | SEAT (WELDED) | 20001- | |
| 4 | 22B-70-23610 | BUSHING | 20001- | |
| 5 | 07145-00070 | SEAL | 22598- | |
| 5 | 22B-70-12230 | SEAL | 20001-22597 | |
| 6 | 21X-54-32350 | CAP | 20001- | |
| 7 | 07145-00070 | SEAL | 22598- | |
| 7 | 22B-70-12230 | SEAL | 20001-22597 | |
| 8 | 22B-06-11690 | WORK LAMP ASS'Y | 20001- | |
| 9 | 421-06-23330 | BULB, 70W | 20001- | |
| 10 | 22B-70-21970 | BRACKET | 20001- | |
| 11 | 01010-81225 | BOLT | 20001- | |
| 12 | 01643-31232 | WASHER | 20001- | |
| 13 | 22B-06-28251 | WIRING HARNESS | 20001- | |
| 14 | 04434-51012 | CLIP | 20001- | |
| 15 | 08034-30521 | BAND | 20001- | |
| 16 | 01010-81020 | BOLT | 20001- | |
| 17 | 01643-31032 | WASHER | 20001- | |
| 18 | 08193-21012 | CLIP | 20001- | |
| 19 | 01010-81020 | BOLT | 20001- | |
| 20 | 01643-31032 | WASHER | 20001- | |
| 21 | 22B-70-22550 | PIN | 24402- | |
| 21 | 22B-70-15220 | PIN | 20001-24401 | |
| 22 | 22B-70-22570 | PLATE | 24402- | |
| 22 | 205-70-66580 | PLATE | 21563-24401 | |
| 22 | 21W-70-11310 | PLATE | 20001-21562 | |
| 23 | 01010-81235 | BOLT | 24402- | |
| 23 | 01010-81230 | BOLT | 20001-24401 | |
| 24 | 01643-31232 | WASHER | 20001- | |
| 25 | 20U-70-31340 | SPACER, 1.0MM | 20001- | |
| 26 | 20U-70-31330 | SPACER, 0.5MM | 20001- | |
| 27 | 203-70-42121 | PIN | 20001- | |
| 28 | 205-70-66580 | PLATE | 21563- | |
| 28 | 21W-70-11310 | PLATE | 20001-21562 | |
| 29 | 01010-81230 | BOLT | 20001- | |
| 30 | 01643-31232 | WASHER | 20001- | |
| 31 | 21Y-70-14830 | SPACER, 1.0MM | 20001- | |
| 32 | 22B-70-21840 | TUBE | 20001- | |
| 33 | 02896-11018 | O-RING | 20001- | |
| 34 | 22B-70-21830 | TUBE | 20001- | |
| 35 | 02896-11015 | O-RING | 20001- | |
| 36 | 22B-62-21520 | HOSE, 780MM | 20001- | |
| 37 | 22B-62-21510 | HOSE, 870MM | 20001- | |
| 38 | 07000-13025 | O-RING | 20001- | |
| 39 | 07371-30640 | FLANGE,SPLIT | 20001- | |
| 40 | 07372-21035 | BOLT | 20001- | |
| 41 | 01643-51032 | WASHER | 20001- | |
| 42 | 22B-70-21820 | TUBE | 20001- | |
| 43 | 02896-11012 | O-RING | 20001- | |
| 44 | 22B-70-21810 | TUBE | 20001- | |
| 45 | 02896-11015 | O-RING | 20001- |
